Big Mouth Bubbler lid - yet another solution, maybe the easiest

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

Joined
Apr 23, 2009
Messages
34,973
Reaction score
14,353
Location
☀️ Clearwater, FL ☀️

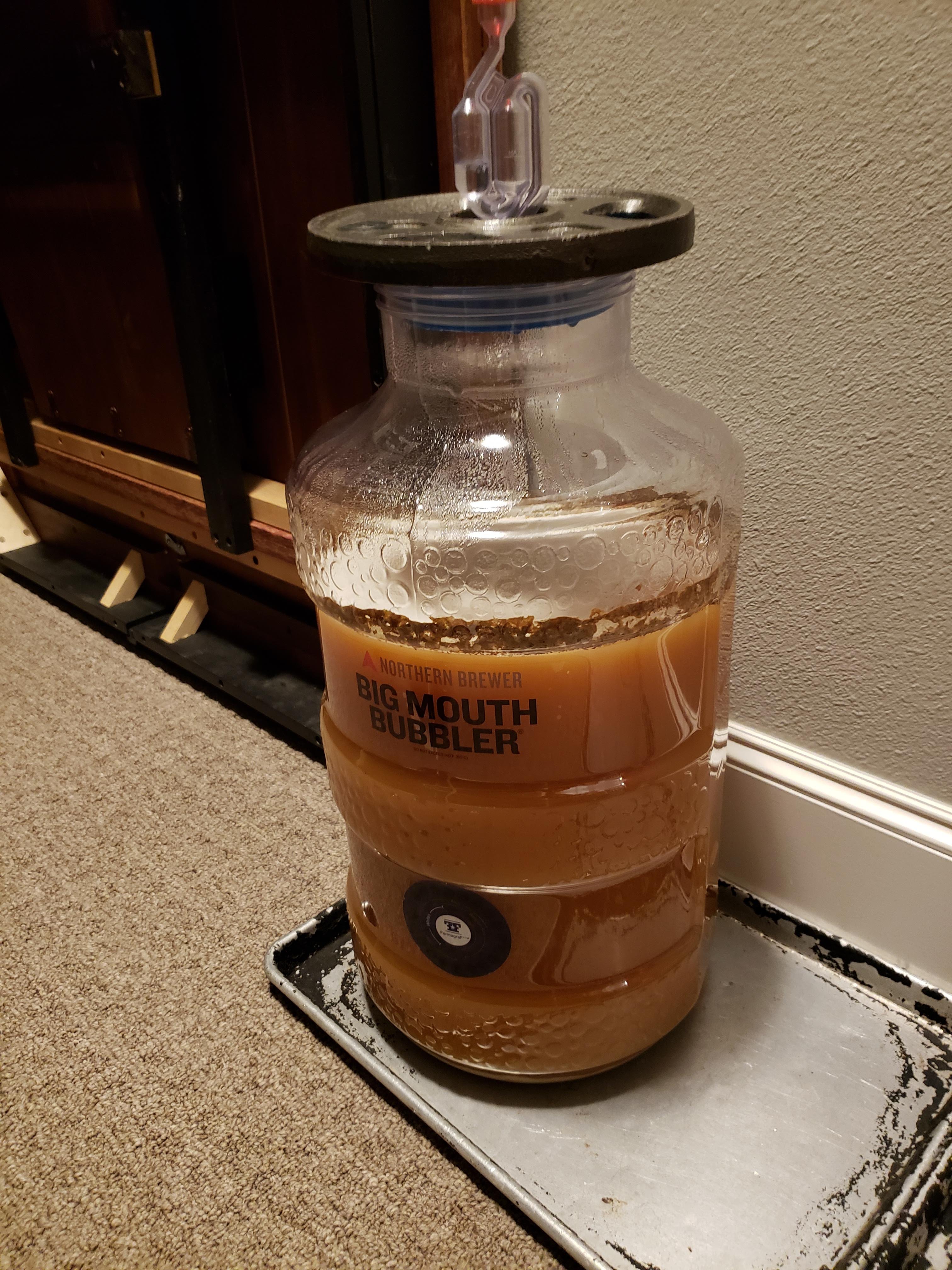

Not sure if this is still a thing that brewers battle. I have a Big Mouth Bubbler with the "universally annoying" lid. Kept popping up. I used a sprinkler donut to keep it down. Just dropped it on there and 100% success. Not sure if sprinkler donuts are available everywhere, but down here in the great free state of FL they are as ubiquitous as.. well, donuts.



ShadowSlayer007

New Member
Joined
Nov 19, 2021
Messages
3
Reaction score
8
You could try putting less water in the airlock, it will lower the pressure required to bubble out. Not by much, but it might be enough.


Maylar

Supporting Member
HBT Supporter
Joined
Jun 21, 2014
Messages
4,561
Reaction score
1,780
Location
New Haven County
Big Mouth. I love it and hate it. 6 gallons of just about anything weighs like 75 pounds. But it's crystal clear, and easy to clean.

You're right, Shadow, a full airlock takes a surprising amount of CO2 pressure to bubble through. A concrete donut might well make that simple. My method has employed masking tape...


OP
passedpawn
Joined
Apr 23, 2009
Messages
34,973
Reaction score
14,353
Location
☀️ Clearwater, FL ☀️
You're right, Shadow, a full airlock takes a surprising amount of CO2 pressure to bubble through. A concrete donut might well make that simple. My method has employed masking tape...
In theory, a 1" column of water in the airlock can be displaced by only 0.04 psi of pressure. (1 foot of water is 0.433psi).

Assuming that opening of my big mouth bubbler is 4", and the donut is 5#, it would take about 0.4psi to life the donut. (5#/ 2"^2).

So, the airlock will bubble way before lid moves. Of course, after doing the math, I'm sure I'll go out there now and find the donut blown off.


phbern

Supporting Member
HBT Supporter
Joined
Feb 14, 2020
Messages
35
Reaction score
11

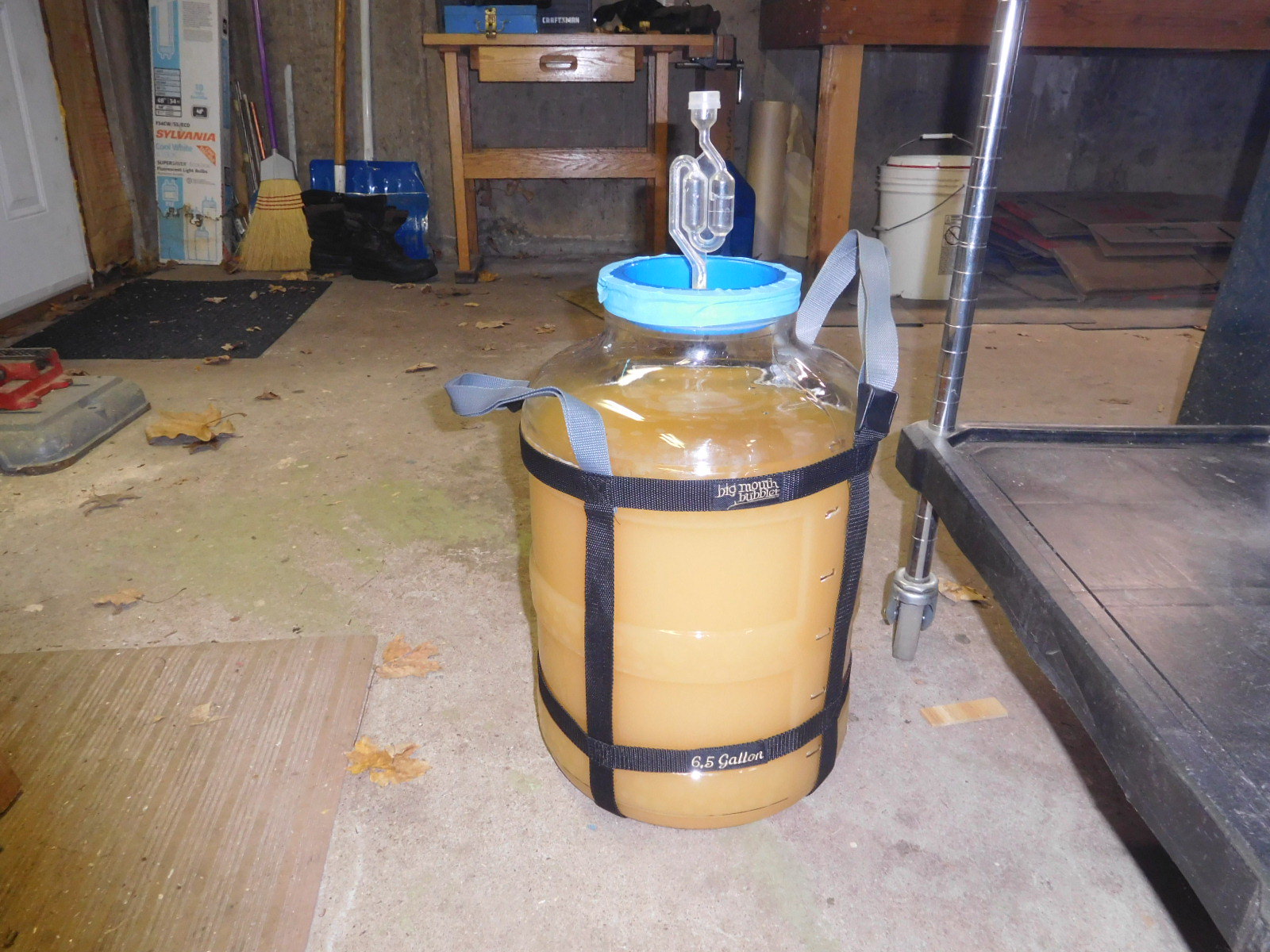

I have the carrying strap for the Big Mouth. It flips over the top and locks down and keeps the lid from popping up It also has a hole so the airlock fits as well. And you can use it to carry the thing around as well. Works just fine.



PCABrewing

Recreational Brewer
Joined
Oct 28, 2021
Messages
327
Reaction score
338
Big Mouth. I love it and hate it. 6 gallons of just about anything weighs like 75 pounds. But it's crystal clear, and easy to clean.

You're right, Shadow, a full airlock takes a surprising amount of CO2 pressure to bubble through. A concrete donut might well make that simple. My method has employed masking tape...

View attachment 751628
Agree on the utility and ease of cleaning of the Big Mouth.

I used a couple tabs of Gorilla Tape when i was still using it.
The Sprinkler Doughnut is a creative idea too.


In theory, a 1" column of water in the airlock can be displaced by only 0.04 psi of pressure. (1 foot of water is 0.433psi).

Assuming that opening of my big mouth bubbler is 4", and the donut is 5#, it would take about 0.4psi to life the donut. (5#/ 2"^2).

So, the airlock will bubble way before lid moves. Of course, after doing the math, I'm sure I'll go out there now and find the donut blown off.
Is the doughnut concrete? Hopefully it clears the glass on the way down if it ever does hit .4 PSI


kartracer2

Supporting Member
HBT Supporter
Joined
Jul 28, 2009
Messages
445
Reaction score
406
Location
Iowa,(westcentral)
Why doesn't some design geek make a Tri-clamp like gizzmo to fix what seems to be the biggest flaw the BMB has?
I went with Fermonsters (and are quite happy with them) because of that loosy lid situation. I wouldn't think that it would need to be as robust as a tri clamp, thinking plastic of some kind as the actual sealing is done with the gasket on the lid, right?. The main pieces could probably could be 3-D printed. Just spit balling here.
Cheers, :mug:
Joel B.


lawlthom

New Member
Joined
Dec 10, 2021
Messages
1
Reaction score
0
Why doesn't some design geek make a Tri-clamp like gizzmo to fix what seems to be the biggest flaw the BMB has?
I went with Fermonsters (and are quite happy with them) because of that loosy lid situation. I wouldn't think that it would need to be as robust as a tri clamp, thinking plastic of some kind as the actual sealing is done with the gasket on the lid, right?. The main pieces could probably could be 3-D printed. Just spit balling here.
Cheers, :mug:
Joel B.
I think this is what you are looking for: Link


kartracer2

Supporting Member
HBT Supporter
Joined
Jul 28, 2009
Messages
445
Reaction score
406
Location
Iowa,(westcentral)
I think this is what you are looking for: Link
Yeah, those look like they would work well. A little spendy at $3 a clip. Not quite what I was thinking of though. Looking at at the diagrams of the top/lid area, my idea might not be as good as I thought it would be either. Oh well, I'll stick with the Fermonsters.
Thanks for your time and Cheers, :mug:
Joel B.


balrog

Supporting Member
HBT Supporter
Joined
Nov 26, 2013
Messages
4,496
Reaction score
4,888
I guess I got lucky. Mine stays put. I empathize, as I can't imagine the annoyance at my system of purging a keg with ferm CO2 gasses, if the lid popped up to say "howdy" all the time.


PCABrewing

Recreational Brewer
Joined
Oct 28, 2021
Messages
327
Reaction score
338
Does anybody know if the Fermonster screw-on lid will fit the Big Mouth Bubbler? The glass version seeme to have threads but they start a bit low on the collar. But the plastic version the threads start right at the edge. Unfortunately I don't know the diameter of the Fermonster opening. Morebeer sells them for $5, nice if it fits.
I don't use mine any longer so I'm not about to buy a lid just to check.


PCABrewing

Recreational Brewer
Joined
Oct 28, 2021
Messages
327
Reaction score
338
The Fermonster neck is around 4" id. and 4.5" outside of the threads (+/- a smidge). Roughly 5 TPI. The BMB looks to be bigger than all that.
I'll measure mine and post just for records sake.
I measured the BMB and the opening ID is ~5.25", Thread OD is ~5.75"

Last edited:

PCABrewing

Recreational Brewer
Joined
Oct 28, 2021
Messages
327
Reaction score
338
I have the carrying strap for the Big Mouth. It flips over the top and locks down and keeps the lid from popping up It also has a hole so the airlock fits as well. And you can use it to carry the thing around as well. Works just fine.

I have the carrying strap for the glass six-gal, I need to take a closer look. I did have to order it separately though. I bought it a few years ago.
I just clicked on the link you provided, that strap is different than mine. It looks like a nice improvement.
