BIAB efficiancy question

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

AviatorTroy

Well-Known Member
Joined
Apr 7, 2010
Messages
84
Reaction score
2
Location
Cincinnati
I'm thinking about simplifying and trying a no sparge batch next time around. I've been getting about 78% efficency with a batch sparge. How much should I need to boost my grain bill due to the slight efficiancy losses due to skipping the sparge? And do you just mash with your total water amount and not worry about the fact that it's going to be an extrememly thin mash?


tre9er

Well-Known Member
Joined
Jan 25, 2012
Messages
4,370
Reaction score
246
Location
Lincoln
Yes, it's a full-volume mash. If you stir well and squeeze the bag intensely I think you can still get pretty good efficiency. Of course, it wouldn't hurt to have a gallon of sparge water handy to just pour over the bag while it's suspended from the BK.


wilserbrewer

BIAB Expert Tailor
HBT Sponsor
Joined
May 25, 2007
Messages
11,231
Reaction score
2,767
Location
New Jersey
Basicly the difference will be the slight due to the higher levels of sugars that are left absorbed into the grain. As said above, squeezing will minimize this, but as a guess if you just drain the bag well, maybe a couple, three points, not much. I just let the bag drain well and call it good, I have attempted squeezing, but it can be messy and not worth it as I am brewing indoors. If you want to boost your grain bill by 3-5%, it should be a wash I'd imagine.


wolfman_48442

Well-Known Member
Joined
Mar 10, 2011
Messages
531
Reaction score
13
Location
Fraser
I don't know if it's truly logrithmic, but it's certainly not a linear decline in efficiency as your OG increases.
A 1.050 wort may lose 3-5 points, a 1.075 beer might lose 15 points.


stux

Well-Known Member
Joined
Sep 26, 2011
Messages
96
Reaction score
3
Location
Sydney
Full volume BIAB efficiency is directly dependent on the liquor:grain ratio in the mash.

Not sure of the exact curve, but as your l:g ratio drops the mash gravity increase, and as the grain absorption remains constant (by weight) you lose relatively more sugars. This is basically a "lautering loss"

Think it's time I ran the numbers and made a chart :)

OP
A

AviatorTroy

Well-Known Member
Joined
Apr 7, 2010
Messages
84
Reaction score
2
Location
Cincinnati
Thanks, Im just going to have to try it out and see what i get, Ill start by boosting grains about 5%


stux

Well-Known Member
Joined
Sep 26, 2011
Messages
96
Reaction score
3
Location
Sydney
Full volume BIAB efficiency is directly dependent on the liquor:grain ratio in the mash.

Not sure of the exact curve, but as your l:g ratio drops the mash gravity increase, and as the grain absorption remains constant (by weight) you lose relatively more sugars. This is basically a "lautering loss"

Think it's time I ran the numbers and made a chart :)

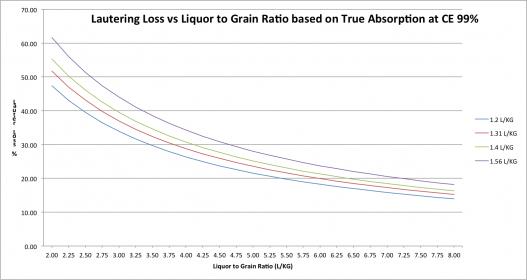

I ran the numbers and made a chart ;)

My discussion on this chart : http://www.biabrewer.info/viewtopic.php?f=74&t=1481

Basically, I've graphed the Lautering Loss as a percentage vs Liquor to Grain Ratio for four True Absorption values.

1.2 L/KG = BIAB Heavy Squeeze
1.3 L/KG = BIAB Medium Squeeze
1.4 L/KG = BIAB Light Squeeze
1.56 L/KG = Traditional Mash Tun

As modelled using my Conversion Efficiency formulas, which have been quite successful in modelling the BIAB process

This is for No Sparge. You can see why a sparge makes a big difference when the L:G is low.

Lauter Loss.jpg
