Bayou Classic SP-10

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

joejaz

Well-Known Member
Joined
Sep 23, 2007
Messages
373
Reaction score
4
Location
New Jersey
Anybody have this burner for a keggle, it's the one with the round cooking surface. Looking to modify it for use with keggle. Keggle too unstable on cooking surface. Was thinking of bolting L-brackets to sides, any suggestions. Bayou has a square one but that comes witha 10psi this is a 20psi burner.


SwAMi75

Banned
Joined
Mar 6, 2005
Messages
2,458
Reaction score
10
Location
Midwest City, OK
As you say, it'll have to be modified to accommodate a keggle. I used the same one with a charcaol grill grate on top of it for a while. It worked OK--heated well, but was very loud and used a lot of gas.

I switched to the square one with the 10psi regulator, and couldn't be happier. Seems to heat just as well, but it's much more stable, quiet, and easy on propane. Got it for $50 at Lowes.


Funkenjaeger

Well-Known Member
Joined
May 8, 2007
Messages
1,595
Reaction score
18
Location
Nashua, NH
Well you can put the 20PSI regulator onto a different burner, as long as the actual burner element can handle the higher pressure - the SP-10 seems to have the standard cone-shaped burner element in it that the majority of other burners use, so it shouldn't be a problem to find a compatible one.

With that said, I sure do enjoy the heat output of my KAB5, and it holds a keggle just fine :D
FYI, the burner Mustangj included a picture of above is a KAB4, not a KAB5, and the KAB4 supposedly does not hold a keggle very well. The KAB5 has sturdier/bigger legs.


Lil' Sparky

Cowboys EAC
Joined
Feb 6, 2006
Messages
3,952
Reaction score
91
Location
Honolulu, HI
Here's how I modified mine. :D



See it fits a keg just fine now. ;)



But seriously, I agree that those stands aren't good for a keggle. I have seen some people who have laid a larger grill grate over the top and then set the keggle on top of that. That seems like a cheap workable solution.


Mustangj

Well-Known Member
Joined
Oct 16, 2006
Messages
1,315
Reaction score
4
Location
Royal Oak
Funkenjaeger said:
Well you can put the 20PSI regulator onto a different burner, as long as the actual burner element can handle the higher pressure - the SP-10 seems to have the standard cone-shaped burner element in it that the majority of other burners use, so it shouldn't be a problem to find a compatible one.

With that said, I sure do enjoy the heat output of my KAB5, and it holds a keggle just fine :D
FYI, the burner Mustangj included a picture of above is a KAB4, not a KAB5, and the KAB4 supposedly does not hold a keggle very well. The KAB5 has sturdier/bigger legs.

I used the wrong pic.


OP
joejaz

joejaz

Well-Known Member
Joined
Sep 23, 2007
Messages
373
Reaction score
4
Location
New Jersey
Spoke to Bayou Classic, says the sp 10 is better suited for brewing then the
sq 14 with the square frame. Problem is stabiliy of keg on it. Found a 22 in round grill at Lowes for $12.49 which seems to have remedied the problem. Can bolt it to burner frame or just rest it on top, seems very stable


SwAMi75

Banned
Joined
Mar 6, 2005
Messages
2,458
Reaction score
10
Location
Midwest City, OK
joejaz said:
Spoke to Bayou Classic, says the sp 10 is better suited for brewing then the
sq 14 with the square frame. Problem is stabiliy of keg on it. Found a 22 in round grill at Lowes for $12.49 which seems to have remedied the problem. Can bolt it to burner frame or just rest it on top, seems very stable
Not quite sure I understand that.....the SP-10 is 14" in diameter, while a keg is 15". The square one is 16"X16"....how could the one that is too small be more stable? I've used them both, and the square one is way more stable.

No matter, sounds like you are using yours just like I used mine--with a grill grate on it. It gets the job done!

OP
joejaz

joejaz

Well-Known Member
Joined
Sep 23, 2007
Messages
373
Reaction score
4
Location
New Jersey
SwAMi75 said:
Not quite sure I understand that.....the SP-10 is 14" in diameter, while a keg is 15". The square one is 16"X16"....how could the one that is too small be more stable? I've used them both, and the square one is way more stable.

No matter, sounds like you are using yours just like I used mine--with a grill grate on it. It gets the job done!
Maybe I didn't say it right. Now that I put the grate on it , it is more stable than before. I would have liked to have the bigger square frame but it comes with a smaller burner ( 10 PSI) and the square frame doesn't have the wind protector arround it. How is the smaller burner compared to the SP 10? And does the SP 10 make a lot of noise, I didn't use it yet.


SwAMi75

Banned
Joined
Mar 6, 2005
Messages
2,458
Reaction score
10
Location
Midwest City, OK
joejaz said:
Maybe I didn't say it right. Now that I put the grate on it , it is more stable than before. I would have liked to have the bigger square frame but it comes with a smaller burner ( 10 PSI) and the square frame doesn't have the wind protector arround it. How is the smaller burner compared to the SP 10? And does the SP 10 make a lot of noise, I didn't use it yet.
The SP-10 is really loud--at least mine was. The square one is much quieter, uses less propane, and seemed to heat just as well to me. The lack of a wind guard is the biggest drawback, but I don't recall it ever causing me any problems.


phatuna

Well-Known Member
Joined
Mar 4, 2009
Messages
793
Reaction score
5
Location
San Diego
Has anyone found any other remedies to modify the sp10 for keggle use? my sp10 arrives today, looking forward to using it. But I will be using it with a keggle which is too big for the round cooking surface.

Any other remedies are much appreciated. I was thinking of using a couple of cinder blocks to hold the weight of the keggle but would rather find a better solution. The bbq grate is not bad, it just seems a little flimsy and would hate to have this fall over during a boil.


Whiskey

Well-Known Member
Joined
Jul 29, 2007
Messages
715
Reaction score
14
Location
Granville, Ohio

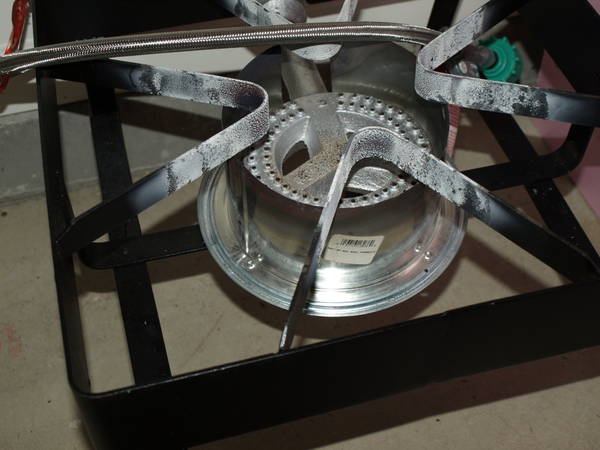

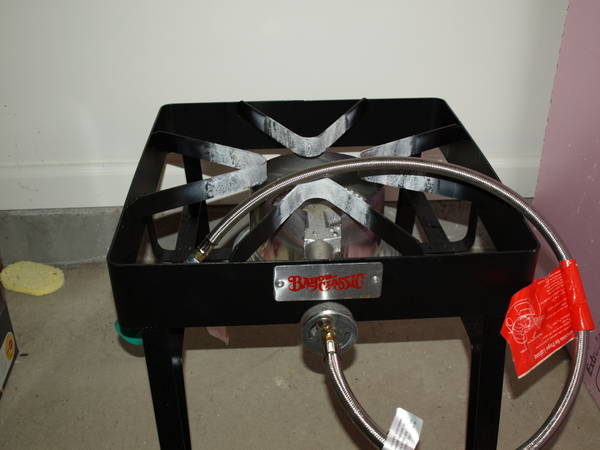

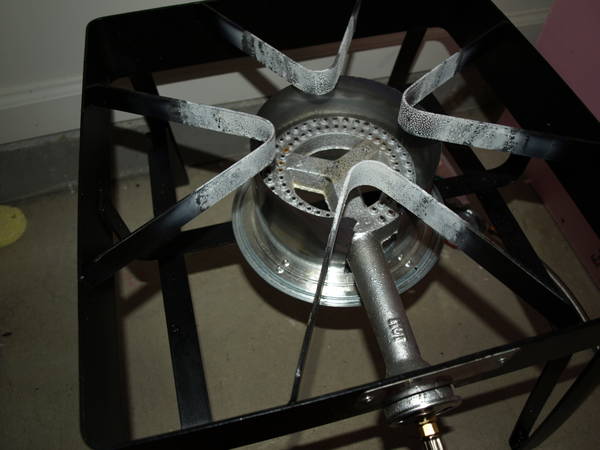

I have the SQ14 and love it. An easy wind fix is check home depot or lowes for a 5"-6" thimble collar in the heating duct area. It looks kind of like an open top-top hat. I just cut a "u" shaped hole on the side, unscrewed the burner, put the collar around it and remounted the burner, works like a champ. I'll take a picture when I get home from work.


Brewmasters Warehouse

Well-Known Member
Joined
Mar 9, 2007
Messages
1,504
Reaction score
17
Location
Atlanta, GA
Without modifications the best burner for brewing with keggles is the Bayou Classic KAB6. It is basically a KAB4 pictured earlier in the thread but is more sturdy and wider base to fit larger pots such as a keggle. You will have about 2 inchs of space on all four posts with the keggle centered. The burner is awesome, though the pot sits up high it heats up very quickly. It does go through propane faster than smaller burners.

I use one and it works great. I do keep a tub of water handy as the propane tank will start to freeze up after a while, which really hurts the BTU output.

Ed


FSR402

Well-Known Member
Lifetime Supporter
Joined
May 30, 2007
Messages
2,811
Reaction score
30
Location
Jenison, MI
Without modifications the best burner for brewing with keggles is the Bayou Classic KAB6. It is basically a KAB4 pictured earlier in the thread but is more sturdy and wider base to fit larger pots such as a keggle. You will have about 2 inchs of space on all four posts with the keggle centered. The burner is awesome, though the pot sits up high it heats up very quickly. It does go through propane faster than smaller burners.

I use one and it works great. I do keep a tub of water handy as the propane tank will start to freeze up after a while, which really hurts the BTU output.

Ed
I use the SQ-14 and have two of them mounted in one stand. With this I do 50 gallon boils. Once it starts to boil I drop down to either one burner or both just turned WAY DOWN.

For the money, easy on LP and the base the SQ-14 just can't be beat.


Catt22

Well-Known Member
Joined
Jan 20, 2009
Messages
4,998
Reaction score
79
I use the SQ-14 and have two of them mounted in one stand. With this I do 50 gallon boils. Once it starts to boil I drop down to either one burner or both just turned WAY DOWN.

For the money, easy on LP and the base the SQ-14 just can't be beat.
+1 The SQ-14 is an excellent burner and the stand is large and very stable. IMO, it's one of the best choices for home brewing. I like that the flame level is very controllable from full blast to very low. Good choice for a direct fired mash tun. Most any burner will work for a HLT or BK, but flame control is very important for a MT if heating directly. It's also inexpensive at about $50.


MacBruver

Well-Known Member
Joined
Feb 20, 2009
Messages
612
Reaction score
7
Location
Orange County, CA
Ah! I had lost this thread. I was looking for the name (and picture) of the doodad to use as a flame shield for the SQ14. Woohoo!

P.S.- love my SQ14. It is great even without the shield.


Hardtack

Well-Known Member
Joined
Feb 19, 2009
Messages
138
Reaction score
5
Location
Delaware

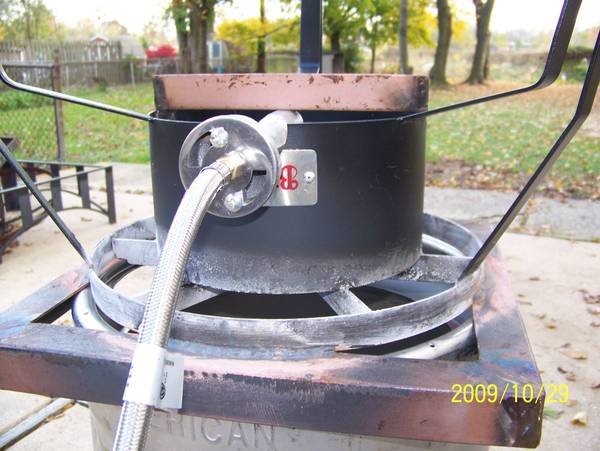

I modified mine using bedframe angle (free).

4 pieces cut 16 in. long at a 45 degree angle

if you have a welder it was really easy







it works quite well , i had to do it,i got it for $10 at a garage sale.
