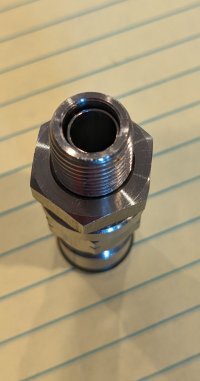

I've received some ball lock gas and beverage fittings, all of which have dip tubes like shown where they don't extend down past the threads. What's the point of this?

I'm installing these in a cap for a Fermonster and want to attach a floating dip tube, but there's no exposed part to do so. I could cut down a full length dip tube, but don't have an extra for that. I could also cut the threads off leaving just enough for the nut to engage. That should give me about 1/4" exposed tubing.

Am I missing something with the standard product shown?

Edit: gas post is shown, but the beverage posts are just the same.


Attachments

  • PXL_20221006_134137264.jpg
    267.5 KB · Views: 0

Broken Crow

Ale's what cures 'ya
Joined
Oct 12, 2020
Messages
729
Reaction score
779
I just bought some floating diptubes kits that include a 3" tube, but careful which one you choose; The Kegland kit for the Fermzilla does not have the diptube and I think some of the online dealers have moved over to using the shorter gas tube for both bulkheads. You can check for dealer links through this thread: Turning your Fermonster into a complete closed transfer system for cheap!


day_trippr

Structural Duct Tape Sales Engineer
Joined
May 31, 2011
Messages
38,850
Reaction score
22,070
Location
Stow, MA
I imagine they include those stubby "dip tubes" so one has some place to stick the necessary O-ring...

Cheers!

OP
OP
T

timsch

Supporting Member
HBT Supporter
Joined
Jan 29, 2009
Messages
146
Reaction score
17
Location
Houston
Thanks. I just cut the excess threads off. Left about what I expected, which was less tubing than I'd have liked to connect to, but was just enough.
