any rule of thumb for gas line ID on a 3 gallon keg setup?

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
Just can't seem to fine what I need for a 3 gallon keg, I see there are several thicknesses and can't quite figure out why and what I would want. I want to use with carbonator lid as well.


CascadesBrewer

Supporting Member
HBT Supporter
Joined
Mar 24, 2013
Messages
2,031
Reaction score
1,834
Location
VA, USA
The ID of the gas line does not matter much, but 1/4" and 5/16" are common. If you already have equipment or are purchasing equipment, check the size of the barbs. Most of mine is 1/4" ID tubing on 1/4" barbs, with a few 5/16" barbs. 5/16" tubing seems more "standard". The ideal might be 1/4" tubing on 5/16" barbs for a nice tight fit.

OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
thank you, I guess 1/4 on Co2 and 5/16 on N2, based on the Brewrite regulators I have. but I was just curious if they vary per keg size as the ideal ID.
so im gonna order them like my regulators are.

The ID of the gas line does not matter much, but 1/4" and 5/16" are common. If you already have equipment or are purchasing equipment, check the size of the barbs. Most of mine is 1/4" ID tubing on 1/4" barbs, with a few 5/16" barbs. 5/16" tubing seems more "standard". The ideal might be 1/4" tubing on 5/16" barbs for a nice tight fit.


TestTickle

Supporting Member
HBT Supporter
Joined
May 1, 2018
Messages
178
Reaction score
126
Location
NW Indiana
The size of the keg doesn't matter. I have a mixture of 2.5, 3 and 5 gallon kegs. All gas lines are 5/16" and all liquid lines are 3/16".

OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
Don't forget you have to calculate line length as well. Too short of a serving line and you have foam city!
I guess I was specifically talking about gas line. instead of a liquid line it will be direct tapped for now.

OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
can't believe it would take a 1/4 wall tubing for gas lines, thats a pretty thick line. am I missing something?
would be for the gas side only. would need a 6ft line

OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
That's 1/8" wall... ;)

I use 5/16" ID tubing for gas lines (on 5/16 barbs). Secured with Oetiker clamps for 100% leak free.
Sorry, ok yes that’s what I’m gonna do, as soon. As I find barb ball lock fittings with disconnects


camonick

Mediocre brewer... Expert drinker
HBT Supporter
Joined
Oct 25, 2018
Messages
3,715
Reaction score
19,071
Location
Northeast CO
Just can't seem to fine what I need for a 3 gallon keg, I see there are several thicknesses and can't quite figure out why and what I would want. I want to use with carbonator lid as well.
Is this a new system you’re setting up? If so, consider MFL disconnects, Duotight push to connect fittings and EVABarrier lines. Inside diameter and length is irrelevant on the gas side. The size of the keg doesn’t matter either.

OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
Is this a new system you’re setting up? If so, consider MFL disconnects, Duotight push to connect fittings and EVABarrier lines. Inside diameter and length is irrelevant on the gas side. The size of the keg doesn’t matter either.
It’s a new setup, but the N2 regulator has 5/16 barb and co2 has 1/4 barb. Not sure why they’re different, they are Brewrite brand.


camonick

Mediocre brewer... Expert drinker
HBT Supporter
Joined
Oct 25, 2018
Messages
3,715
Reaction score
19,071
Location
Northeast CO
It’s a new setup, but the N2 regulator has 5/16 barb and co2 has 1/4 barb. Not sure why they’re different, they are Brewrite brand.

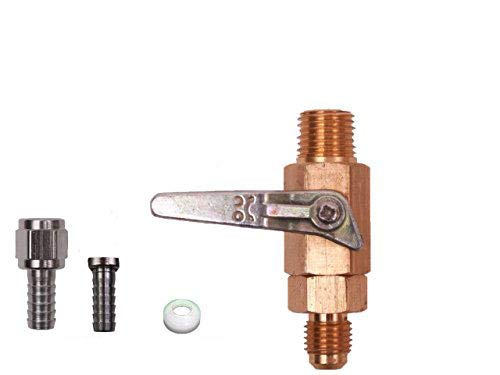

I don’t know what your budget is, but a few modifications in the beginning might allow more options down the road. You could replace the barbs with a shutoff like this, (you won’t need the barbed fittings)
or a plain 1/4” NPT X 1/4” MFL like this.
Just make sure you know if they are right or left hand threads… most likely right.

OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
I guess they have the shut off w/barb and check valve. links below.


I don’t know what your budget is, but a few modifications in the beginning might allow more options down the road. You could replace the barbs with a shutoff like this, (you won’t need the barbed fittings)
View attachment 756468
or a plain 1/4” NPT X 1/4” MFL like this.
View attachment 756469
Just make sure you know if they are right or left hand threads… most likely right.


Golddiggie

Well-Known Member
Joined
Dec 14, 2010
Messages
13,755
Reaction score
1,887
Location
Living free in the 603
Whenever possible, I get regulators with MFL connections to the tubing. Makes it easier to remove them for different reasons. Such as when I'm carbonating and some beer flows back into the tubing. With MFL connections, you can simply disconnect the line, either clean it, or change it out, and then connect everything back. I've also purchased additional shutoff/check valves to retrofit regulators that came with barb connections. Always good to have a couple/few spares on hand too.


Bobby_M

Vendor and Brewer
HBT Sponsor
Joined
Aug 3, 2006
Messages
26,097
Reaction score
5,806
Location
Whitehouse Station
I don't know what "direct tapped" means. Do you mean mounting faucets directly on to the black QD with no hose at all? That really doesn't work well at all unless the facuets are flow control type.

OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
I don't know what "direct tapped" means. Do you mean mounting faucets directly on to the black QD with no hose at all? That really doesn't work well at all unless the facuets are flow control type.
yes that's what I meant. show me which faucet I would need for good performance? it's only gonna be that way for the first few batches, figured I'll look for a tower and line later on.
just bought this. please say I did a good job, :)


camonick

Mediocre brewer... Expert drinker
HBT Supporter
Joined
Oct 25, 2018
Messages
3,715
Reaction score
19,071
Location
Northeast CO
This is the only one I’ve seen that advertises that it works with a flow control faucet.


OP
OP
S

spatter

Active Member
Joined
Jun 30, 2014
Messages
43
Reaction score
14
This is the only one I’ve seen that advertises that it works with a flow control faucet.

Thanks, I ordered one and also their faucet with spring and a bunch of other stuff.
