Another DIY Keg/Fermenter Washer

HomeBrewTalk.com - Beer, Wine, Mead, & Cider Brewing Discussion Community.

Help Support Homebrew Talk:

HiImBrian

Well-Known Member
Joined
Aug 15, 2014
Messages
273
Reaction score
64

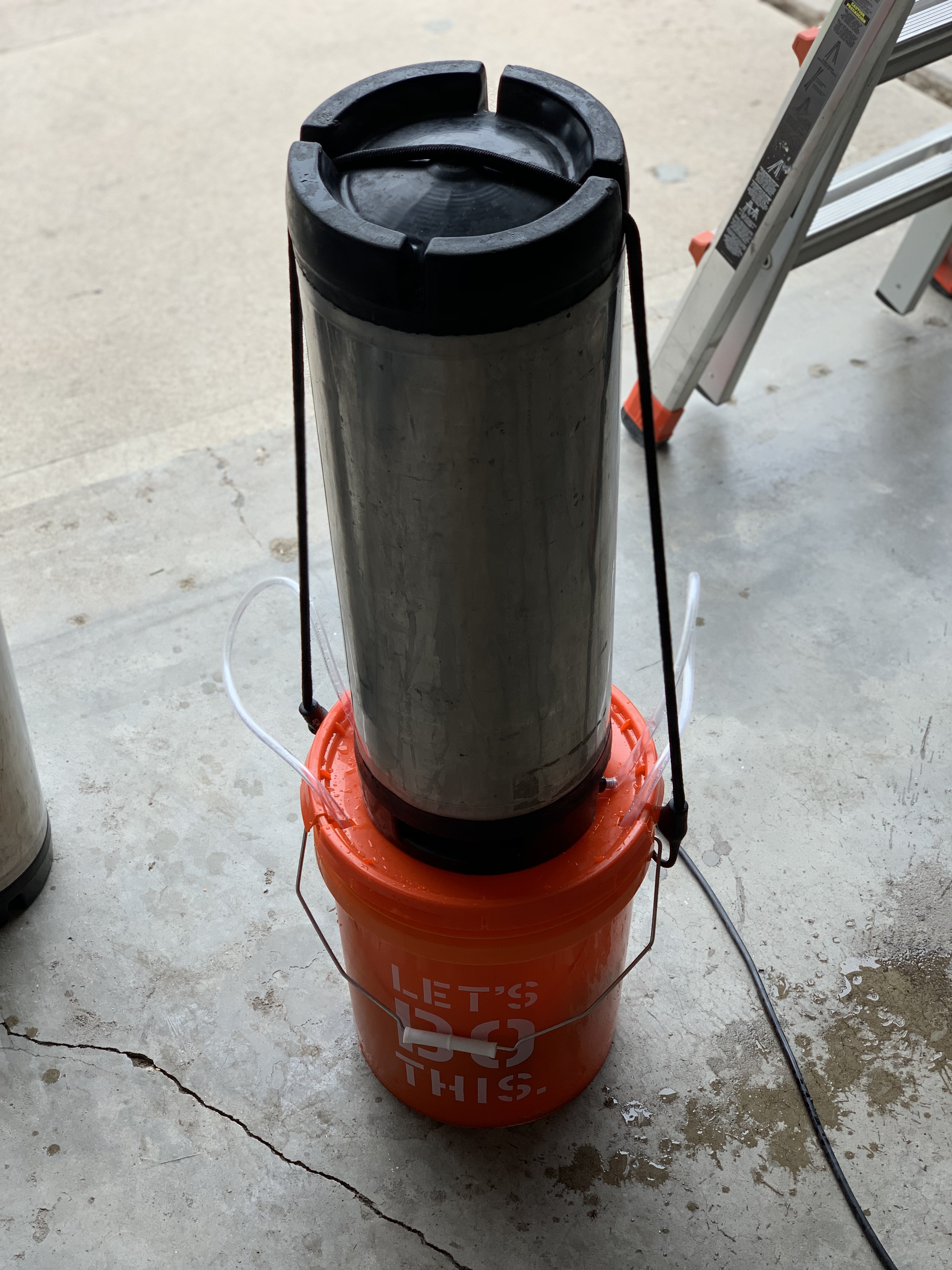

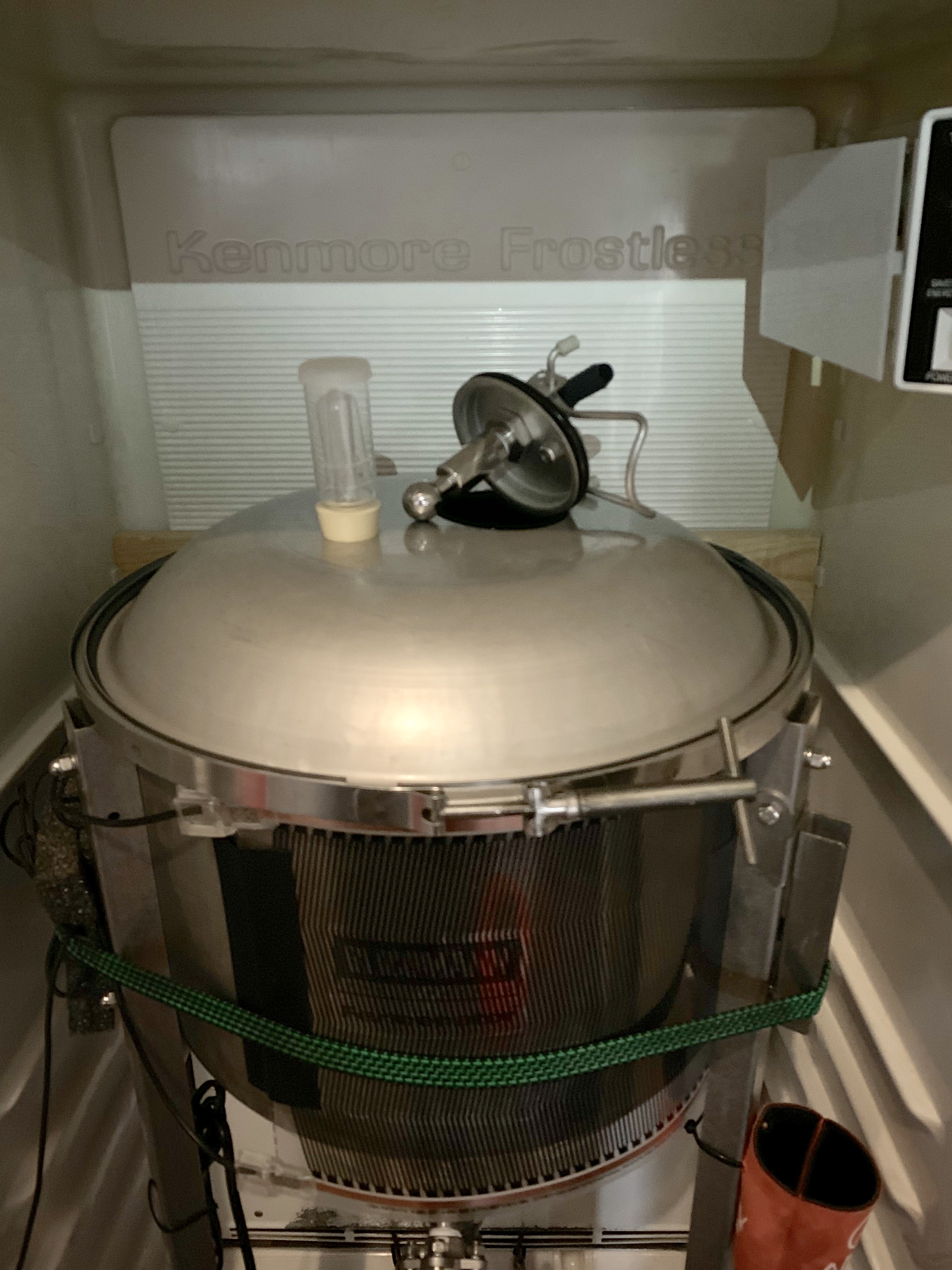

Like many of you have already done, I've now done also. Simple sump pump design with PVC fittings that allow for cleaning the IN and OUT posts as well as a threaded fitting so that I can remove the spray ball for cleaning the fermenter as well.

Notes:
- I purchased a 1/2HP sump pump with a float switch. I would advise against this as a standard bucket doesn't allow the float to operate as it should. I've just zip tied the switch in the ON position.
- Not all PVC needs to be glued together. I left mine so that I could detach the long vertical shaft and fit everything in the bucket.


Attachments

Jayjay1976

Bubblegazer
Joined
Nov 26, 2016
Messages
3,568
Reaction score
2,877
Location
Chicago
Nice setup! I can't make out the part numberr of that fernco drain coupling, what size is it?


gromitdj

Well-Known Member
Joined
Feb 7, 2008
Messages
1,545
Reaction score
527
Location
Orange County
Nice setup! I can't make out the part number of that fernco drain coupling, what size is it?
Trying to help you out here... I downloaded and cropped the image, and the best I can make out is Model #: 1002-43

Which matches a reducing coupler on their website.



Hope that helps.

OP
HiImBrian

HiImBrian

Well-Known Member
Joined
Aug 15, 2014
Messages
273
Reaction score
64
I'll try to remember to double check and confirm, but I'm pretty sure it's a 4"x6" adapter.


ILMSTMF

Well-Known Member
Joined
Jan 17, 2014
Messages
488
Reaction score
134
@HiImBrian I hope you'll be able to provide a parts list and some instructions, despite the age of this post. This looks like a great build that I'd like to replicate.

Here's what I have already:
• 1/3HP sump pump, no float switch. No switch at all, actually.
• 1 1/4" NPT or 3/4" GHT outlet on the pump
• PVC primer and glue
• 1/2" female thread NPT spray ball
• various lengths of bungee cord
• various diameter vinyl tubing. I have the most of 3/16" ID tubing

What I don't have:
• handyman skills lol
• liquid and gas QDs
• worm clamps although I don't see any in your build.

What I would like to know:
• what size fittings I would need.
• what are those plastic elbows that supply the QD lines (that attach to the keg posts)?
• how to measure and cut the bucket lid?

Thanks!
