Another Brutus System is Born

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

SurlyBastard

Active Member
Joined
Jul 23, 2010
Messages
41
Reaction score
0
Location
Baltimore, Maryland
Certainly jealous, I can't convince the wife to go AG yet because we do not have the space. But someday soon I will be in your same shoes with a brew in my hand and brewing my first AG on my own setup ^^


CereousBrewer

Well-Known Member
Joined
Mar 4, 2009
Messages
64
Reaction score
1
Location
Rim Country Arizona
You have something to be very proud of, not to mention you can use it to make beer!

I'm having someone fabricate a stand for me as I don't weld and have a question about your burner mounts. I brew outside and it is often windy on brew day. Do you have any problems with wind interfering with the burners, causing them to blow out?

Again, darn nice rig.

OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City
I brew in my garage for that very reason. When I ran tests on the gas sytem outdoors I had a lot of problems with the flames on the burners blowing out and the pilot flame as well. I would recommend 360 degree wind shields on your rig for brewing outside. Good luck with the build and thanks for the nice comments. I was rather suprised to see this thread get bumped.

OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City
Got some new upgrades for the brewery. After a many brews on the new system there were some changes that needed to be made.

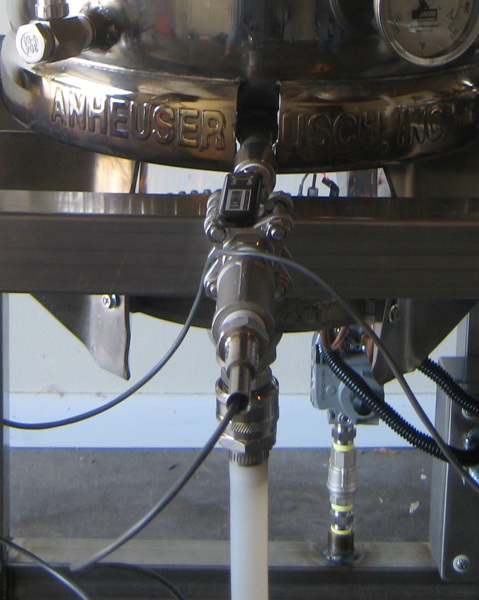

I moved the probe thermowells from the outlet on the kettles to the top of the pump. I was having a problem in the mashtun with stuck sparges. I tried everything from a higher grain/water ratio to rice hulls and still was getting them. I finally decided that the problem was the location of the thermowell. This is what it looked like before.

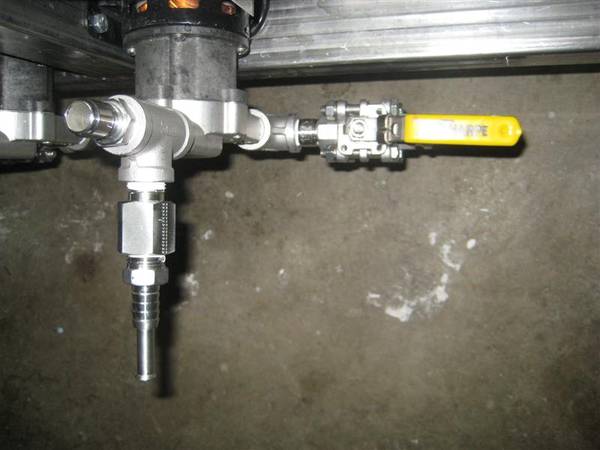

What was happening was that the thermowell was taking up so much space in the T fitting. Pieces of grain and whatnot kept getting stuck and blocking the flow. Not to mention that the 90 degree angle wasn't helping the liquid move easily. So I decided to move them to the inlet of the pump head. There is much less restriction and it will work ten times better than before. Also pictured are my new stainless steel Chugger pump heads. I got them for $40.00 each on ebay because they had some rough threads. I didn't have any problem with the threads and they were well worth the $ I paid for them. They came fully assembled and ready to install.





OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City

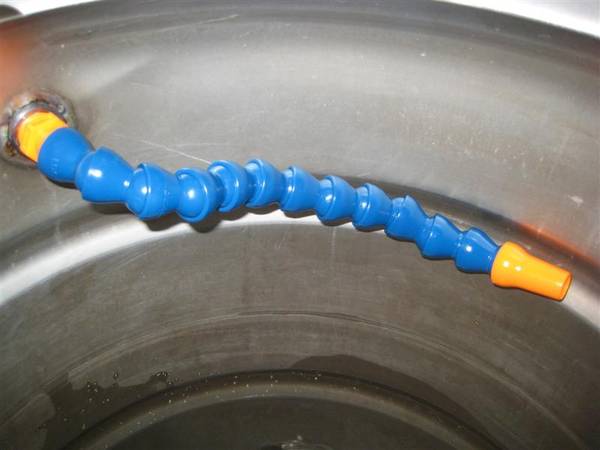

The next problem I discovered was the return tube going back into the mashtun. It wasn't adjustable and the wort was splashing back into the tun. As a result there was a lot of foaming and I want to get the best head retention possible since the proteins only form once. I needed something that was food safe, temperature safe, and adjustable. I had remembered The Pol, hope all is well with that guy, had used Locline for his return hose. So I ordered one from McMaster and it was here the next day, as usual!


I also was having a problem with reading the temperature of the wort going into my fermenter. I was previously using the Blichmann Thrumometer but the darn thing was such a hassel on brew days. I had tons of problems; it was way too small and restriced wort flow, when submerged in sanatizer the temperature sticker got a bunch of air bubbles in it, the temperature doesn't go down to lager temps, I had to use two seperate pieces of hose. Below is a picture for those who are unfamiliar with it. I own a few Blichmann products and this one was by far the worst I've purchased, sorry John!

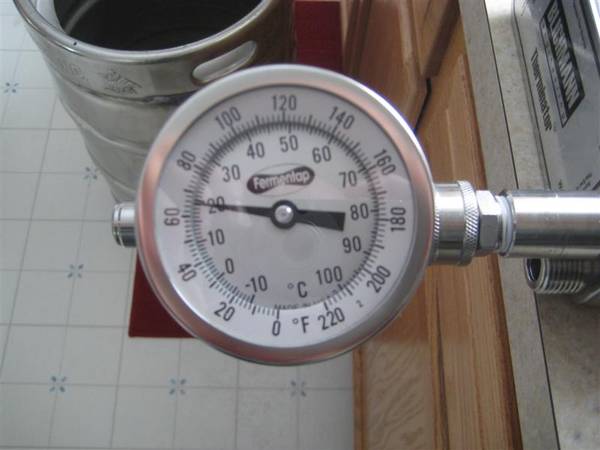

So I went to MoreBeer, who I've tried to shy away from the past six months, and they had an inline thermometer with stainless quickdisconnects. Well, since my entire system is outfitted with SS QD's I went for it.



OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City

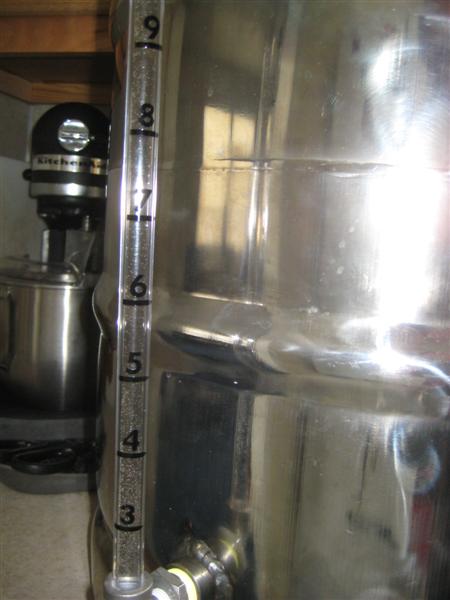

Last but not least are my sight glasses, the reason I was trying to avoid MoreBeer. I purchased three of their 16" sight glasses with adapters, $65.00 EACH!, about two years ago. At first I thought they were great as they looked like all stainless construction, nice protective enclosure around the glass. What could possibly go wrong right? EVERYTHING!


First off, I find out that the casings aren't even stainless steel. I soaked the sight glass in starsan and when I pulled it out the thing was no longer shiney. It was black and had a very rough feel to it. I'm assuming it was plated with some sort of finish, either way it was garbage. I also had lots of problems with the threads on the top caps. I stripped out the other two taking them off after brewing to clean out the sightgage and adapter. These things were junk and were way too expensive.

That brings me to last week. I remember that BobbyM had some sightgages that he was selling on his website http://www.brewhardware.com/ I purchased three of his sightglasses for less than the cost of 1 MoreBeer sightgage. BobbyM's quality is far superior and I LOVE LOVE LOVE the vinyl number markers. They look super sharp and my half blind father in-law won't have a hard time seeing the number markings on brewday.




rtrevino

Well-Known Member
Joined
Apr 29, 2008
Messages
343
Reaction score
4
Location
San Antonio
Where did you use the half couplings and where did you use the full? I'm getting ready to build 3 new keggles and I need some ideas.

OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City
Where did you use the half couplings and where did you use the full? I'm getting ready to build 3 new keggles and I need some ideas.
Use the half couplings anywhere you don't need to screw something on the inside such as a sightglass, thermometer.

Use the full couplings where you want something on both the inside and outside such as a ball valve on the outside and dip tube on the inside.


Hawgbranch

Well-Known Member
Joined
Jan 25, 2008
Messages
312
Reaction score
0
Location
Shreveport
Shweaty, that is sweet setup. Do you have plans drawn up for your frame? I am about to have one built and I like yours, a lot.

Thanks...

OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City
Shweaty, that is sweet setup. Do you have plans drawn up for your frame? I am about to have one built and I like yours, a lot.

Thanks...
Post #31 has the cuts for the stainless and the burner bracket dimensions. I used to have sketchup documents but I think I trashed them after the build was complete.


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
very nice... I can't believe how quickly stuff adds up.

-=Jason=-


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
well I am not exactly sure what type of system I will end up with, probably a RIMs. I have 2 keggles now.

just the thought of what I have spent thus far on my first batch is crazy expensive. going with a keezer, keggles, fermentation fridge all before i even brewed my first batch. l

lol
-=Jason=-


chromados

Well-Known Member
Joined
Sep 2, 2009
Messages
369
Reaction score
10
Location
Fort Collins, CO
I would also be interested in a schematic of your control panel as it looks what im working on putting together for my RIMS build. Any pictures or diagrams would be great.

thanks
Chromados


lil' league

Well-Known Member
Joined
Jun 27, 2008
Messages
50
Reaction score
4
Location
Austin
What did you use for your propane flex lines? I ended up using copper bc I couldn't find any high temp flex..


lgoolsby

Well-Known Member
Joined
Jan 23, 2011
Messages
67
Reaction score
1
Location
Columbus
Any way you could go into a bit more detail about your ignition system?


allclene

Beer, What a beautiful thing
Joined
Oct 18, 2011
Messages
237
Reaction score
2
Location
payson
I would like to have more info on your ignition system also. PLEASE!


TopherM

Well-Known Member
Joined
Mar 15, 2011
Messages
3,973
Reaction score
458
Location
St. Petersburg
Schweaty,

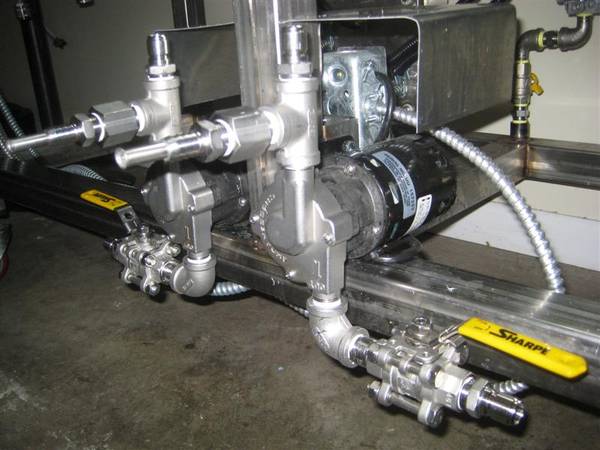

I know that March recommends that the inlet side of the pump face down with the outlet facing up, which is the opposite of how your pumps are configured. It's counterintuitive, but they say it helps with prime. Do Chuggers not recommend the same configuration?? Maybe it doesn't matter as much since Chuggers are self-priming??

Just curious....I'm putting together a recirculating single-vessel BIAB RIMS stand right now, so I've been researching a ton lately.


wncbrewer

Well-Known Member
Joined
Feb 4, 2011
Messages
431
Reaction score
16
Location
sylva
Great build schweaty, I am to the point in my own build where I am trying to decide where to mount my ignition modules. What kind of conduit did you use for the wiring running from you main panel to the module box? I looked around at lowes last night and was overwhlemed, I never new there were so many different kinds of conduit. I originally had things run with no conduit and it made my rig look like a birds nest, so I am reevaluating. Yours looks about as tidy as one can look with remotely mounted modules IMHO. Cheers to a sick rig and a very helpful build thread...wnc

OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City
Schweaty,

I know that March recommends that the inlet side of the pump face down with the outlet facing up, which is the opposite of how your pumps are configured. It's counterintuitive, but they say it helps with prime. Do Chuggers not recommend the same configuration?? Maybe it doesn't matter as much since Chuggers are self-priming??

Just curious....I'm putting together a recirculating single-vessel BIAB RIMS stand right now, so I've been researching a ton lately.
I don't have any problems priming my system Topher. I just run the liquid through the lines to get the air out, hook the outlet hose female disconnect to a male disconnect and let it rip.

OP
schweaty

schweaty

Doe Re Mi Beer
Lifetime Supporter
Joined
Sep 18, 2008
Messages
1,802
Reaction score
53
Location
Glass City
Not sure how much info on the ignition system you're looking for, but here is the parts list and the supplier from which I got them.

CONTROL PANEL
2 - Love TS-13010 Controllers Dwyer Instruments http://www.dwyer-inst.com
6 - Selector LED Switches Automation Direct http://www.automationdirect.com
1 - Turn Key Selector Switch Automation Direct http://www.automationdirect.com
2 - Core Transformer 120V TO 24V 96VA eBay http://cgi.ebay.com
2 - 4" Temperature Sensor LOVE TS Brewers Hardware http://www.brewershardware.com
25 Feet Flexible Galvanized Steel Conduit, 3/8" McMaster-Carr http://www.mcmaster.com

GAS SYSTEM
3 - 12" Hose w/Stainless Overbraid, 3/8" ID Tejas Smokers http://www.tejassmokers.com/
2 - Honeywell VR8304M3103 Electronic Gas Valve Surplus City Liquidators http://surpluscityliquidators.com
2 - S8610U 3009 Honeywell Pilot Module eBay N/A
2 - Honeywell Q345A1313 I.P. Pilot Burner Patriot Supply http://www.patriot-supply.com
2 - LP Orifices for Pilot Burners HVAC Parts Outlet http://www.hvacpartsoutlet.com


inamays

Active Member
Joined
Feb 29, 2012
Messages
44
Reaction score
5
Location
Charlotte
I don't want you to take this the wrong way, but I hate you Schweaty. I hate you and your schweaty balls and your schweaty awesome brewstand. Just kidding, badass rig dude, cheers!

Top
