7-Tap Black Iron Pipe Kegerator

Homebrew Talk - Beer, Wine, Mead, & Cider Brewing Discussion Forum

Help Support Homebrew Talk:

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda

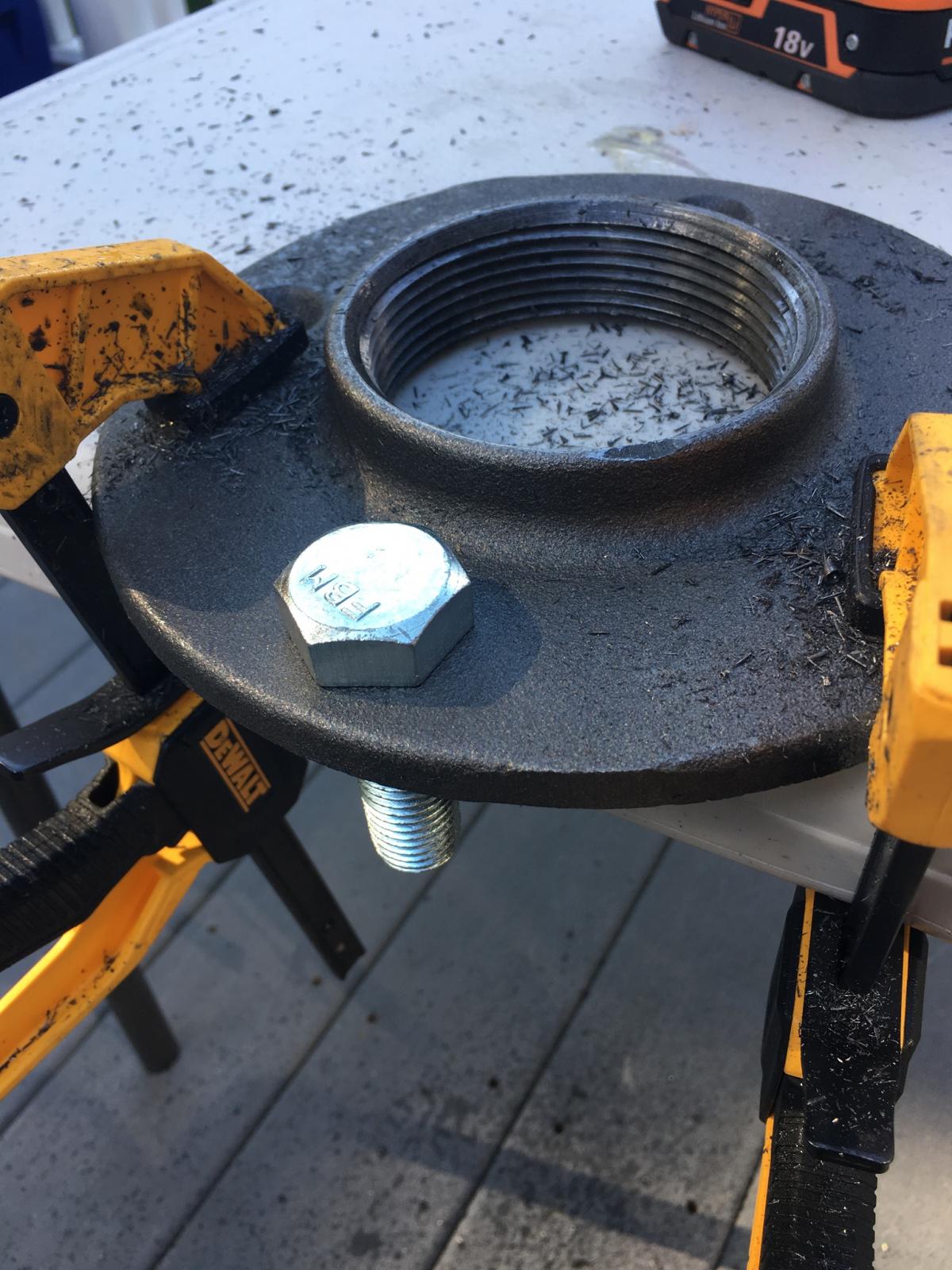

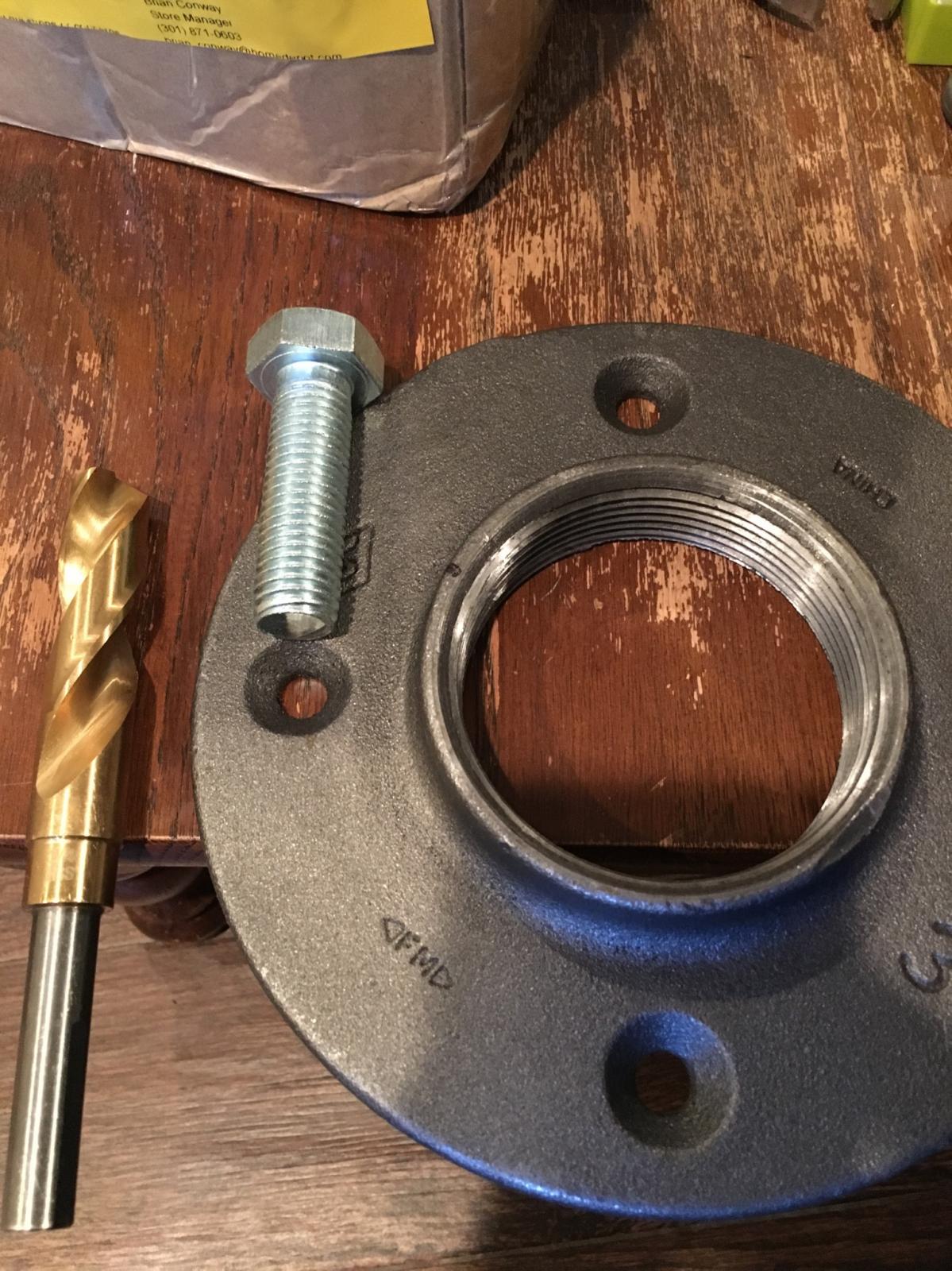

the floor flanges had small 5/16" holes that just wont work for the bolts I want to use. So I had to break out the 3/4" cobalt bit and chew through these pigs!

flange bolt pit.jpg

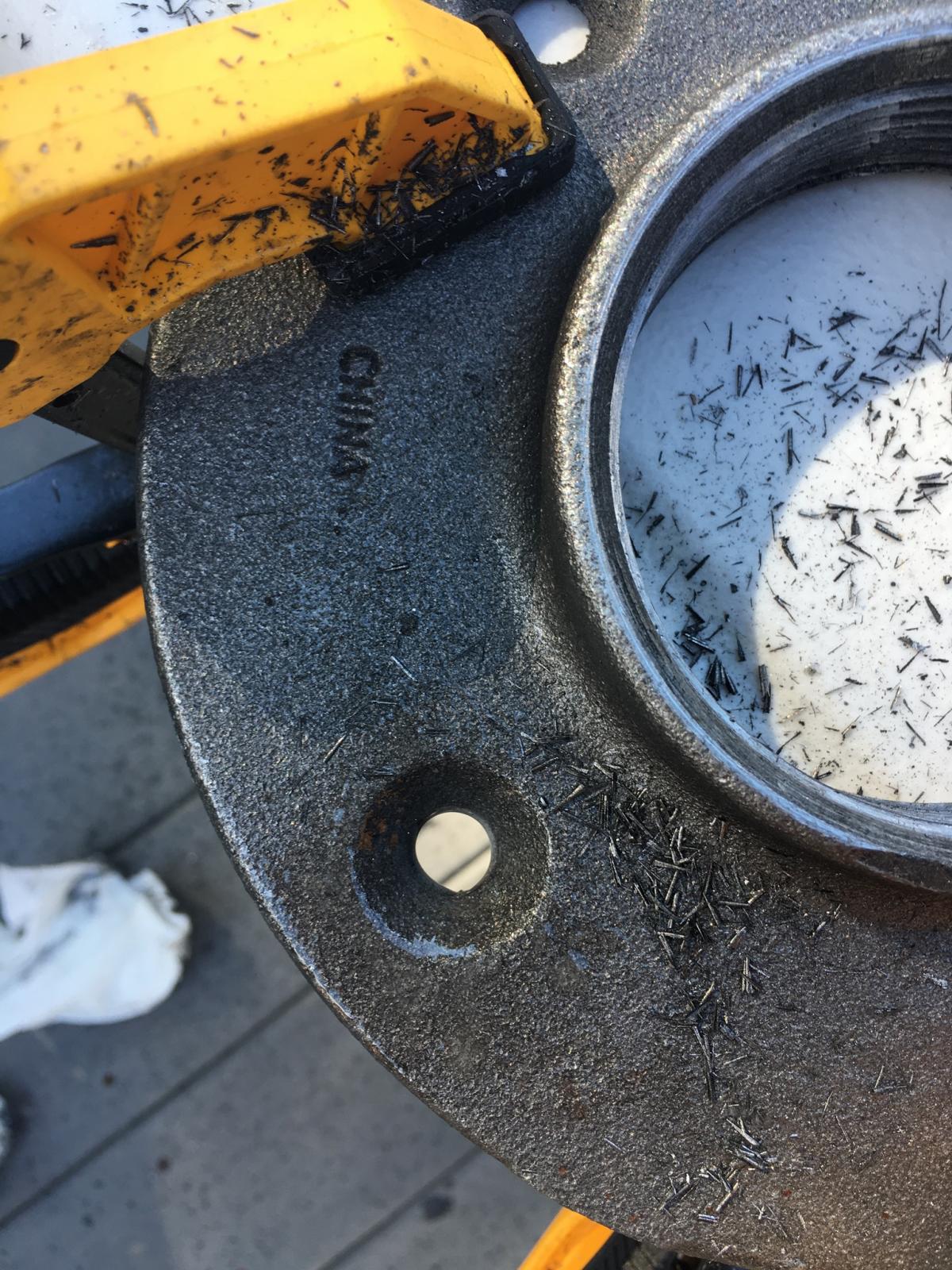

non drilled hole.jpg


half drilled.jpg


fully drilled.jpg


bolt in flange.jpg

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda

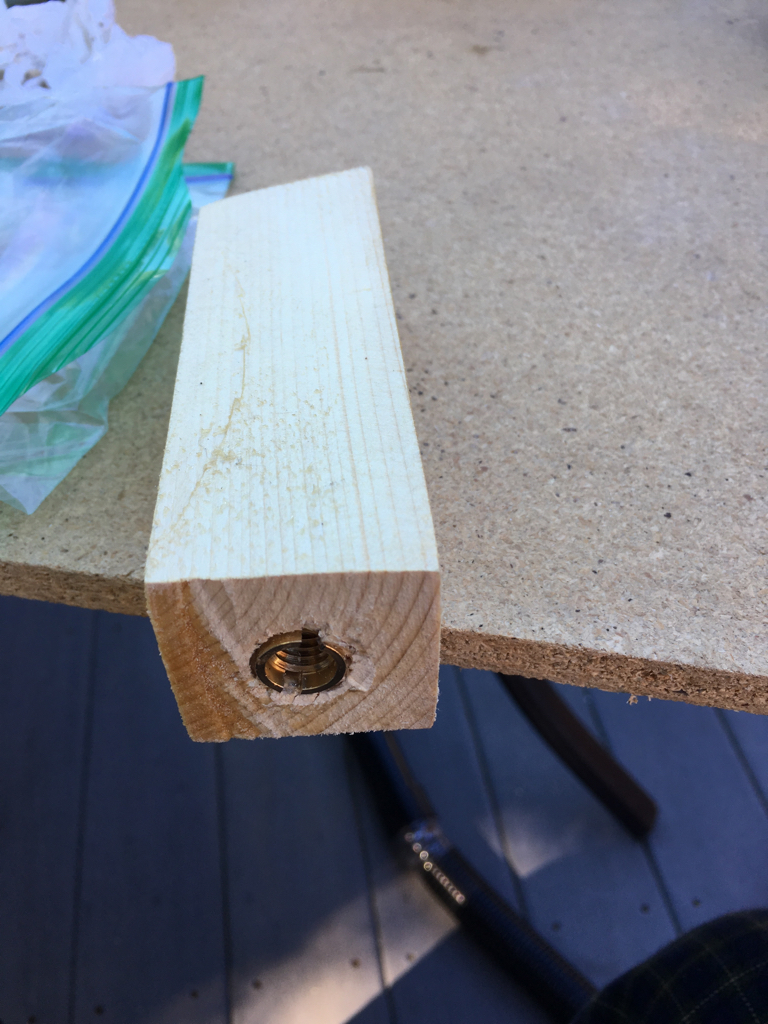

I keep getting ideas while building so I decided why not make some custom tap handles while im at it.

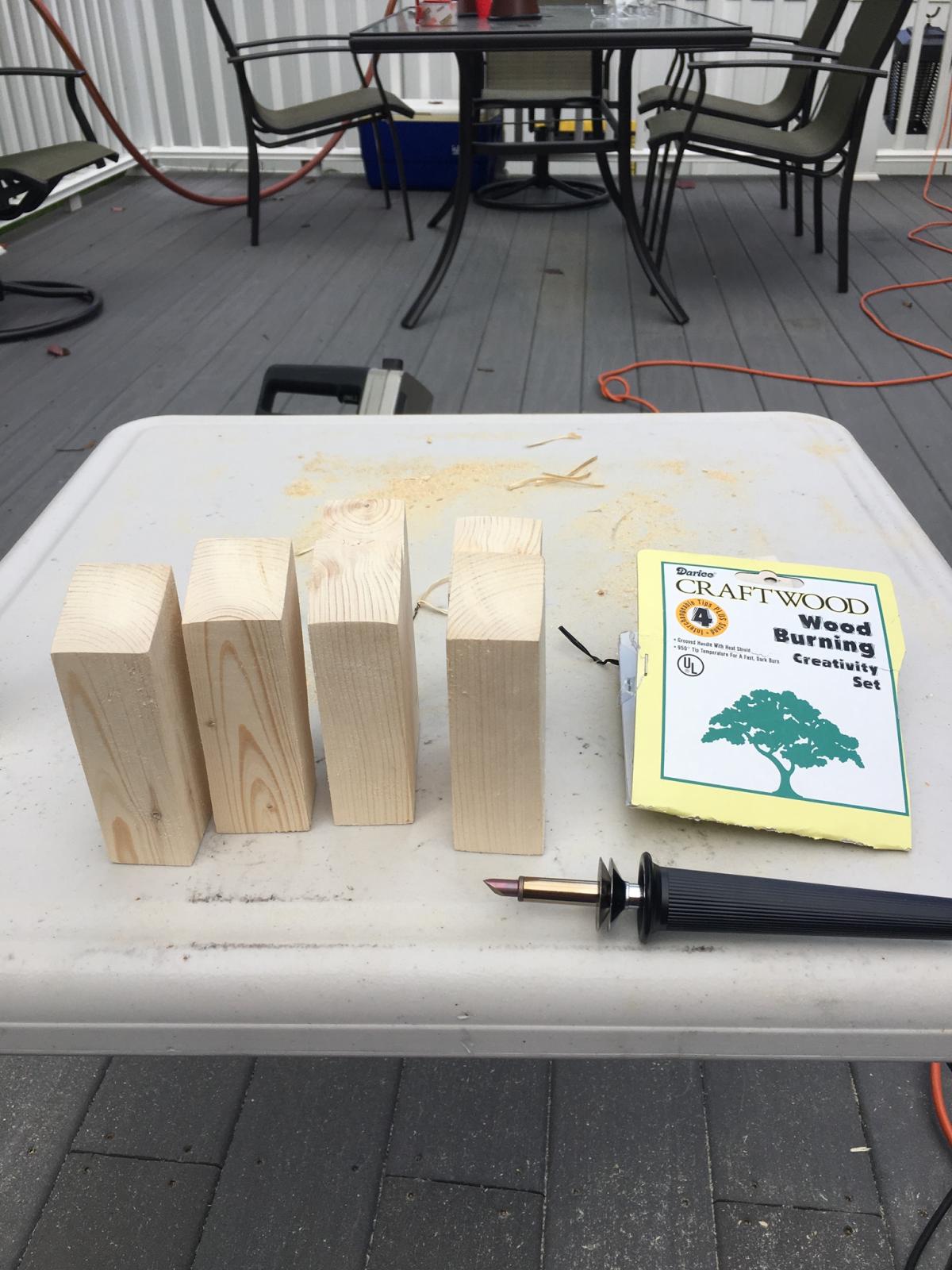

sanded w wood burner.jpg


burned 1.jpg

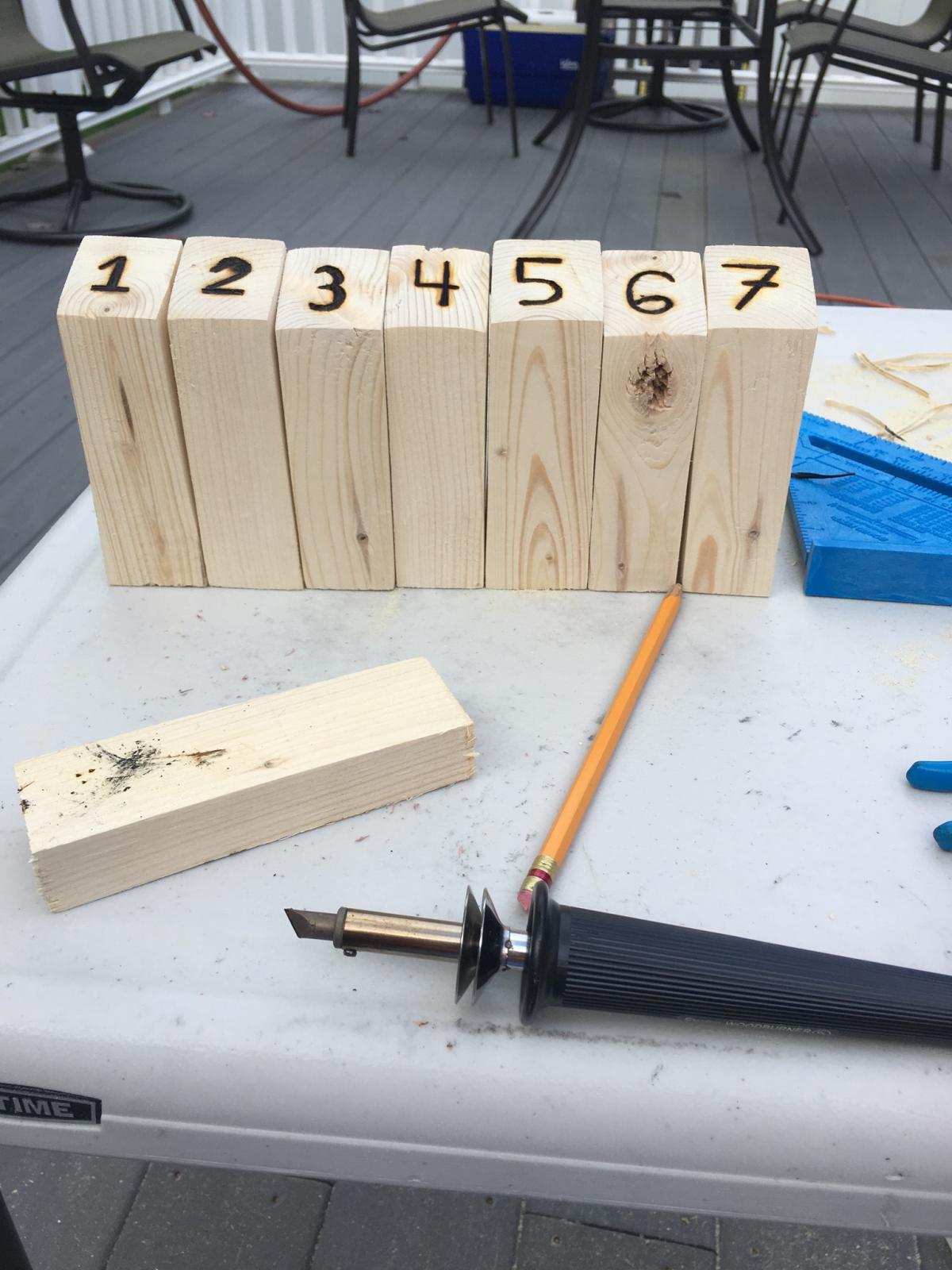

all handles burned.jpg

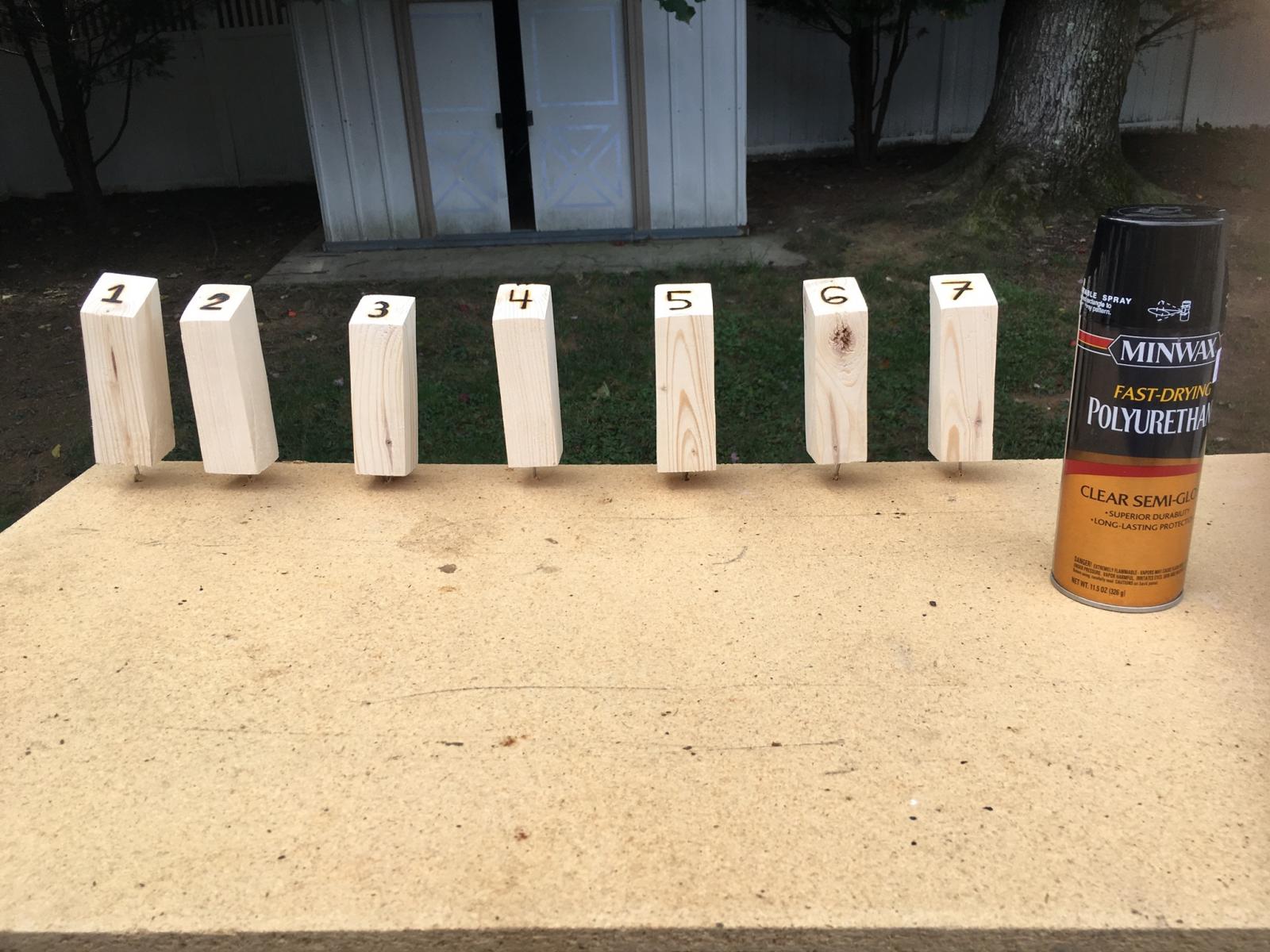

ready for coat.jpg

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda
The top will have the pipe tap system along with some sheet metal and stainless drip trays.

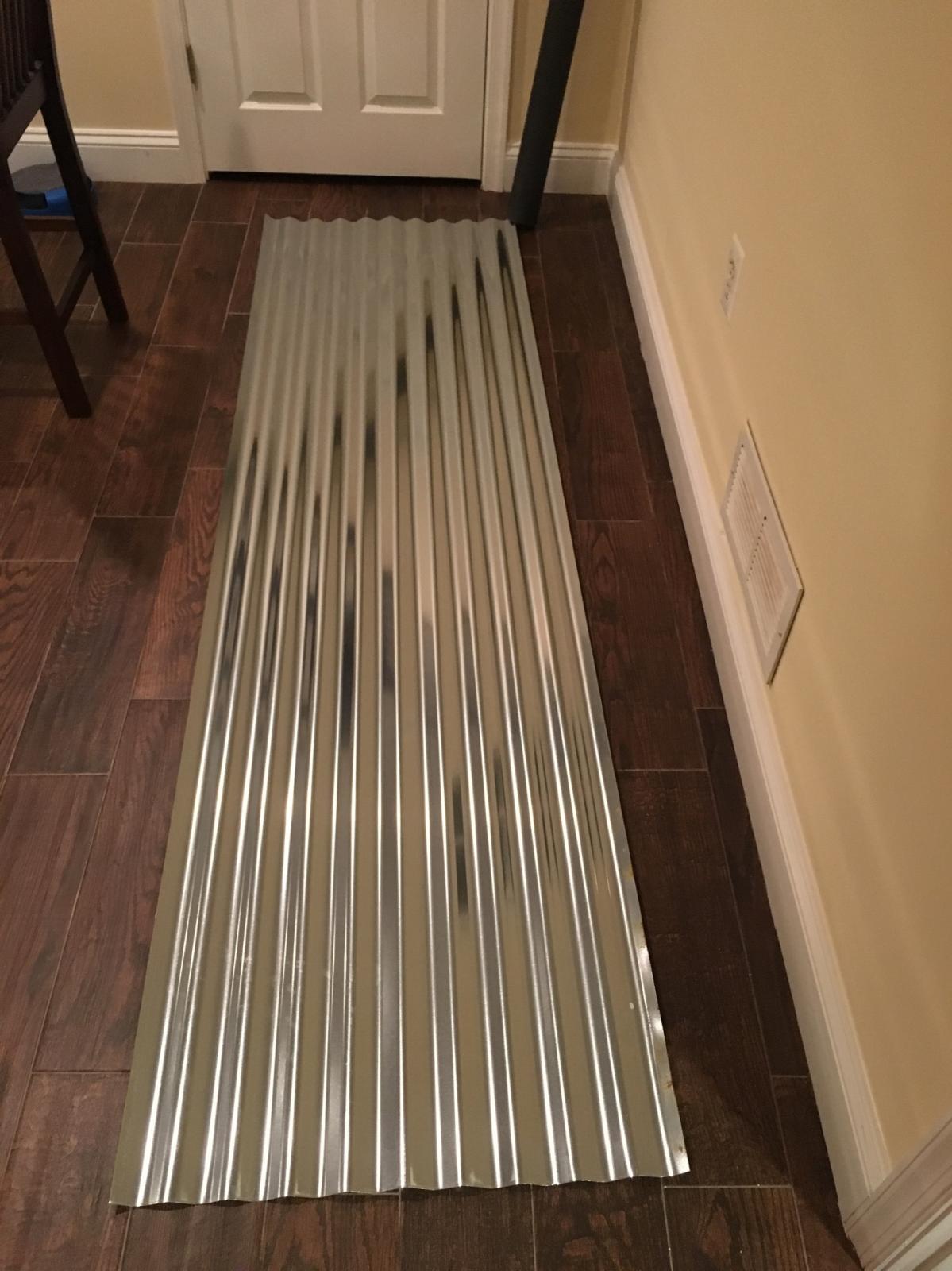

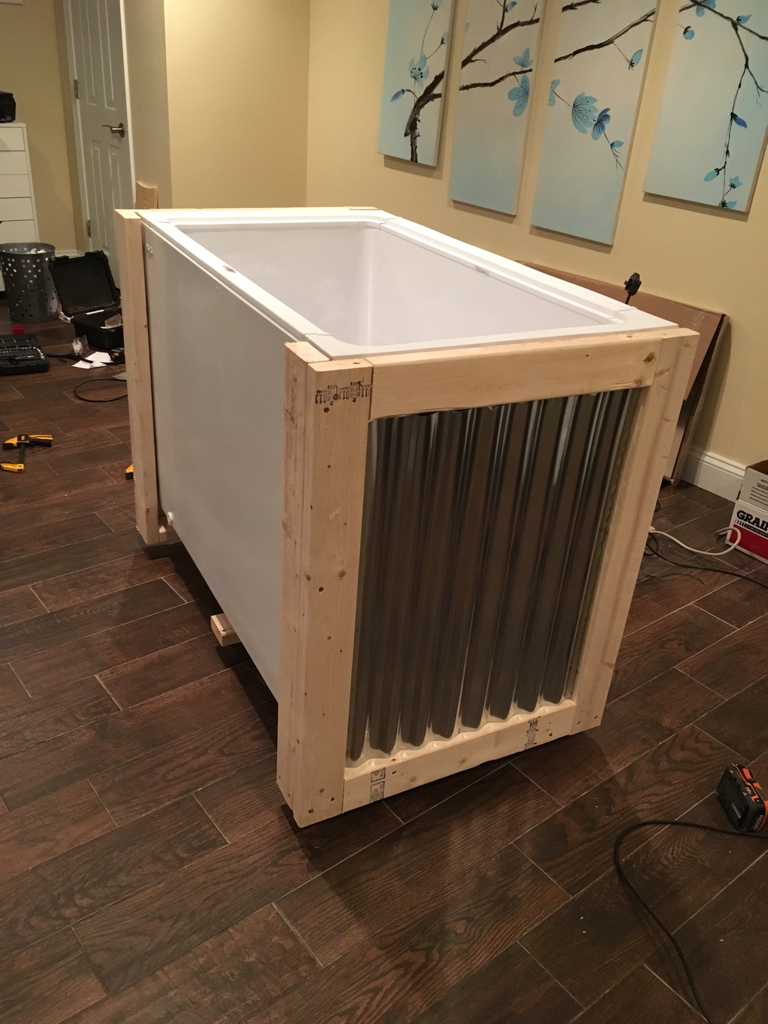

The front and sides will be framed with 2x4s and then have some corrugated roofing panels and decorative acacia wall panel (to cover the 2x4 framing).

sheet metal.jpg




roof panel.jpg



OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda
Applying contact cement to 3/4 plywood for Lid assembly.

View attachment ImageUploadedByHome Brew1476050544.227290.jpg

Sheet metal ready for contact cement to be placed on 3/4 plywood.

View attachment ImageUploadedByHome Brew1476050605.412239.jpg

All set!! Now just need a few more front panels, taps and all the inside fixins.
View attachment ImageUploadedByHome Brew1476050680.056341.jpg

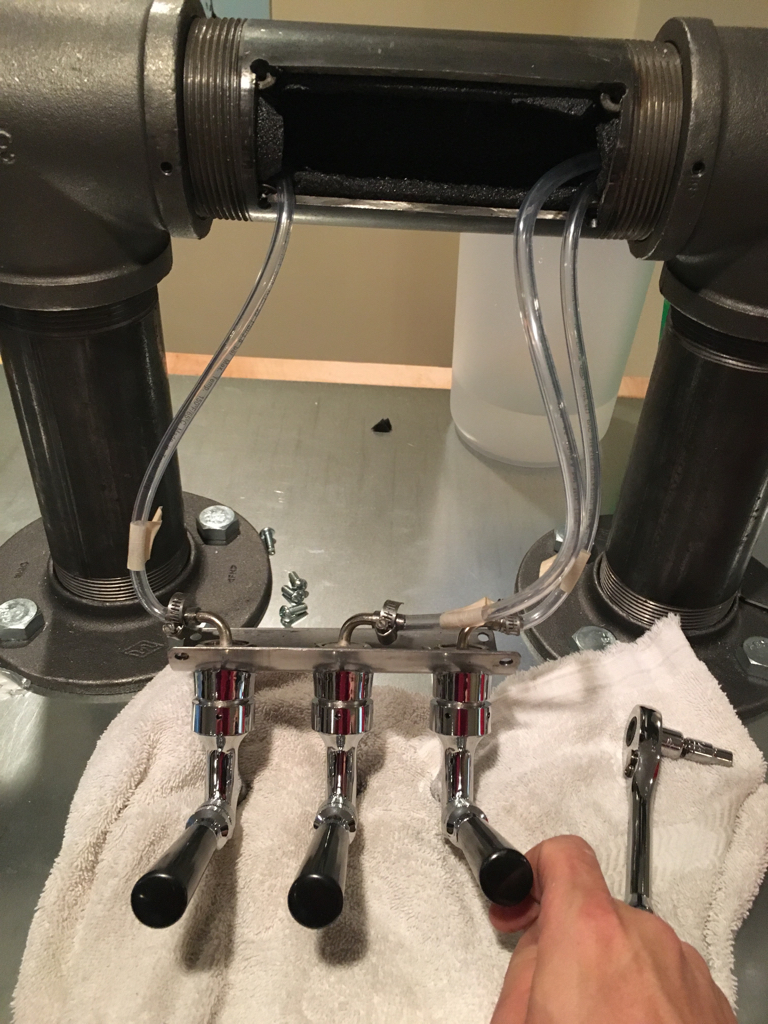

Tap assembling
View attachment ImageUploadedByHome Brew1476050733.183735.jpg

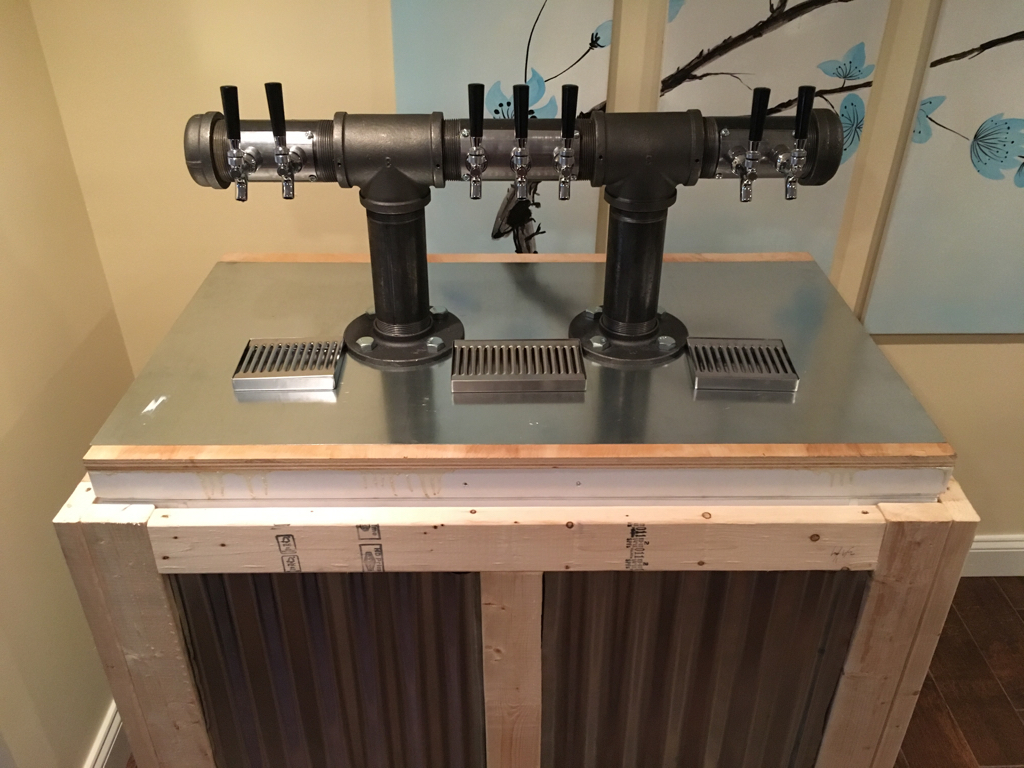

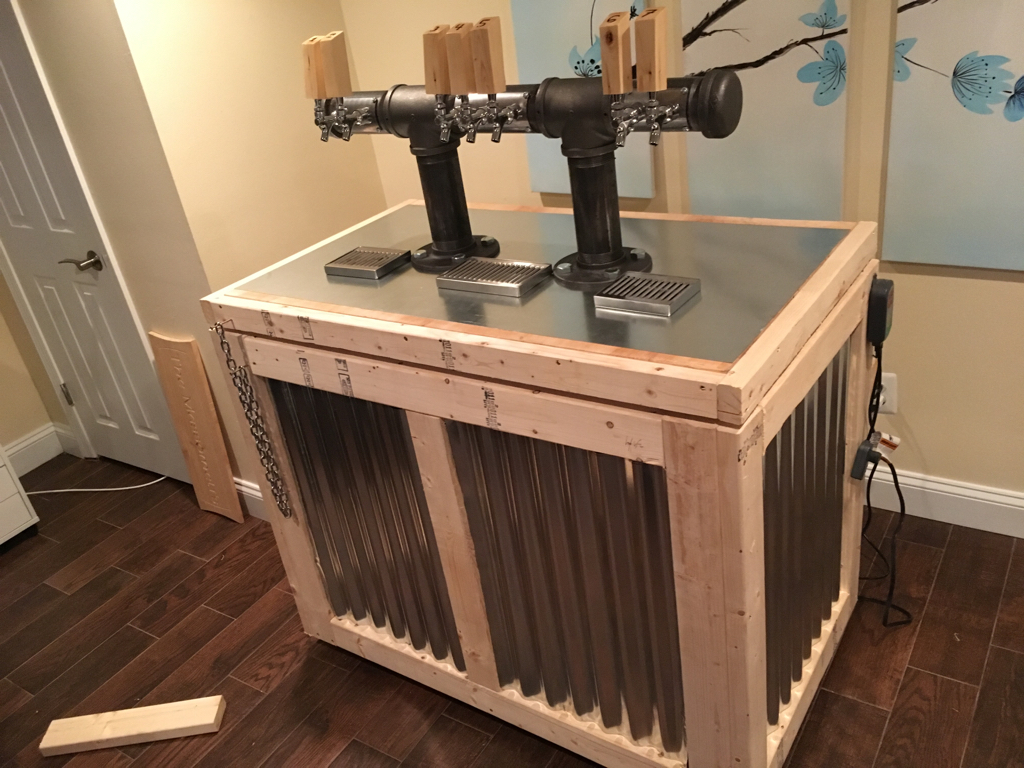

All done! (Deco wood still to cover framing(back ordered till mid November!)).
View attachment ImageUploadedByHome Brew1476050752.328807.jpg

View attachment ImageUploadedByHome Brew1476050806.998362.jpgView attachment ImageUploadedByHome Brew1476050816.692062.jpg

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda
Very very cool. Are you leaving the back open to maintain adequate cooling for the condenser coils?

Yes the back will remain open. I got a chest that had the ventilation in the back. That deco acacia wall panel will will cover the entire wall behind the kegerator as well (accent wall). So it will look like it's built off of the wall (kind of).


Smokenaces

Well-Known Member
Joined
Mar 25, 2015
Messages
52
Reaction score
22
Location
Holloman AFB
Great build! Nice job on the head. Glad everything came together. How's the cooling working?

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda

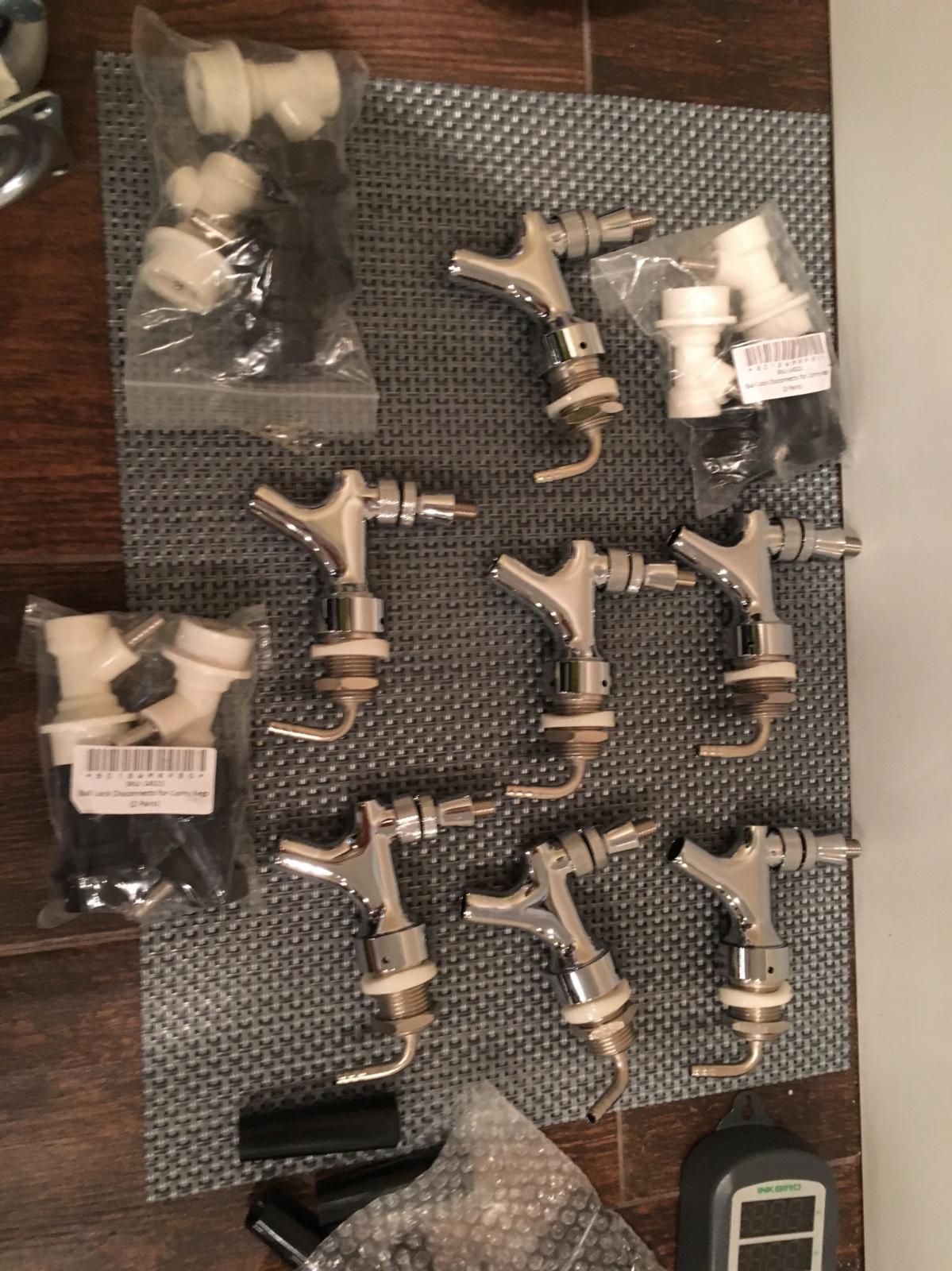

Please don't tell me you did all that work and went with cheap faucets. That deserves Perlicks.

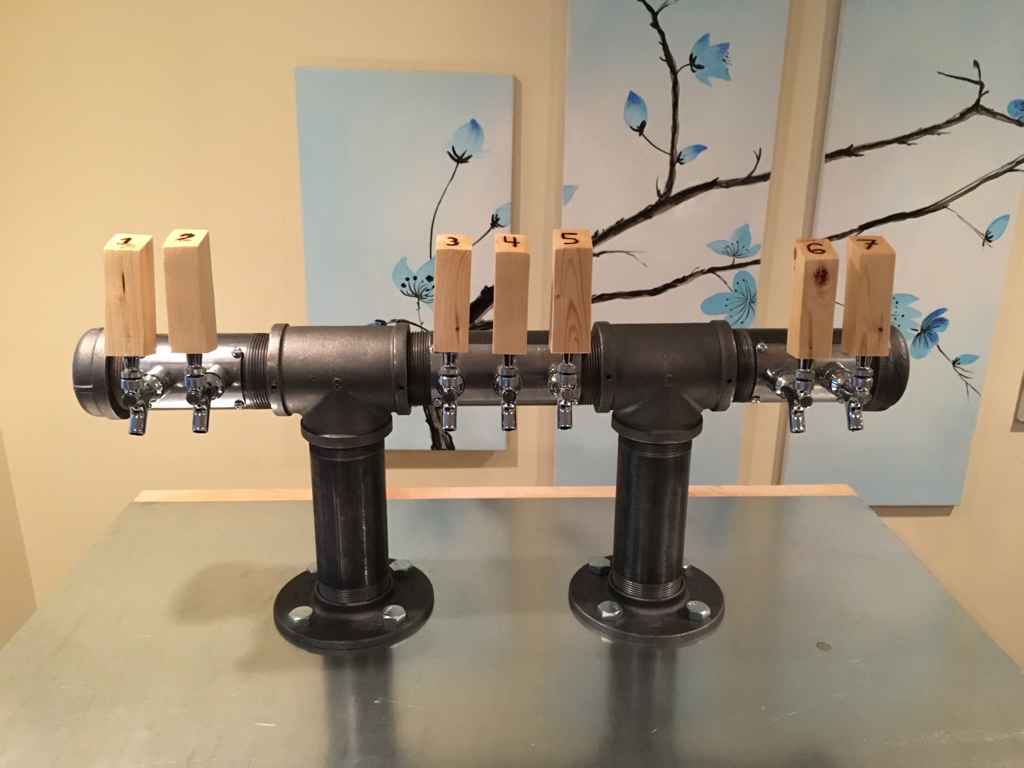

I appreciate the observation... Just wasn't in the budget for the initial build. I figured that the taps are the easiest thing to upgrade down the road so ill have to get by with these for now. Don't worry the fancy homemade tap handles are going on tomorrow and they should snazz things up!


akthor

Well-Known Member
Joined
May 23, 2010
Messages
2,070
Reaction score
185
Location
Litchfield and Brownton
I will warn you that those kind will stick like a son of a bitch if they sit for a few days with no beer going thru them.

Keep an eye in the for sale section here I got 6 or 7 of my perlicks thru there for cheap.


schatzke

Well-Known Member
Joined
Dec 31, 2015
Messages
458
Reaction score
120
Location
Billings
That's awesome! Can't wait to see what it looks like when it's "finished".


Calaeb

Well-Known Member
Joined
Dec 11, 2015
Messages
369
Reaction score
182
Location
Iowa City
Would like to do something similar to this, but use a collar instead. Will check back to see the finished product, looks great!

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda
That pipe is awesome!

Are you going to stain the wood similar to your floor?

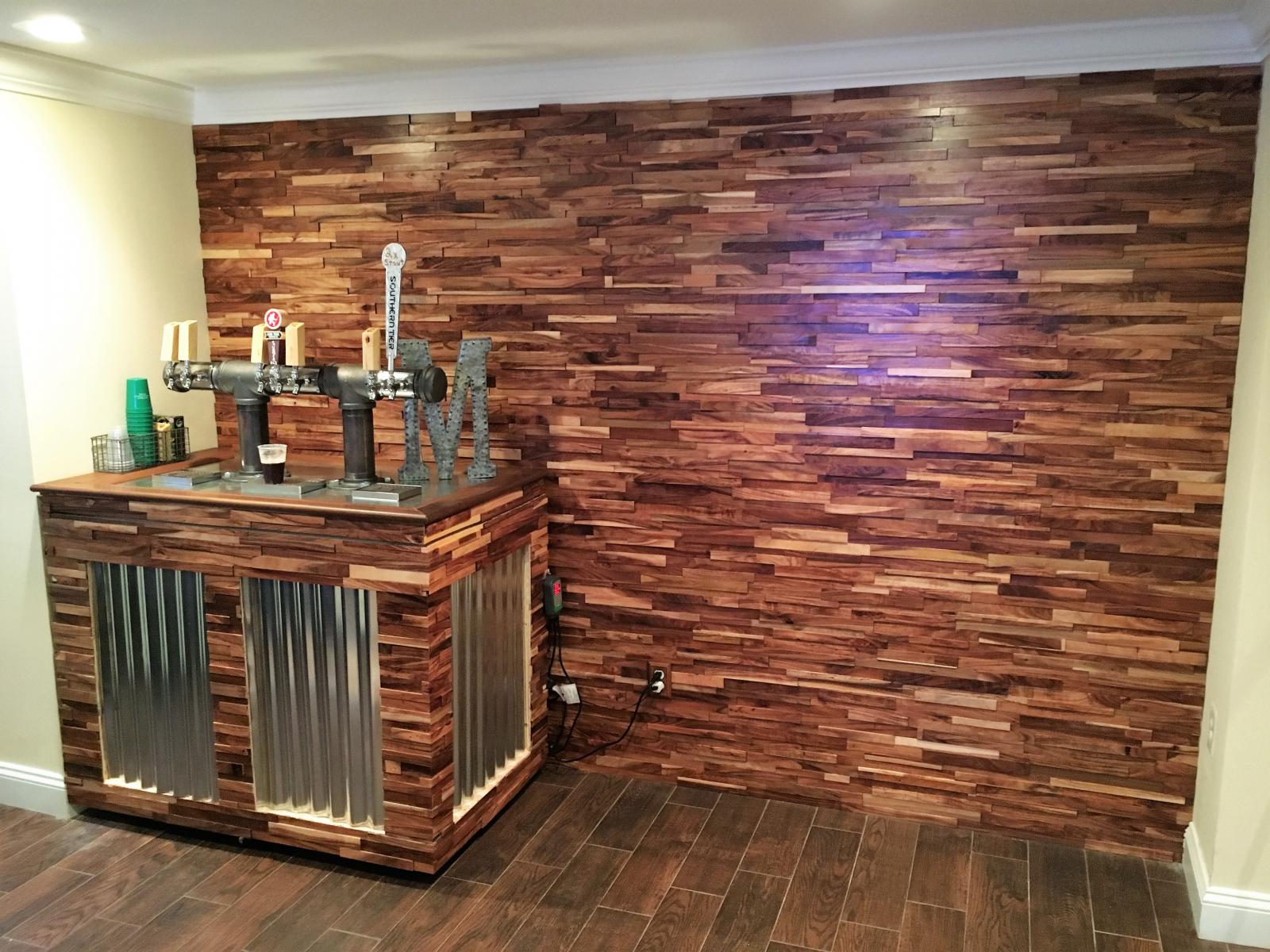

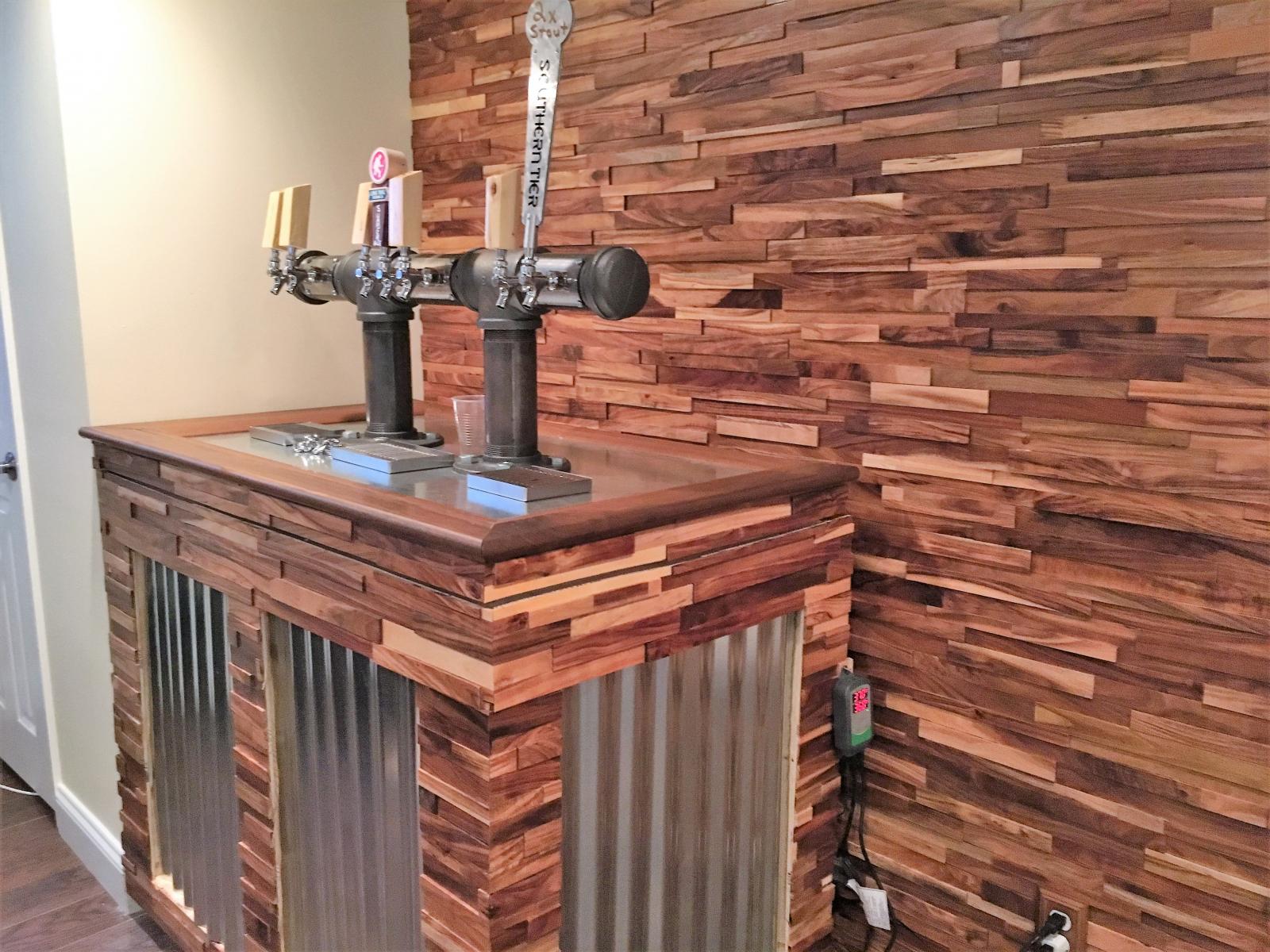

Thanks a lot!!! There is a picture on the first page (post #5) that shows the decorative acacia wall panel that will go on to finish it. the wall panel will cover the entire wall behind it as well. ill also be putting some acacia stairnosing on the top to complete the lid. I cant wait till the deco stuff gets here. Its going to look SICK!


woo_pig

Well-Known Member
Joined
Feb 27, 2016
Messages
525
Reaction score
124
You should of done negative space numbers. Burnt everything except the numbers .Maybe a nice sanding. Just my two pennies. Everything else I like.


biggrizzly

Well-Known Member
Joined
Oct 2, 2011
Messages
88
Reaction score
2
Location
Chesapeake Beach
Sammy, really nice job! I love it. Mike stopped by today and showed me some photos. I had to look and see for myself.

Coach, in Chesapeake Beach

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda
Sammy, really nice job! I love it. Mike stopped by today and showed me some photos. I had to look and see for myself.



Coach, in Chesapeake Beach


Thanks a lot Coach!! All that training we did really paid off! I couldn't have done it without ya! Can't wait for the next brew.
See you soon.


JBone120

Well-Known Member
Joined
Jan 3, 2015
Messages
53
Reaction score
8
Location
Rockville
I love the black pipe. I've been wanting to build out my keezer for a while and that's what I want to use. Where did you get the pipe, what size is it and where did you get it machined?

Your build looks sweet too.

OP
B

Bigs166

Supporting Member
HBT Supporter
Joined
Jun 13, 2015
Messages
175
Reaction score
81
Location
Bethesda
I love the black pipe. I've been wanting to build out my keezer for a while and that's what I want to use. Where did you get the pipe, what size is it and where did you get it machined?

Your build looks sweet too.

Thanks a lot. I really appreciate your interest. I got aall of the pipe from Grainger.It is 3" black iron pipe. I asked everyone at Grainger if they knew someone who could do the work and they pointed me to a machinist that does it as a hobby.


JBone120

Well-Known Member
Joined
Jan 3, 2015
Messages
53
Reaction score
8
Location
Rockville
Cool, thanks. Did you go to the Grainger on Dover? And do you if the machinist would be willing to do some more? I'm right in Rockville so being able to maybe get this all done locally would be awesome.


lschiavo

This space for rent.
Lifetime Supporter
Joined
Sep 2, 2009
Messages
5,240
Reaction score
1,457
Location
Upper Peninsula
No room inside for your "Grainger" box o beer?

It's a rusticly beautiful yet functional piece that no proper home should be without.
Where do the kids sleep now?;)
