I recently aquired 2 keggles to go with my 60qt brew pot. i cut the tops off the keggles but have not yet drilled any holes. The pot is fitted with a brewmometer and ball valve. My questions are
How should I configure the system
I want to fab a single tier stand using unistrut and add a pump
I have NGat my house so I looking for pros and cons of using propane vs NG as well as burner selection
Any threads that address these concerns would be appreciated


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
what is your end goal? RIMS, HERMS, Batch sparging?

really a single tier stand needs two pump unless you plan to gravity feed into your boil kettle.

NG > Propane never running out of gas is a plus and its cheaper too.
I use a burner from AgiDrain its the small 6" cast burner made for low pressure propane. I drilled out the oriface larger and use it on my NG setup at home. http://www.agrisupply.com/low-pressure-burner-cast-iron-70000-btus/p/40282/

-=Jason=-

OP
sethlovex

sethlovex

Well-Known Member
Joined
Jan 25, 2013
Messages
189
Reaction score
15
Flomaster said:
what is your end goal? RIMS, HERMS, Batch sparging?

really a single tier stand needs two pump unless you plan to gravity feed into your boil kettle.

NG > Propane never running out of gas is a plus and its cheaper too.
I use a burner from AgiDrain its the small 6" cast burner made for low pressure propane. I drilled out the oriface larger and use it on my NG setup at home. http://www.agrisupply.com/low-pressure-burner-cast-iron-70000-btus/p/40282/

-=Jason=-
I'm thinking RIMS on the mash keggle and fire the HLT and BK.


Yooper

Ale's What Cures You!
Staff member
Admin
Mod
Lifetime Supporter
Joined
Jun 4, 2006
Messages
74,660
Reaction score
12,279
Location
UP/Snowbird in Florida
If you're going with a single tier, I recommend two pumps. If doing two or three tier systems, one pump is adequate (as you can drain one or another vessel via gravity).


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
I'm thinking RIMS on the mash keggle and fire the HLT and BK.
that is my setup right now less the stand. I need to build one.

RIms tube, NG Burner for HLT and BK I only have one burner at the moment.

-=Jason=-

OP
sethlovex

sethlovex

Well-Known Member
Joined
Jan 25, 2013
Messages
189
Reaction score
15
Flomaster have you seen giftys weldless strut build thread? You can build brutus clone for around 80$ in strut + additional fittings. I am probably going this route when I finally choose my vessel config. Now I'm actually considering an electrified herms HLT....the main reason being I priced a Rims system and it ended being 200$ + the PID. If I go HERMs I can utilize my existing 3/8 copper immersion chiller. I just need some advice for the fittings to penetrate the keggle. Do I need a bulkhead or is there another way?


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
I have seen the weldless strut build, but I have a welder at the house I can use so i'll go that route when I get time to work on it.

-=Jason=-

Joined
Aug 31, 2013
Messages
22
Reaction score
6
Location
Richmond hill

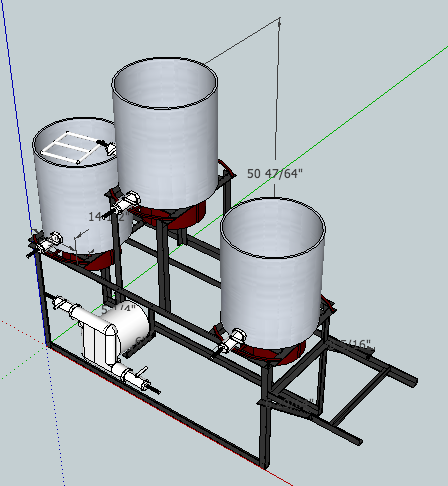

This is what I will be building when I get home. Maybe you could steal some ideas. The goal is to use a single pump and still be able to do constant recirculation, and store all my equipment while not in use.

Collapse Brew stand.jpg


Screen shot 2013-08-31 at 1.27.17 PM.png

OP
sethlovex

sethlovex

Well-Known Member
Joined
Jan 25, 2013
Messages
189
Reaction score
15
nice cad Dog.i have never seen it configured with the high vessel in the middle. Is that an HLT? Looks like 3 burners so I assume you are direct firing the mash. I was trying to avoid this but may have to do it at least for a while. So does the upper tier just nest into the lower angle iron? It's probably pretty solid without any additional fastening; I actually may steal this for my strut stand design. I could use a post foot fitting and just slide the upper tier assembly over it. thnaks!

OP
sethlovex

sethlovex

Well-Known Member
Joined
Jan 25, 2013
Messages
189
Reaction score
15
I got my 815 March pump (not the stainless) so I will be playing around with that on my next brew. I was wondering if the only reason to use a keggle mash tun is to perform step mashes and aesthetics. Im wondering if I would be better mashing in a cooler if all I plan on doing is single infusion mashes. Also now im leaning towards a 2 tier design with the BK down low. Will the March pump still be able to move wort to the fermenter or do i need more height to gravity feed.


Flomaster

Well-Known Member
Joined
Nov 5, 2010
Messages
2,084
Reaction score
38
Location
Orange
I got my 815 March pump (not the stainless) so I will be playing around with that on my next brew. I was wondering if the only reason to use a keggle mash tun is to perform step mashes and aesthetics. Im wondering if I would be better mashing in a cooler if all I plan on doing is single infusion mashes. Also now im leaning towards a 2 tier design with the BK down low. Will the March pump still be able to move wort to the fermenter or do i need more height to gravity feed.
1.polished keggles make the panties drop
2. keggles are great for RIMS or HERMS
3. Keggles don't retain heat as well as coolers do
4. my cooler only dropped 2 degrees during a 90 minute mash
5. keggles can be wrapped with insulation to help with heat retention
6. step mashing doesn't care what type of vessel its in
7. ??????????
8. Profit.

For the record I just upgraded from my Cooler to a polish keggle and RIMS Tube.
-=Jason=-
