Hi all, I've been going through some threads here in hopes of finding a schematic for a 3 Gas Burner, 2 pump, and 3 PID setup. I would like to have the option of turning on/off the burners and pumps manually and also have them wired for automatic (PID) control. I would also like to have light indicators of what is "On" (eg..pumps, burners) during their processes. Any help is greatly appreciated.

Thx!!! :mug:


goingmad

Well-Known Member
Joined
Nov 29, 2011
Messages
162
Reaction score
7
Location
milan
Hi,

as for the automation of your brewing process, did you see something close to your needs?
Brewtroller and BCS are the easier choice, different routes concerning Arduino, Raspberry PI or other solutions are available.

These are a couple of images for the Brewtroller approach, very well detailed.





This is not using PIDs, hope it helps anyway

Cheers

gm

OP
R

rarodrig

New Member
Joined
Nov 12, 2013
Messages
4
Reaction score
0
Location
Perris
Wow, that is a fully automated setup!!! That looks awesome but not exactly what I was looking for. Although you just might have made my decision a bit harder to go fully automated. :confused:

Gratzi gm!!!


kladue

Senior Member
Lifetime Supporter
Joined
Dec 28, 2006
Messages
2,318
Reaction score
60
Location
Turner, Oregon
Not sure if this is exactly what you are looking for, it is a 2 temp control,3 burner setup with ignition modules, and switches for pumps and valves. Controllers are Love TS series controllers, not PID control, but what works for long heating duration setups (> 4 minutes to reach setpoint) that PID controllers do not do well.
[/IMG]


johnnv

Active Member
Joined
Nov 22, 2013
Messages
35
Reaction score
3
How automated you want to get is the real question. I have a two burner herms setup, semi automated. There are way to many things that can go wrong in a fully automated system, in my opinion. I like to have some hands on. I control a mash tun pump with a PID. and a burner on the HWT with a pid. Those can also be manually controlled. All change over valves are manual, pumps on hwt and boiler are manual. All is hard piped. As far as wiring a system , it depends on the components you choose. My panel consist of 3 PID's/ssr's and sensors, 3 double pole double throw switches, 2 single throw switches, a few indicator lights, 24vac supply and bus bar, 12vdc supply and bus bar, 110vac bus bar. Maintaining mash temp is automated, boiler burner is manual, once boiling, I lower the flame as low as possible to maintain the boil. All 3 tanks are being recirculated by 12vdc pumps, and change over valves allow me to move the products and sparge etc.


luhrks

Well-Known Member
Joined
Dec 29, 2011
Messages
340
Reaction score
22
I would talk to ebrewsupply. His kits can be made for Gas as well.

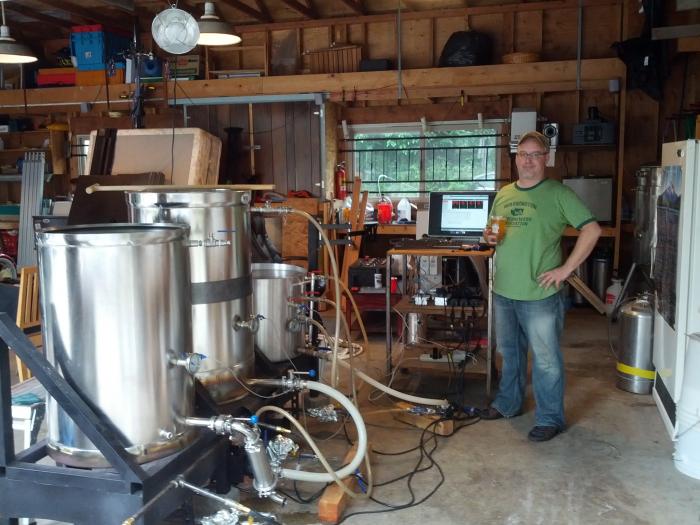

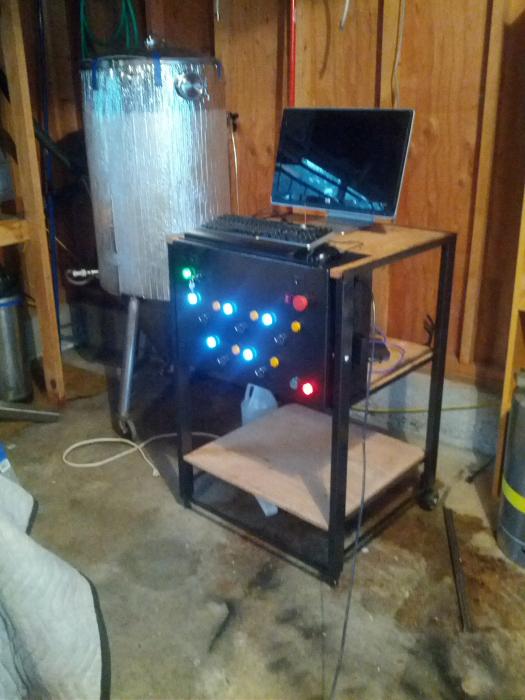

I went with a 3 burner, 2 pump control panel with all the features you're looking for. I supplied my own enclosure. The burners use standing pilots and 120v solenoids from ebay. I decided to keep everything 120v for simplicity's sake.





CCBrewer

Well-Known Member
Joined
Mar 31, 2010
Messages
677
Reaction score
37
Location
South Texas
dude luhrks, I saw your panel build I was like "Cool" outside the norm.... but damn those kettles... just WOW


luhrks

Well-Known Member
Joined
Dec 29, 2011
Messages
340
Reaction score
22
That would be "Lucy" my 1.5bbl gas fired HERMS system. ;)
