3-1 hard start for deep freeze

[kevy]

I hope this is the right place for this post
I have a 7.0 cu.ft. Deep freeze that stopped working. When I plug it in absolutely nothing happens. I was to I need a 3 in 1 hard start but know nothing about them. I see there are several different types but not sure which one to get.

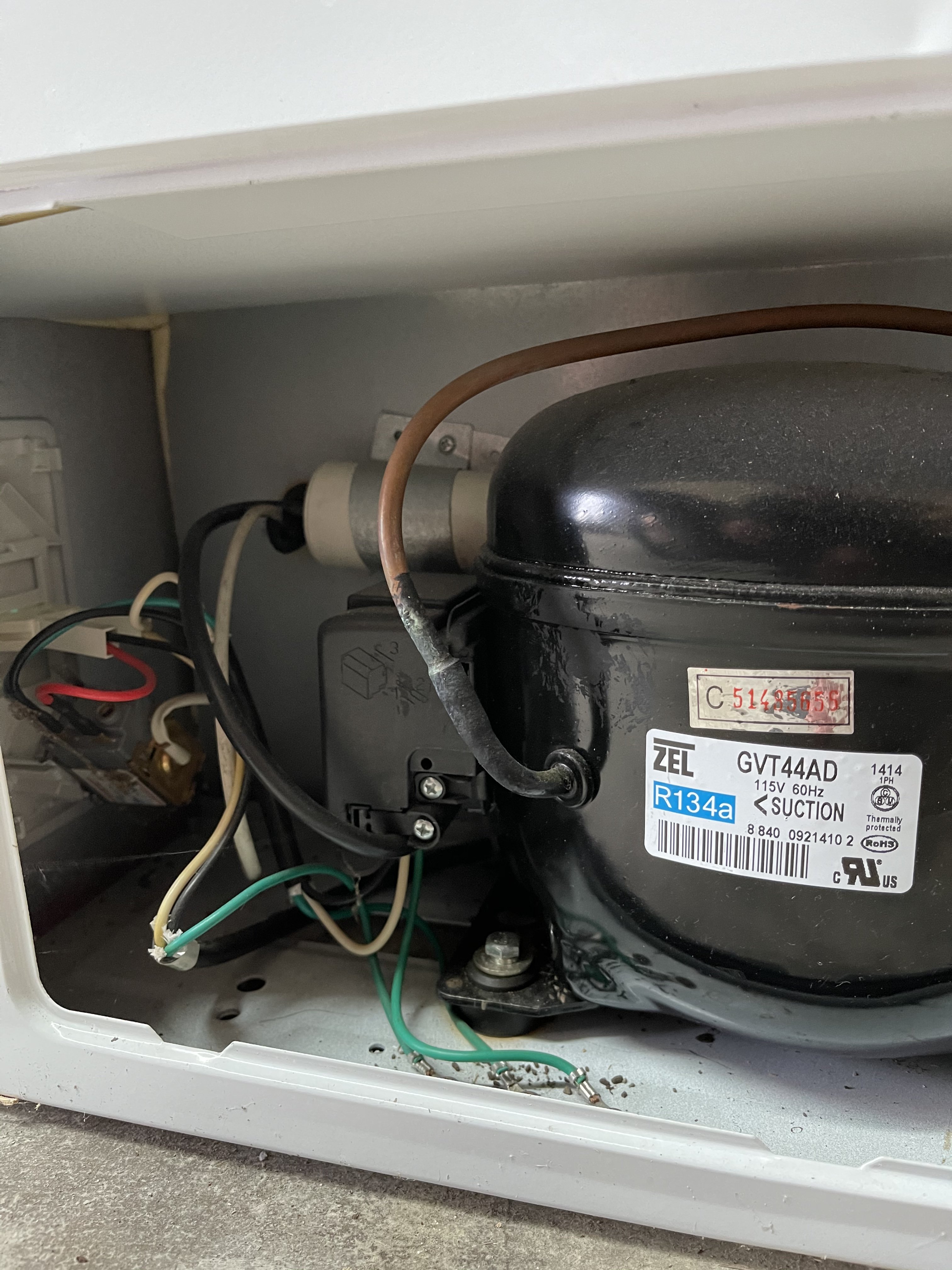

I will post pics and hopefully y’all could recommend a correct hard start.



[kevy]

This is my fermentation chamber btw. I keep a inkbird temp controller on it



[redarmy990]

If you have a tester, or a pen style tester. Make sure when you plug in you have power.
Trace it down the power cord and where it comes in to back of unit. Then check where it heads to compressor.

Hard starts are used to jolt the compressor, normally the fans would still run. If it does start with hard start you need a new capacitor

The clip on the compressor could also have burnt out.



[redarmy990]

we use these at work

https://www.amazon.com/SPP6-Capacit...kit+for+air+conditioner&qid=1609887180&sr=8-8



[kevy]

I got one installed and it’s up and running. Thank y’all for the help
