20 Gallon Blichmann G1's

[reilersjr]

I'd really love to get my hands on some G1's. I'm building my electric brewery and I'm not fond of the G2's, nor their new valves.

Thanks,
Rick



[user 125772]

if you find more than you can use, shout out, I could use one as well. (I'm in Wake county too)



[vinylicious]

What are you looking for? I'm downsizing from an 3 vessel HERMS system and may have an HLT and BK to sell. I can give you more information if you are interested.



[Marc77]

My buddy lives in Buffalo, so if the OP doesn't want both I may be able to talk him into paying and picking up the other. I've got a 20 gallon bayou classic and am looking for a HERMS HLT. But of course this isn't my thread so whatever the OP wants and then what you wanna do.



[reilersjr]

What are you looking for? I'm downsizing from an 3 vessel HERMS system and may have an HLT and BK to sell. I can give you more information if you are interested.

Yes, I'm interested. I'm building a 3 vessel system. I could use all 3, but will take what I can get. Do you have pics? I'm building to the electricbrewery.com specs. I order my control panel kit last week.

Thanks!
Rick



[vinylicious]

The HLT is built almost identical to the electricbrewery.com HLT plans The HERMS and recirc ports are on the opposite side from what Kal does and there is a Brewhardware solder tri-clamp fitting installed for the element. The BK has a whirlpool arm and a Brewhardware solder tri-clamp fitting installed as well.

I will take some pics as soon as I have a chance.



[vinylicious]

I built an electricbrewery.com panel that I would be willing to sell as well. Let me know if you would be interested in that as well.



[reilersjr]

I built an electricbrewery.com panel that I would be willing to sell as well. Let me know if you would be interested in that as well.

Maybe that can go to someone else. I already ordered my kit and am awaiting its arrival.



[vinylicious]

Here's a few pics of the HLT.

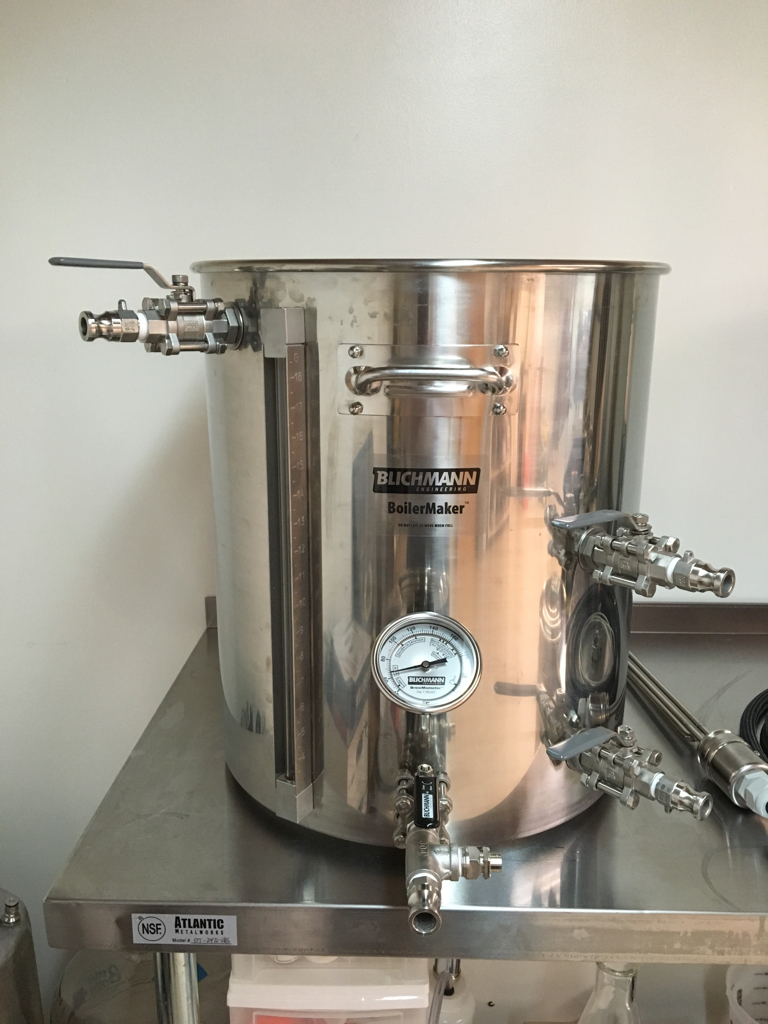

3-piece ball valves with
View attachment ImageUploadedByHome Brew1461294755.476459.jpg

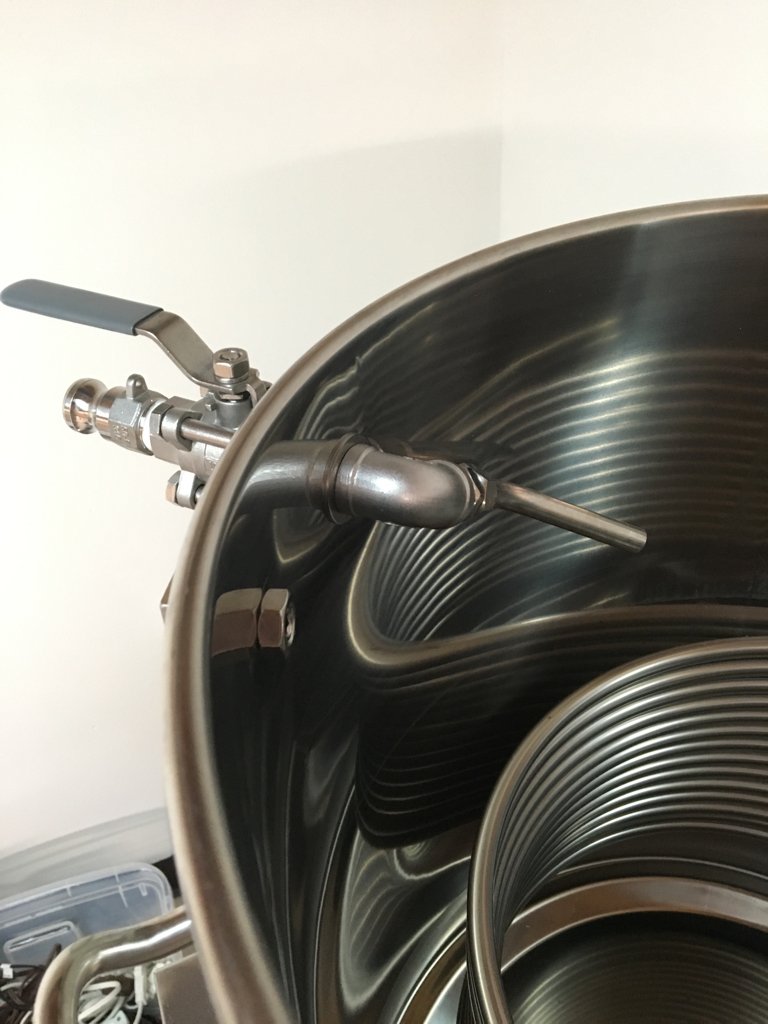

Recirculation port:
View attachment ImageUploadedByHome Brew1461294781.118056.jpg

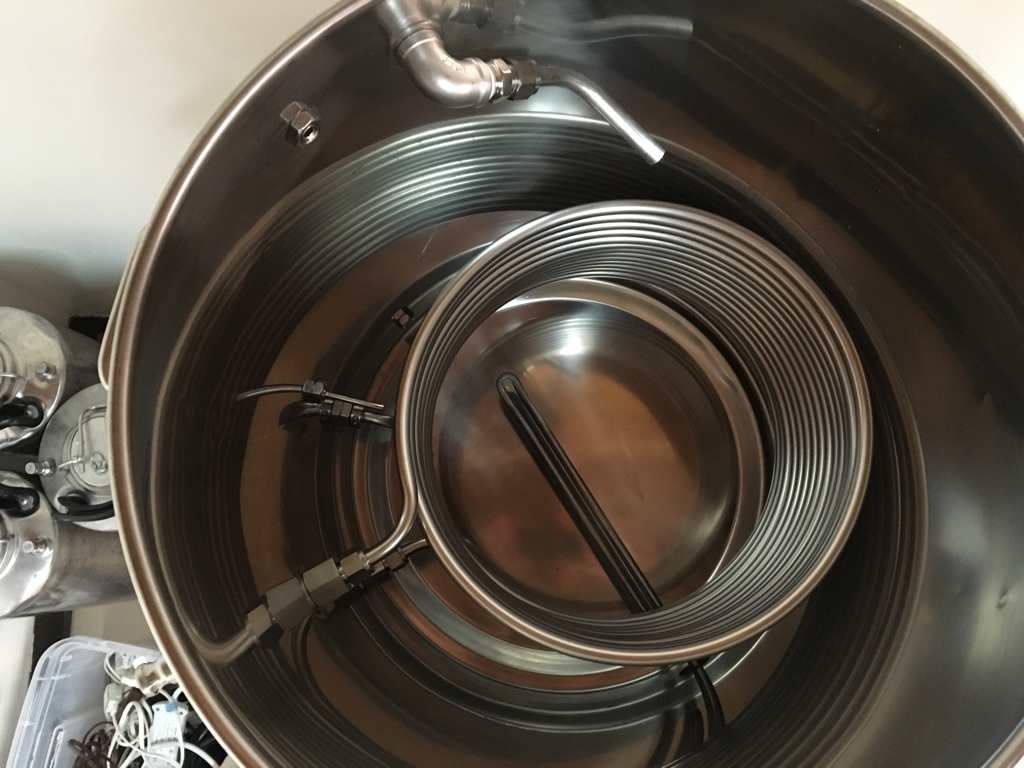

50' HERMS coil from Stainless Brewing
View attachment ImageUploadedByHome Brew1461294851.204679.jpg
Brew Hardware solder try clamp fitting for element
View attachment ImageUploadedByHome Brew1461294911.718503.jpg

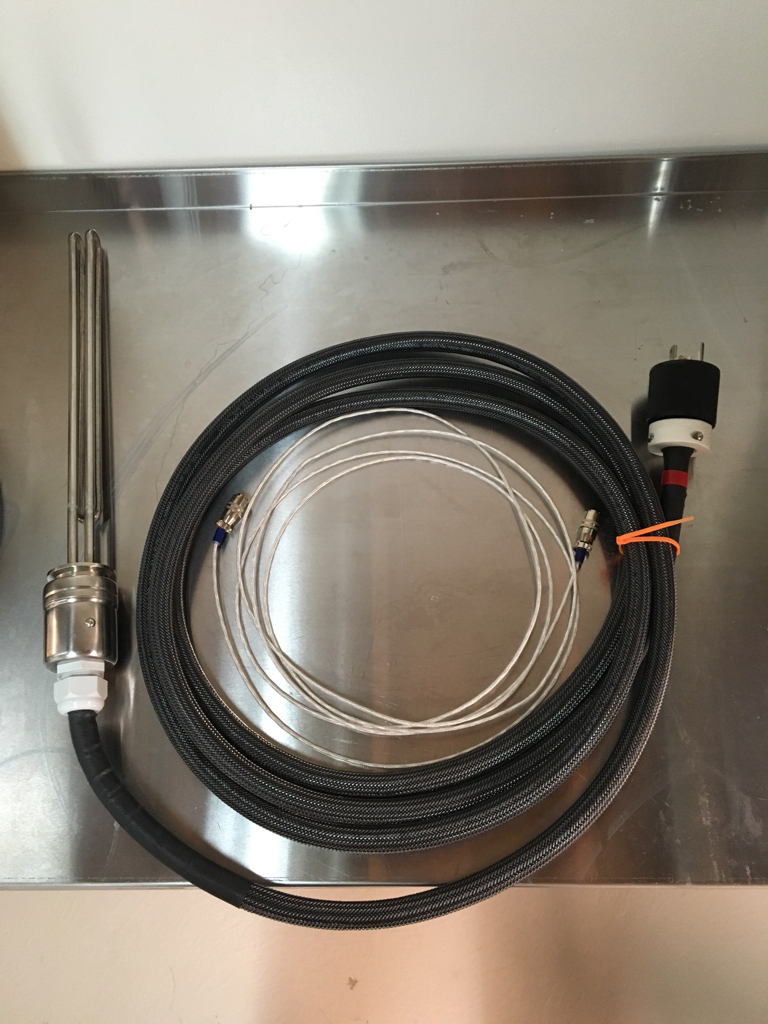

5500 All SS element from ebrewsupply, brew hardware element enclosure, extended rtf sensor cable from Auber ins.
View attachment ImageUploadedByHome Brew1461294959.640012.jpg

$700 plus shipping.

Price includes everything associated with HLT. All you need to do is hook it up and start using it.

Here is a breakdown of the parts:
20 gal G1 Blichmann Boilermaker
50' HERMS coil from Stainless Brewing
Custom 45 degree recirculation arm
Brew Hardware Tri clamp element enclosure with solder ferrule
5500 watt all stainless element from ebrewsupply
L6-30P locking plug
Approx 10 ft 10/3 (SJOOW?) cable wrapped in braided sleeving
Auber Instrument RTD sensor, 1.5", 1/2 NPT thread with upgraded 8 ft braided cable
3-piece ball valves, male cam lock disconnects, compression fittings and all other stainless fittings.



[reilersjr]

Beautiful piece of equipment, but I'm going to pass. Someone will snatch this up quickly. Thanks for providing the pics.

Rick



[vinylicious]

No problem.

Let me know if you need any pieces when you start building your electric brewery. I have all sorts of extra pieces from my build.



[reilersjr]

If you want to cut me a deal on the punch set I'm looking for those. Mainly just the one for the kettles.
