I have not other than qualitatively. Before installation, the area above the SSR would get hot to the touch. Now, it is actually cool so I can only assume the other components are affected.

Also, I don't have any schematics per se, other than in the words of Simple Jack, "my head schematics". I can whip up a block diagram if there is interest.

github link for aia and apk file now on github.com/jzking/bluebrew1

Let's try this: Code for the Arduino is below. You will need to adapt it to whatever board you are using. I will work on Github repo. /////////////////////////////////START///////////////////////////////////////////////////// int PinTemp = 0; // LM34 temperature sensor int PinHeater = 13...

I can't post any links without approval flag getting tripped...weird

Maybe it's the URL tag causing the approval flat to trip? The controller is an Intel Galileo with a ITEAD Studios BT shield http://imall.itead.cc/itead-bt-shield-master-slave.html which is indeed hc-05.

The controller is an Intel Galileo with a ITEAD Studios BT shield http://imall.itead.cc/itead-bt-shield-master-slave.html which is indeed hc-05.

I just posted the Arduino code and .apk/.aia files but it needs to be approved for some reason. Maybe because of file size? The apk is like 2.5 mb

Absolutely! Attaching .apk for the Android app (and .aia file in case you want to modify the app with MIT App Inventor). Code for the Arduino is below. You will need to adapt it to whatever board you are using...

Was hoping to cool the power supply and Galileo as well.

Hello! My name is Zach King and I just launched a Kickstarter campaign for a device called the Digital Potbelly, which is meant to be the ultimate home brewing thermometer. The name is really cheesy but I've never been able to resist a good (or even not so good) pun. Check it out if you want...

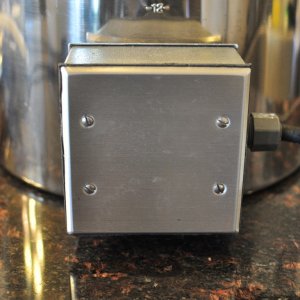

There is actually a Peltier thermoelectric chiller wedged in between the 2 heat sinks. One side of the TEC gets cold, the other side gets hot. The big sink and fan are for the hotside. It keeps the inside of that sealed box cool, otherwise the SSR would probably cook everything inside.

Guess I should show disclose the cellar as well. (Ignore the clamp light :))

Hello all, this is my first post. I'm located in Phoenix, AZ, and as the title of suggests I have an electric single vessel 2.5 gallon BIAB setup with BT capabilities. While I enjoy making and drinking beer, I derive the most pleasure from the equipment. In line with that self observation...

"Bulk" is the right word
