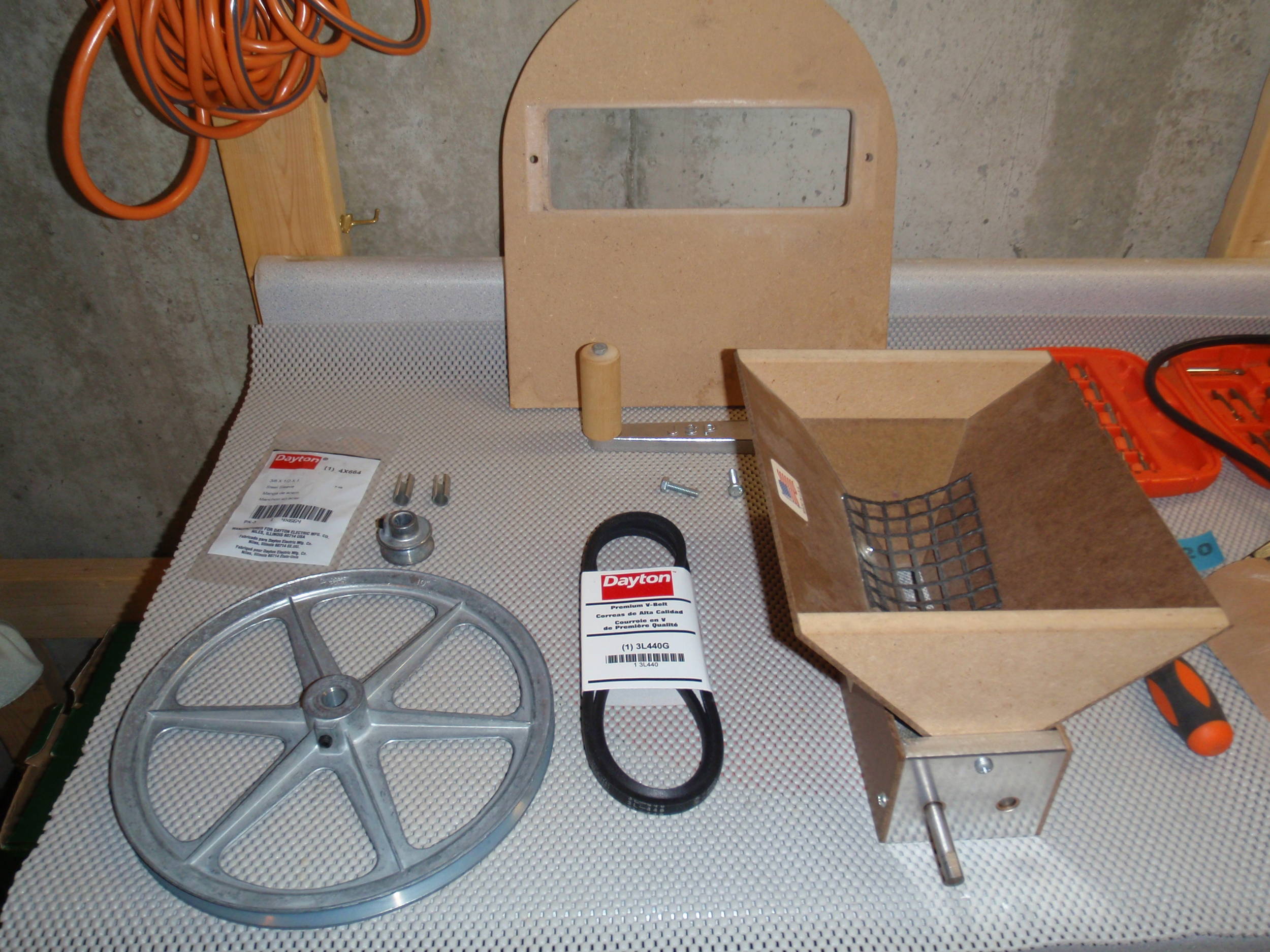

JSP MaltMill fixed spacing, circa 1994
Dayton 4X664 Reducer Bushing 1/2" - 3/8"
Congress CA150 Fixed Bore Sheave 1.5"
Dayton 3L440 V Belt 44"
Congress CA1000X050 Sheave 10"
Fixed Bore Sheave, Solid, Single Groove,
Bore Dia 1/2 In,
Outside Dia 1 1/2 In,
3L Belt Pitch Dia 1.05 In,
4L or A Belt Pitch Dia 1.35 In
Fixed Bore Sheave, Spoked, Single Groove,
Bore Dia 1/2 In,
Outside Dia 10 In,
3L Belt Pitch Dia 9.55 In,
4L or A Belt Pitch Dia 9.85 In
http://www.csgnetwork.com/pulleybeltcalc.html
Powered Driver Pulley Diameter: 1.05" small sheave
Driven Object Pulley Diameter: 9.55" large sheave
Belt Length: 44" L belt
Input (Driver) RPM: 1725 dryer motor
Resulting Output (Driven) RPM: 188.025
