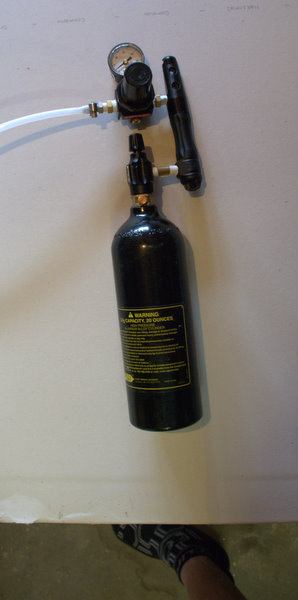

Here is the completed assembly with a co2 tank. After a long day of paintball, either a tournament paintball or 26hr scenario paintball game you are now ready for a nice cold beer. Usage is simple: 1. Attach tank to regulator and hose to keg co2 in
Here is the completed assembly with a co2 tank. After a long day of paintball, either a tournament paintball or 26hr scenario paintball game you are now ready for a nice cold beer. Usage is simple: 1. Attach tank to regulator and hose to keg co2 in
Here is the Gas Line held on to the "Hose Barb" quick disconnect fitting I used. There are many different hose barbs available for your co2 line. You could in theory use a 1/4" to Hose Barb fitting and do away with one bushing completely.
Here is the completed regulator assembly. The use of the hard piped nipples instead of classic braided co2 line used in paintball means the entire assembly will stay rigid when installed on a co2 tank. Instead of using the 1/8" NPT nipples you coul
Tools: Two Adjustable wrenches Teflon Tape (more of a supply but whatever, use thread sealant of your choice) Parts: Planet Eclipse Inline High Pressure Reg (free part) Planet Eclipse OOPS (free part) ASA adapter (free part) Generic Air Compresso
Co2 pressure can range between 650-1200psi. Here is the attached On/Off valve, 1/8" NPT x1" Nipple, Primary High Pressure Regulator, ASA and close nipple. Remember to turn the primary reg down to about 100psi as the Secondary reg has a maximum
Jeepninja

Here is the completed assembly with a co2 tank. After a long day of paintball, either a tournament paintball or 26hr scenario paintball game you are now ready for a nice cold beer. Usage is simple: 1. Attach tank to regulator and hose to keg co2 in

Here is the completed assembly with a co2 tank. After a long day of paintball, either a tournament paintball or 26hr scenario paintball game you are now ready for a nice cold beer. Usage is simple:

1. Attach tank to regulator and hose to keg co2 in port.
2. Back off secondary regulator so that pressure is essentially off.
3. Turn on OOPS valve to pressurize system.
4. Slowly increase pressure of the secondary regulator until you are at your desired serving pressure.
5. Drink beer and enjoy.

From your Friends at Pub Crawling http://www.pubcrawling.org
