Old 01-25-2009, 06:02 PM   #1
The Pol
Recipes

Feb 2007
Posts: 11,454
Liked 96 Times on 81 Posts



Hey guys, I am finishing up an article for a homebrewing publication and would like to include a photo of a RIMS heater. I dont have a RIMS.... anyone here wish to donate a photo of thier handy work?

Ideally it would show the inlet, outlet, temp probe location...

Let me know if you can help me out!

The Pol


Reply With Quote
Old 01-26-2009, 03:02 PM   #2
slimer

slimer's Avatar
Recipes

Oct 2007
Westmont, IL
Posts: 688
Liked 3 Times on 3 Posts


I posted in another thread, but here:



I'll also try to get one of mine tonight.


Reply With Quote
Old 01-26-2009, 03:09 PM   #3
The Pol
Recipes

Feb 2007
Posts: 11,454
Liked 96 Times on 81 Posts


I like that diagram...


Reply With Quote
Old 01-27-2009, 03:43 PM   #4
slimer

slimer's Avatar
Recipes

Oct 2007
Westmont, IL
Posts: 688
Liked 3 Times on 3 Posts

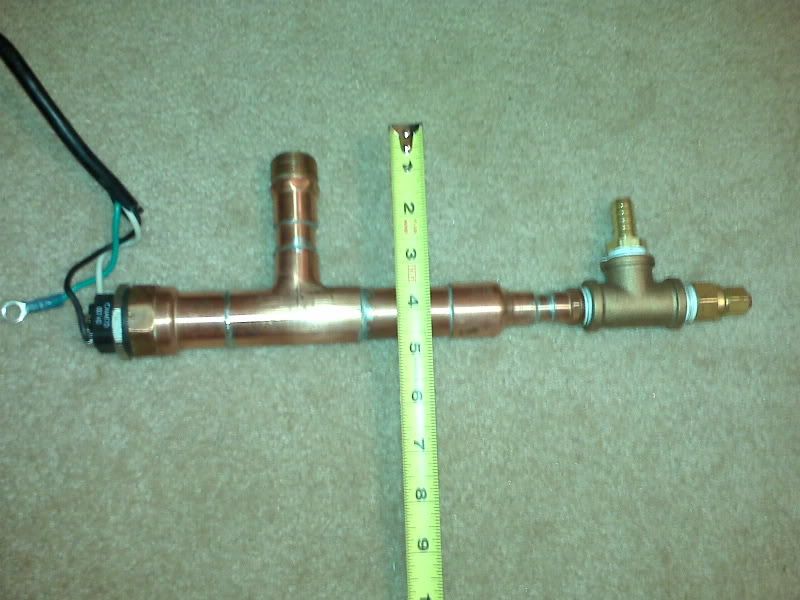

Here's mine. Not exactly like the diagram, but it works.





Reply With Quote
Old 01-27-2009, 03:44 PM   #5
slimer

slimer's Avatar
Recipes

Oct 2007
Westmont, IL
Posts: 688
Liked 3 Times on 3 Posts


Heater Element is Camco 02142.

It's actually 1" copper pipe and the element DOES NOT touch the sides. (VERY IMPORTANT)




Reply With Quote
Old 01-27-2009, 03:55 PM   #6
The Pol
Recipes

Feb 2007
Posts: 11,454
Liked 96 Times on 81 Posts


Your camera didnt like focussing on that shoot did it? The second to last photo may be useable, I will send it to the editor and see what he thinks when I send the rest of the article.

sdhucks7 Likes This
Reply With Quote
Old 01-27-2009, 04:04 PM   #7
slimer

slimer's Avatar
Recipes

Oct 2007
Westmont, IL
Posts: 688
Liked 3 Times on 3 Posts


I can take more tonight if you need them. I can even take them on a real camera. My BB Curve wanted to move when I pressed the button.


Reply With Quote
Old 01-27-2009, 04:06 PM   #8
The Pol
Recipes

Feb 2007
Posts: 11,454
Liked 96 Times on 81 Posts


Yeah, a digital cam would be good too, appreciate the pics and diagrams guys!


Reply With Quote
Old 01-29-2009, 09:36 PM   #9
slimer

slimer's Avatar
Recipes

Oct 2007
Westmont, IL
Posts: 688
Liked 3 Times on 3 Posts


These better?





Reply With Quote
Old 01-29-2009, 10:38 PM   #10
The Pol
Recipes

Feb 2007
Posts: 11,454
Liked 96 Times on 81 Posts


Ohh that is tiight...

Time for Pol Junior to play on Nick.com....


Reply With Quote
