Default Help with Gas Pin Lock Disconnect

Okay I searched and I feel so stupid, but do you just connect the gas side disconnect onto the post, push down, and lock it in the little notches? The reason I ask is because I just got all of my kegging stuff together and on my test run it is leaking from the gas side ridiculously bad. It is definitely coming from inside the gas disconnect on the post, where the poppet valve is. I want to say that the O-rings is bad on the post(it is not horrible looking just loose). I have new o-rings on the way anyways, but I just want to make sure I am not missing something obvious.


__________________
Standing Eight Brewing
Always up for another round

Primary 1: Milk Stout
Primary 2: Fizzy Yellow Beer
Primary 3: Boulevard Wheat with a twist
Planning: 1554 Clone
tmoney1224 is offline

Reply With Quote
Old 01-20-2009, 02:47 AM   #2
polecreek
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2008
Location: montrose co
Posts: 366
Liked 1 Times on 1 Posts

Default

I have ball lock, I dont know about pin lock but the posts look the same but are different for in and out. The in side has a notch in the side of the nut. Just in case you disassembled and mixed the posts up.


polecreek is offline

Reply With Quote
Old 01-20-2009, 02:45 PM   #3
tmoney1224
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Wichita, KS
Posts: 251
Default

On the pin locks, the gas side has two notches and the beer side has three. I have the gray disconnect on the two notch side.

If I put downward pressure on the disconnect, the leak will stop. But as soon as I stop pushing down, it is leaking air. So I just want to make sure that the o-rings will solve this problem, and I don't need something else.
__________________
Standing Eight Brewing
Always up for another round

Primary 1: Milk Stout
Primary 2: Fizzy Yellow Beer
Primary 3: Boulevard Wheat with a twist
Planning: 1554 Clone
tmoney1224 is offline

Reply With Quote
Old 01-20-2009, 05:41 PM   #4
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 4 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,745
Liked 1299 Times on 853 Posts
Likes Given: 35

Default

The ring that is keyed to engage the pins on the post holds downward pressure on the disconnect by way of a c-shaped locking ring. Is it possible that the locking ring is not seated properly?

It is likely the O-ring. Sizing on pinlocks is a bit odd. A standard "hard" #111 is actually a touch too small in diameter on a pinlock. I've found that either a #112 (which fits a little loose) or a silicone #111 works best.
__________________
Welcome to BrewHardware.com. I love you.
New 100% Stainless Steel Heating Elements are IN! ULWD 5500w Ripple, 2000w, 1500w, etc
Chugger Pumps, Pump Kits, Camlocks, Sightglasses, Clear USA made Silicone Tubing, RIMS, Electric Install Parts, etc.
Bobby_M is offline

Reply With Quote
Old 01-20-2009, 05:51 PM   #5
tmoney1224
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Wichita, KS
Posts: 251
Default

Thanks Bobby, I will double check that.

I saw on another thread of yours about the 112 O-rings and made sure I got those. I should get the o rings tomorrow or Thursday and hopefully that will solve my problem.
__________________
Standing Eight Brewing
Always up for another round

Primary 1: Milk Stout
Primary 2: Fizzy Yellow Beer
Primary 3: Boulevard Wheat with a twist
Planning: 1554 Clone
tmoney1224 is offline

Reply With Quote
Old 01-20-2009, 05:54 PM   #6
stever
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: St. Louis
Posts: 534
Liked 4 Times on 4 Posts

Default

Sounds like the O-ring is the wrong size or worn out. It shouldn't be loose at least from what I can remember on mine. I have a ton of extras if you need me to send you a few let me know.
__________________
"24 hours in a day, 24 beers in a case. Coincidence?"

Quote:
Originally Posted by MVKTR2 View Post
Can't believe I'm saying this, but Great Cock man!
Quote:
Originally Posted by Laurel View Post
yeah, i've got big balls
stever is offline

Reply With Quote
Old 01-20-2009, 07:27 PM   #7
tmoney1224
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Wichita, KS
Posts: 251
Default

Thanks for the offer stever, since I already bought some I will check them out and see if they work first then I may hit you up.

I took a couple of quick pictures when I was home.

The gas connected where I had it

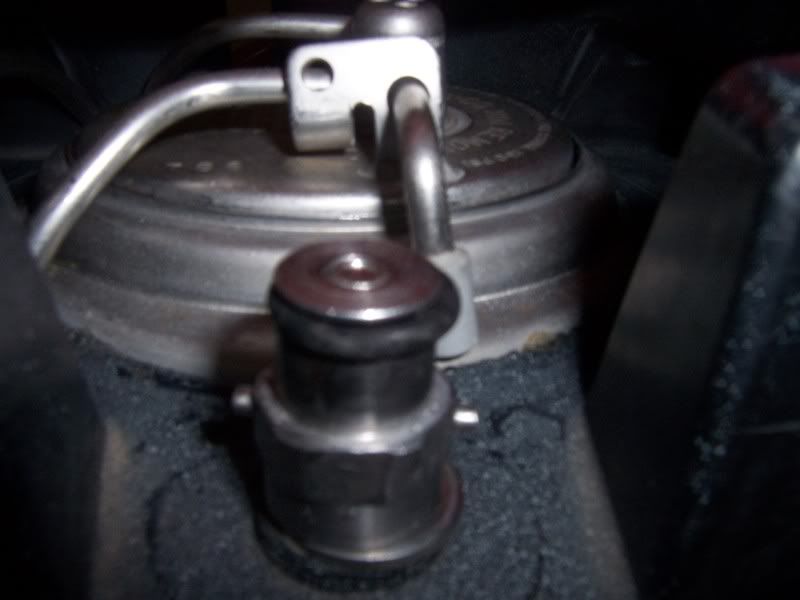

top of post, you can see the o-ring sticking out a bit


side, I pushed the o-ring on the back so it would stick out as far as it could on the front side.
__________________
Standing Eight Brewing
Always up for another round

Primary 1: Milk Stout
Primary 2: Fizzy Yellow Beer
Primary 3: Boulevard Wheat with a twist
Planning: 1554 Clone
tmoney1224 is offline

Reply With Quote
Old 01-20-2009, 07:32 PM   #8
stever
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2008
Location: St. Louis
Posts: 534
Liked 4 Times on 4 Posts

Default

that looks way too big. If you ordered the correct ones based on bobby's earlier post you will be good to go.
__________________
"24 hours in a day, 24 beers in a case. Coincidence?"

Quote:
Originally Posted by MVKTR2 View Post
Can't believe I'm saying this, but Great Cock man!
Quote:
Originally Posted by Laurel View Post
yeah, i've got big balls
stever is offline

Reply With Quote
Old 01-20-2009, 07:37 PM   #9
tmoney1224
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2007
Location: Wichita, KS
Posts: 251
Default

That's what I was hoping to hear, thanks again stever
__________________
Standing Eight Brewing
Always up for another round

Primary 1: Milk Stout
Primary 2: Fizzy Yellow Beer
Primary 3: Boulevard Wheat with a twist
Planning: 1554 Clone
tmoney1224 is offline

Reply With Quote
Old 01-20-2009, 08:15 PM   #10
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 4 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,745
Liked 1299 Times on 853 Posts
Likes Given: 35

Default

Wow, yeah, way big. Don't be alarmed when you see how loose the #112 fits. It doesn't hug the recessed part of the post tight like the #111 does. However, it compress it just enough when you get the QD on. In the case of a #111, it actually has to stretch too much so the ultimate OD of the installed oring is too small and a wiggle on the QD can cause leaking.
