I just picked up 20ft of half in OD soft copper at Mernards for $23.00 pretty good price. I am going to build a immersion chiller with it and don't want to screw up, so do I use one of those spring thingies to bend so I don't kink it ? Do I need to heat the copper? should the coils be at the bottom or top or evenly spread out? What's your experiance with this? thanks


Reply With Quote
Old 03-19-2008, 11:45 PM   #2
JimC
Recipes

Apr 2007
Ottawa, Ontario, Canada
Posts: 294
Liked 2 Times on 2 Posts


`It can be bent by hand, but you might kink it, so one of those coil things is advisable. Also finding a round form to bend it around is handy. No need to heat it.


Reply With Quote
Old 03-19-2008, 11:46 PM   #3

I bent mine around the deep fryer basket that came w/ my turkey fryer. Actually I formed it to the inside. It was too big otherwise, too much material was near the edge of the kettle.

I used the spring bender to do the top 90's leading out of kettle.

I used 50' though. Its really efficient.



__________________
Success is getting what you want. Happiness is wanting what you get. - Dale Carnegie

On Tap; Special Export, Spring SmaSH Summit, House Amber.

BS Nano-Brewery

|Myeast 50327|Easy Hop Oast|Smoked Homebrew|


Reply With Quote
Old 03-20-2008, 01:52 AM   #4
IrregularPulse
Hobby Collector

IrregularPulse's Avatar
Recipes

Nov 2007
Posts: 51,450
Liked 3511 Times on 3325 Posts


Whats this spring thingamigyg you speak of? I will be making an IC soon and haven't heard of this yet.
__________________
Tap Room Hobo

I should have stuck to four fingers in Vegas.


Reply With Quote
Old 03-20-2008, 02:03 AM   #5
Bobby_M
Vendor and Brewer

Bobby_M's Avatar
Recipes

Aug 2006
Whitehouse Station, NJ
Posts: 23,333
Liked 1765 Times on 1122 Posts


You can bend the coil by hand around a form, jut don't try to get any tight 90 degree turns.
__________________
Welcome to BrewHardware.com. I love you.
New Stirplates are IN!
Chugger Pumps, Pump Kits, Camlocks, Sightglasses, Clear USA made Silicone Tubing, RIMS, Electric Install Parts, etc.


Reply With Quote
Old 03-20-2008, 02:18 AM   #6

Quote:
Originally Posted by IrregularPulse
Whats this spring thingamigyg you speak of? I will be making an IC soon and haven't heard of this yet.
This is a set. You slide them over the tubing and bend it. The tubing will bend but the pressure will only be on the outside. The inner part that would otherwise kink will slide inside the spring coil so it gets a clean good radius. It very simple and easy to use. I never got a kink and I bent up to a 90 very easily.

__________________
Success is getting what you want. Happiness is wanting what you get. - Dale Carnegie

On Tap; Special Export, Spring SmaSH Summit, House Amber.

BS Nano-Brewery

|Myeast 50327|Easy Hop Oast|Smoked Homebrew|


Reply With Quote
Old 03-20-2008, 03:28 AM   #7
Nwcw2001
Recipes

Nov 2005
Superior, CO
Posts: 267
Liked 6 Times on 6 Posts


Get a corney keg, either own or borrow, and wrap it around the keg. It will fit nicely into just about any boil kettle. Straighten out the copper and start the coil and spin the keg as you wrap it, that way you stay close to the keg and minimize the chance for a kink.


Reply With Quote
Old 03-20-2008, 08:42 AM   #8
hammer one

hammer one's Avatar
Recipes

Jan 2008
Posts: 292

Thanks for all the advice. I've got a spring and a corny keg so I'm shure evrything will go just fine


Reply With Quote
Old 03-20-2008, 10:12 AM   #9
mrbowenz

mrbowenz's Avatar
Recipes

Dec 2007
Pennsylvania
Posts: 521
Liked 20 Times on 13 Posts


Here's a heat exchanger I recently did ( same as the IC ) , check it out:



Building a Heat Exchanger, or Immersion Chiller-they are pretty much one in the same.

This one is 1/2" OD type "L" copper :

So right out of the box , we are almost there, just need to re-coil the copper to the diameter I wanted:



Re-Coiled around my grain pot



I like to use rigid copper to add to the stability and shape, so I added an elbow, and a lenght of pipe back up to the top




With one side rigid, I used my helper to strip some 14/3 copper wire, he's cheap,very reliable, and I teach him everything I know




Reply With Quote
Old 03-20-2008, 10:13 AM   #10
mrbowenz

mrbowenz's Avatar
Recipes

Dec 2007
Pennsylvania
Posts: 521
Liked 20 Times on 13 Posts


With a long piece of bare copper, I start the braiding process, I believe the equal spacing inproves the efficiency of the heat exchange, it also serves to add strenght to the shape.The process is, around the pipe, then 3 twists, then repeat. I use a scrap piece of 3/4" wood to keep the spacing even, a clamp completes the task



Finished with braiding, see how it stands on it's own, next up to solder each pipe to the riser on the vertical side



After a good cleaning, I solder each coil to the vertical pipe, this is a pain, but really worth the effort. Again, a few clamps make the job easier--- hint, lower your torch a bit, and use plenty of flux. Once finished, clean all joints with steelwool.

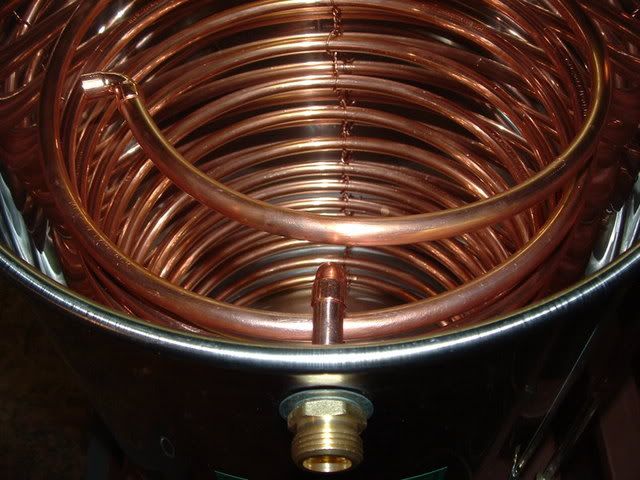

Installed into kettle, connected I/O, pretty simple
