Default Tube & Shell Heat Exchanger

So, after several years of brewing and using a whole myriad of different equipment...I have come to this project. It has been a long time coming, because it requires tools that are beyond the average DIY'er. However, I am not the average DIY'er. Over the last few years, my interests have bounced between welding, machinery restoration, machining, etc. etc. So, now that I have the tools to make big things happen, I thought I would take some spare parts I had laying around, and make them useful.

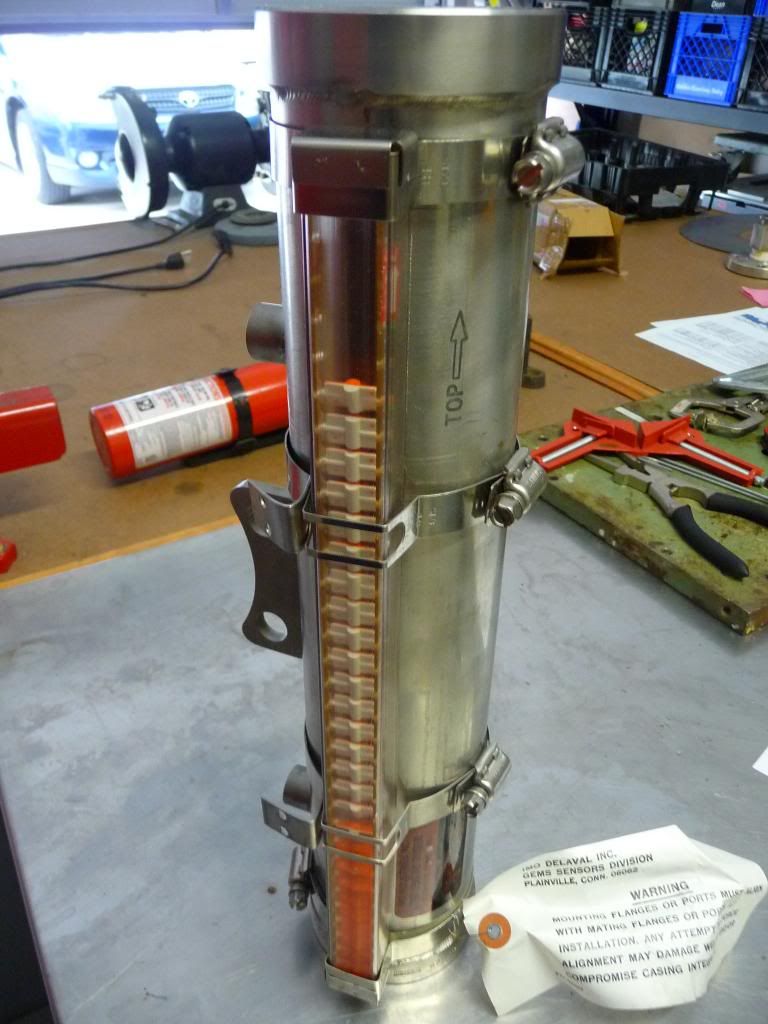

I had a GEMS Sensors Liquid Level Indicator from about 3 years ago....an Ebay score. These have a magnetic float in the tube that makes the outside "flags" in the sight gauge go red or white based on the position of the magnet. Kept it because it's 316SS and I got it cheap. Plus, it was awesome! The end caps are a burly 3/4" of solid 316SS! And, not to mention, the tube itself is approx 1/8" thick. Doesn't sound like much until you pick it up...this thing was built for a special purpose, and I'm sure it wasn't cheap.











ScubaSteve is offline
2
People Like This
Reply With Quote
Old 10-21-2013, 02:01 AM   #2
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,692
Liked 75 Times on 52 Posts
Likes Given: 11

Default

I also got a sight glass that I am going to try and incorporate...it is also heavily built and made from 316SS.







ScubaSteve is offline

Reply With Quote
Old 10-21-2013, 02:02 AM   #3
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,692
Liked 75 Times on 52 Posts
Likes Given: 11

Default

I had to cut off the ends so I could properly drill the holes; I just didn't have the capability to *safely* drill a 15" long cylinder. Plus, the sight gauge had a pair of stainless steel balls inside (LOL) that I had to get rid of. I have a Rage 2 chop saw that is just awesome, I highly recommend it. The blade runs a bit slower than the standard miter saw and actually machines the metal down, kind of like a cold saw, only this one is affordable I was sure to go VERY slow because of the thickness/hardness of the material.









ScubaSteve is offline

Reply With Quote
Old 10-21-2013, 02:03 AM   #4
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,692
Liked 75 Times on 52 Posts
Likes Given: 11

Default

Now that I had the ends off, I had to decide what size and configuration of tubing I would use. I did lots of surface area and volume calculations. On a whim I bought some 3/8" SS tube, thinking it would be the best size to prevent clogs. Later, I changed my mind and thought that 1/4" would give a lot more surface area (but require lots more holes and linear feet of tube). In the end I settled on both, to prevent clogging, improve flow, and because I wanted to use the 3/8" tubing I had just bought

I had to figure out how to drill through the 3/4" end caps. They don't look like much, but they definitely have some heft to them. From my other adventures with drilling stainless kettles, etc. I knew this was going to be a CHORE. I have a drill press, but didn't think I would have the same precision as my mill. SO, here is my milling machine in use! (CLICK FOR VIDEO!)




ScubaSteve is offline

Reply With Quote
Old 10-21-2013, 02:03 AM   #5
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,692
Liked 75 Times on 52 Posts
Likes Given: 11

Default

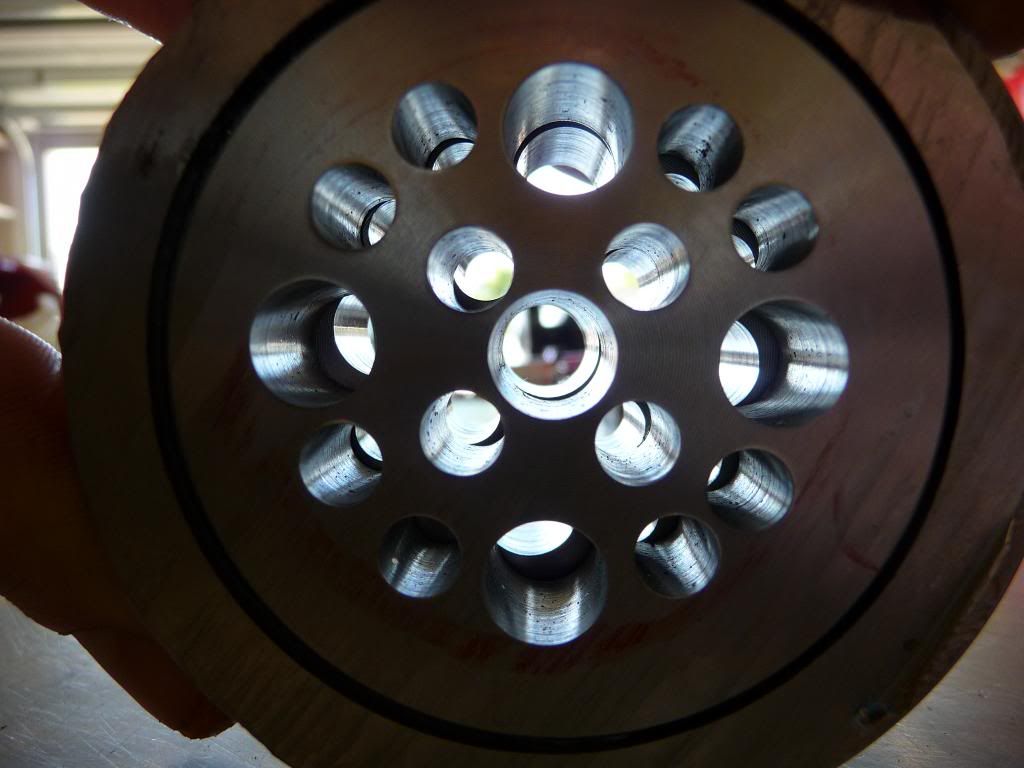

And here is where I am at so far....the holes are pretty concentric...I kind of eyeballed things on the mill and it shows. But hey, I'm a novice If I could do it again, I would have put the end caps together and drilled them simultaneously.....but that would have made a difficult job next to impossible. I used cobalt drill bits, LOTS of cutting oil, and patience. Suprisingly, I didn't break a single bit...a good thing since they're $12 a piece!!!!

Each cap will be welded back onto the main tube, and I will run the thin tubing straight through the small holes...I will then braze them in place with silver solder.










ScubaSteve is offline

Reply With Quote
Old 10-21-2013, 02:04 AM   #6
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,692
Liked 75 Times on 52 Posts
Likes Given: 11

Default

And here's what I got done this weekend...I bored out the water in/out with a 5/8 HSS drill bit. The fitting that was in there tapered down to about 1/4" on the inside, kind of like a flare coupler. So, I had to open it up or the heat exchanger would barely cool.





The finish inside was nowhere near what I achieved with the cobalt bits...but the HSS bit was what I had, and it doesn't matter too much since it will only be water flowing through these channels.



So, here are the parts laid out...I put the tubes in place to help with alignment.







ScubaSteve is offline

Reply With Quote
Old 10-21-2013, 06:24 PM   #7
WPStrassburg
Feedback Score: 3 reviews
Recipes

Join Date: Sep 2008
Location: Rochester, NY
Posts: 548
Liked 30 Times on 27 Posts
Likes Given: 1

Default

What kind of tease is this?

And you're holding out!!!

WPStrassburg is offline

Reply With Quote
Old 10-21-2013, 11:56 PM   #8
ScubaSteve
Feedback Score: 0 reviews

ScubaSteve's Avatar
Recipes

Join Date: May 2007
Location: New Bern, NC
Posts: 3,692
Liked 75 Times on 52 Posts
Likes Given: 11

Default

How DARE you! You violated my photobucket! Haven't been able to properly roll out the pics with a narrative...
ScubaSteve is offline

Reply With Quote
Old 10-22-2013, 12:35 AM   #9
WPStrassburg
Feedback Score: 3 reviews
Recipes

Join Date: Sep 2008
Location: Rochester, NY
Posts: 548
Liked 30 Times on 27 Posts
Likes Given: 1

Default

Would you rather I post the ones I took from your front bushes???

Keep up the good work!
WPStrassburg is offline
2
People Like This
Reply With Quote
Old 10-22-2013, 03:39 AM   #10
nebulous
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Location: Orlando, FL
Posts: 98
Liked 13 Times on 11 Posts
Likes Given: 94

Default

i was going to say, i saw this early and was really scratching my head but now its staring to make sense.
i just have to say that mill is stunning, some of the tools in your shop look like they could easily out live the lot of us.


__________________
Keg: air
primary: air
-
Universal Keg Cutting Jig
nebulous is offline
