Default single tier build

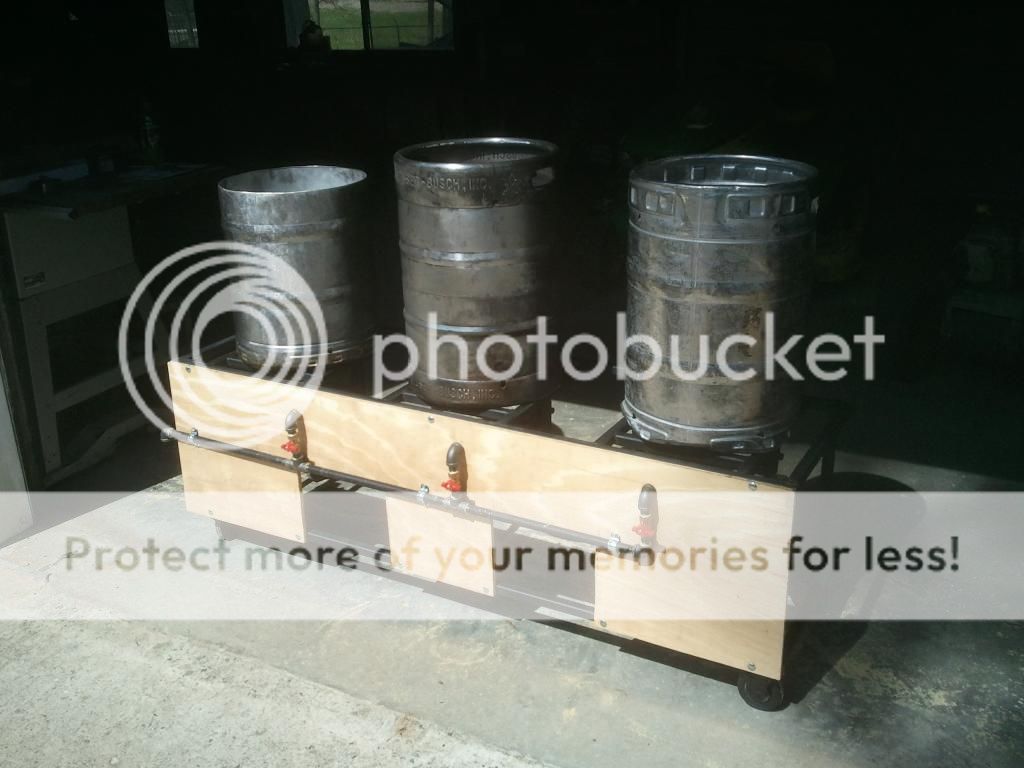

Heres a single tier that Iv been working on. The gass plumbing isnt done yet, but almost. I plan on puting wood on the sides like I did on the front.
From left to right will be my HLT, MT, and BK. On the left side (where the wood isnt on yet, I plan on mounting a water filter so I can go streight up to the HLT. On the right side (where ther wood isnt on yet), I plan on mounting a GFI power box to plug a pump/ pumps into. On the frount (under the BK) Im gonna mount a water chiller. Does it seem like my plans are in order, or are there any sudgestions on the way my configuration might work better?
thanks
spooky




MrSpooky is offline

Reply With Quote
Old 03-12-2013, 03:02 AM   #2
MrSpooky
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Posts: 40
Liked 2 Times on 2 Posts
Likes Given: 7

Default

85 views, zero replies,,,,,,,,,I recon its OK


MrSpooky is offline

Reply With Quote
Old 03-12-2013, 03:05 AM   #3
LKHA
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: Maynard
Posts: 204
Liked 2 Times on 2 Posts
Likes Given: 30

Default

not following the need for the wood.
__________________
Warning:
If you get advice on an electric brewing rig, you need to take it to a licensed electrician or two to have it looked over.
This stuff can kill you. When it comes right down to it, we're just some dudes on the internet.
I have seem some TERRIBLE advice on here in the past few months. I may even be guilty of bad advice myself.
LKHA is offline

Reply With Quote
Old 03-12-2013, 03:11 AM   #4
lumpher
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2009
Location: texas
Posts: 4,542
Liked 133 Times on 118 Posts
Likes Given: 17

Default

that wood is extraneous, and will even inhibit air-flow. i wouldn't use it
__________________
Taps:
1: APA 2: Notso Mild 3: Hefe 4: Belgian Dark Strong
5: Barkshack Mead 6: Cabernet Wine
Fermenting: APA
lumpher is offline
MrSpooky Likes This
Reply With Quote
Old 03-12-2013, 03:54 AM   #5
MrSpooky
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Posts: 40
Liked 2 Times on 2 Posts
Likes Given: 7

Default

AAAAAHHHHH thanks! for the wood, the #1 the reason for it was to have something to facine the gas pipe and other stuff to. The #2 reason was because I kept reading about "shields" around the burners to keep a even constant flame without the wind effecting it. Thought Id kill 2 birds with one stone. Is it not a good Idea?
Thanks for the replies. I like to hear different opinions so I can form a conclusion for myself. Granted, for the most part I (myself) am wrong on most things, or maby Im just mistaken, but regardless,,,,.....
Im new at this, but I dont follow somehing just because someone says so. Just a question, how would the wood inhibit the air flow? Usualy when I run burners (on different apperatus) I gotta choke the air way down to get a good hot blue flame. I will def do a test run before everything is put together and see if the air flow is a issue. Maby Ill mock up some sides and tape them on before I go through the trouble of bolting them on. Thanks for pointing that out! Id have been pissed off if I would have put all that together just to find out that it all needed to come off.
MrSpooky is offline

Reply With Quote
Old 03-12-2013, 04:14 AM   #6
GALLOWAY
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2013
Posts: 11
Likes Given: 3

Default

You will have plenty of air flow on the other 3 sides of that stand. I wouldn't worry about having the wood on there. Like you said, you want to be able to fasten things to it. Looks good.

If there is an issue you can always get a hole saw and drill a couple breather holes in it. Most people run into problems when they put shields around the burner themselves then set a pot right on the shield with no place for the exhaust gases to go and it kills the flame.

Reason: spelling
GALLOWAY is offline

Reply With Quote
Old 03-12-2013, 05:00 AM   #7
mikescooling
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Chicago, IL
Posts: 1,920
Liked 243 Times on 189 Posts
Likes Given: 246

Default

I just did the first brew on my new single tier. I found you have to plan where the fire is going to vent around the keg, FYI. The stand looks nice what gauge is the steel? Chuggar is haveing a sale on Pumps now.
http://www.homebrewtalk.com/f11/chug...-promo-394171/
mikescooling is offline

Reply With Quote
Old 03-12-2013, 11:30 AM   #8
MrSpooky
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Posts: 40
Liked 2 Times on 2 Posts
Likes Given: 7

Default

I think I have enough room for the flame. That still is a small concern for me though. The stand is 20" deep, and the burners are the small 6" ones. So just off the top of my head, Im thinking that theres about 6" from the edge of the burner to the wood....... the frame is 1" stock and I think its 12g (its right at a 1/4" thick.
spooky
MrSpooky is offline

Reply With Quote
Old 03-12-2013, 11:37 AM   #9
grainbill
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2013
Posts: 242
Liked 23 Times on 22 Posts
Likes Given: 158

Default

you may need to use some "HardyPlank" or such to protect the wood. A co brewer has a wooden frame system. He cut a couple of "fat" T's from the siding and just hangs them between the side and the burner. Only needs them for the BK
grainbill is offline

Reply With Quote
Old 03-12-2013, 03:52 PM   #10
rekoob
Feedback Score: 0 reviews

rekoob's Avatar
Recipes

Join Date: Feb 2011
Location: Norfolk, VA
Posts: 1,347
Liked 88 Times on 76 Posts
Likes Given: 11

Default

I like the idea for mounting and such but with your keggles sitting right on the stand and no real shield for the wood and the wood mounted right to the stand I am wondering if you are going to have problems. Might not have any issues at all but I know my stand gets hot and I made heat shields that keep a lot of heat off my stand (my paint job still looks great after countless batches), let us know how it works out.
