Old 02-06-2013, 10:28 PM   #1
michaelm
Recipes

Mar 2009
Franklin,Ohio
Posts: 142
Liked 2 Times on 1 Posts



I know it's been forever since I have posted anything on here so I thought I would share... Sorry for the wall of txt and pics but... well its worth it

Took a break from airguns in the shop and decided it was time to build myself a nice kegarator.... I am so tired of bottleing my beers and quiet honest tired of having that many beer bottles sitting around so it is time to move to kegs

Basicaly I started out with a plain white chest freezer so I had to build a collar for the taps to come through....

I also decided to attach the collar to the lid so the whole thing lifts up instead of the freezer body for 2 reasons as well... First so I didnt have to lift full kegs another 8+ inches to get them into the freezer and second when putting kegs into the freezer I dont have to dodge tap shanks and barbs and maybe break something/knock something loose.... this way when I open the lid the whole collar lifts up moving the taps/shanks and most the hosing right up outta the way.....

first step was to build the collar and attach it to the lid.... I did this by removing the stock seal around the lid and measuring the groove that the seal sits in.... then I took some 4 inch tongue and groove boards and ripped them down the middle into 2 2inch wide boards one with a tongue one with the groove... the tongue boards got cut to make a box that snaps into place in the stock grooves on the lid..... then around that I measured and cut the 1x8 popular boards that makeup the body of the collar itself then cut the 2 inch groove boards to fit inside the bottom of the box making a new groove for the factory seal to snap in place.... collar snapps into the lid the seal snaps into the collar and it all fits back together like it was made that way

groove in lid


top of collar with tongue


bottom of collar with groove


Then I laid out the holes for the tap handles and the cutout for the PID controller I am using to control the freezer temps.... snapped everything together for a test fit.



Now I started the stain... after spending alot of money of a high quality stain and testing it on some scraps I was VERY dissapointed.... this popular has some very nice grain but the stain just covered it up and made the wood look "muddy" instead of pretty and nice wood.... so did some research and learned that stains are mostly opaque dyes and have a tendancy to cover the grain and what I needed was a wood DYE they color the wood but keep the grain nice and sharp and make it "pop" .... more research reveals wood dyes are not so cheap either but a great way to DIY it is to mix RIT dyes to get the color you want so thats what I did... 5 bucks worth of RIT dye later and I have this sexy color starting to emmerge




couple more coats of that to get to the nice dark reddish brown I was looking for and time to seal it up





Now for the freezer.... no way was it staying white so I filled in some small dents and scratches masked off the front 5 inches of the lid and painted it with chalkboard paint so I can write right on it whats in each tap then painted everything else a hammered black finish...




then painted the rest of the freezer and control parts put it all together wired her up

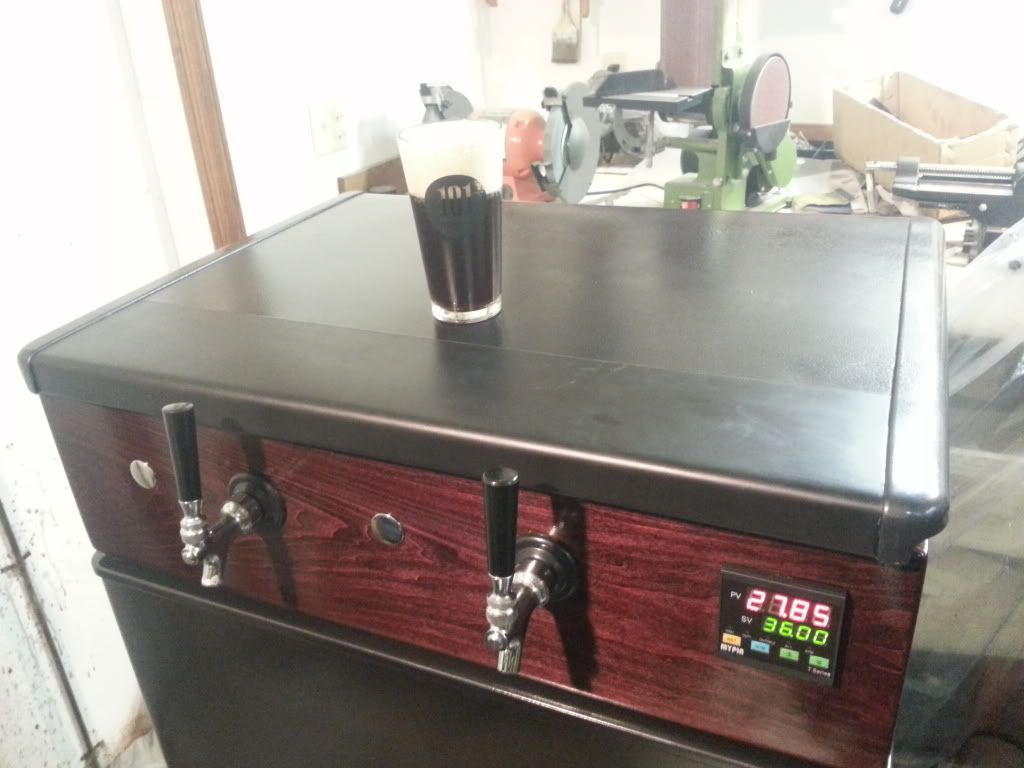

And lastly programmed the PID controller to hold the temps I want and poured myself a nice fresh from the tap beer



__________________
Quote:
Originally Posted by Laughing_Gnome_Invisible View Post
I'm smoking a fag right now. My neighbours can see, and I just don't care. They stopped me having fags in bars, but I'll be damned if they will stop me having fags in the privacy of my own home.

2
People Like This
Reply With Quote
Old 02-06-2013, 10:53 PM   #2
forcabrew
Recipes

Nov 2010
somewhere, Ct
Posts: 593
Liked 11 Times on 9 Posts


Nice job. Did you paint the rubber seal




Reply With Quote
Old 02-06-2013, 10:58 PM   #3
jmcvay131
Recipes

Jan 2013
Posts: 104
Liked 3 Times on 3 Posts


Wow I'm actually jealous, great job.


Reply With Quote
Old 02-06-2013, 11:39 PM   #4
NivekD
Recipes

Dec 2012
West Jordan, Utah
Posts: 664
Liked 101 Times on 83 Posts


One of the nicest ones I've seen. Great job.
__________________
Bottled: Mexican Cerveza, Irish Stout, some Blue Moon clone, Pepper Ale, Full Hard Lemonade, Russian Imperial Stout, My first attempt at Mead (JAOM), Black Pearl Porter
Kegged: Blue Moon clone, Irish Red Ale
On Deck: Citra Hop Bomb (small batch) and Cream of Three Crops

_______________________________________________

Never underestimate the power of stupid people in large groups.


Reply With Quote
Old 02-07-2013, 12:44 AM   #5
mk3vr666
Recipes

Oct 2011
malvern, pa
Posts: 3
Liked 2 Times on 1 Posts


Drip tray or no?


Reply With Quote
Old 02-07-2013, 01:22 AM   #6
RWB1
Recipes

Jan 2013
STILLWATER, NEW YORK
Posts: 40
Liked 1 Times on 1 Posts


Can we see a shot of the inside...and how did u attach the lid to the wood riser?

Excellent job by the way...very nice.


Reply With Quote
Old 02-07-2013, 02:59 AM   #7
Bonas96
Recipes

Jan 2013
Avon, Indiana
Posts: 34
Liked 2 Times on 2 Posts


Where did you get the temp controller? Easy to setup/install?


Thanks!


Reply With Quote
Old 02-07-2013, 05:38 AM   #8
michaelm
Recipes

Mar 2009
Franklin,Ohio
Posts: 142
Liked 2 Times on 1 Posts


Quote:
Originally Posted by forcabrew View Post
Nice job. Did you paint the rubber seal
Nope I left it white.. in the picture with the lid open you can see how it sits back from the edge a bit so when its closed unless y ou get down eye level with it you cant really see the seal anyways so I left it be...

Quote:
Originally Posted by mk3vr666 View Post
Drip tray or no?
Yup just need to attach it.... going to go the 9 dollar stainless steel smoker box from lowes route and attach magnets and use it for the drip tray.... they honetsly look VERY good in person... not cheesy at all...

Quote:
Originally Posted by RWB1 View Post
Can we see a shot of the inside...and how did u attach the lid to the wood riser?
Excellent job by the way...very nice.
I only have one Keg in it right now but I can go take a pic tomorrow of the inside.... I still need to route the wires for the controller neatly and insulate the inside of the coller but since its damned cold out here and this is staying in the garage for now I wasnt to worried.... needed to get it out of the shop so I can get started on the grainmill I am starting tomorrow....

If you go back and look at the first 2 pictures in the post the groove in the lid just litteraly snaps into place on the tongue thats on the top of the collar no need for glue or anything else as its a very very tight fit

Quote:
Originally Posted by Bonas96 View Post
Where did you get the temp controller? Easy to setup/install?
Thanks!
I got the PID controller the SSR(solide state relay needed for the high amp aplication of switching the motor on and off) and the RTD type pt100 temp probe all for right around 40 bucks
http://www.ebay.com/itm/New-Digital-...item20c5a9171e

I bought it from a different seller but this is the exact setup I started with....

its VERY easy to setup and wire especially if your familliar with electronics or really anytype of electrical wiring....... its not as simple as just plugging it in and plugging the freezer into it there is some rewiring of things that has to be done BUT you have alot of option with a setup like this too(that and it just looks REALLY cool )

there are a few settings you do need to set though that if you dont have them right can cause problems....

Thanks for the compliments guys I spent alot of time figureing and making it just right.... I am NOT a wood worker more of a metal fab guy so I took extra time and care to get the collar all smooth and pretty and the right color and such... that was to me the hardest and most labor intensive part of the build
__________________
Quote:
Originally Posted by Laughing_Gnome_Invisible View Post
I'm smoking a fag right now. My neighbours can see, and I just don't care. They stopped me having fags in bars, but I'll be damned if they will stop me having fags in the privacy of my own home.


Reply With Quote
Old 02-07-2013, 05:45 AM   #9
befus

befus's Avatar
Recipes

Feb 2012
Rogers, Arkansas
Posts: 585
Liked 16 Times on 15 Posts


What size freezer is that? I have something VERY similar in the works.
__________________
Award winning:
Northern Brown Ale


"Guess I'll watch some TV, cuz it's nice to see people more messed up than me."

Primary:
Bottled: Wee Ain't Heavy (Wee Heavy);
Kegged: Brown Rhyno Old Ale (Rye Knot+ clone); Second Amendment Vanilla/Bourbon Porter; Pale Ale (a'la EdWort's Haus Pale);
On Deck: Northern Brown; Kolsch; Apricot wheat,


Reply With Quote
Old 02-07-2013, 02:02 PM   #10
pannell77
Sponsor
Recipes

Apr 2012
Posts: 764
Liked 38 Times on 33 Posts


very nice looking
