Default Automated Rig Piping review

So this is my second build after I had one 10 gal herms system with one PID. I have been dreaming up this rig for a long time. It is going to be 99% sanitary 25 gal system, hard plumbed with auto valves and all triclovers. i have a ridiculous amount of tri-clovers and sanitary tubing already to be set up. I plan on running;

brewtroller- The full tilt with auto fill on BK and HLT
2 Pumps
5-2 way 12v valves
2-3 Way 12v Valves
2 burners- one on HLT and BK

Please let me know if you find any problems.

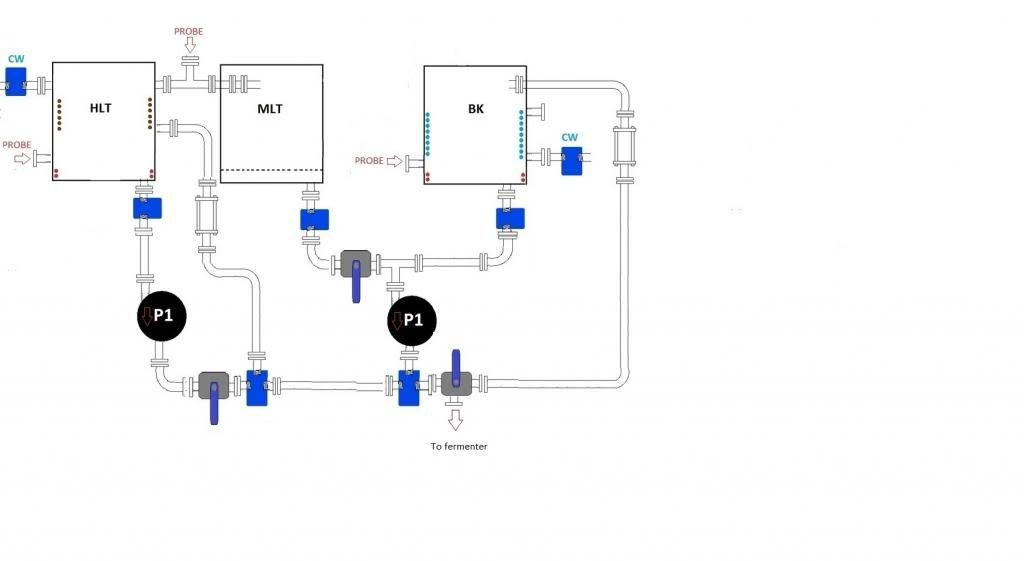

[IMG][/IMG]


kickflip_mj is offline

Reply With Quote
Old 02-05-2013, 04:58 PM   #2
kickflip_mj
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Posts: 1,062
Liked 104 Times on 71 Posts
Likes Given: 16

Default

bump


kickflip_mj is offline

Reply With Quote
Old 02-06-2013, 08:01 PM   #3
Peter_h
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2011
Location: Honolulu, HI
Posts: 167
Liked 7 Times on 7 Posts
Likes Given: 8

Default

What are the gray boxes w/ the blue levers? Are those manual valves?
__________________
My Keezer Build Thread
Peter_h is offline

Reply With Quote
Old 02-06-2013, 08:53 PM   #4
kickflip_mj
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Posts: 1,062
Liked 104 Times on 71 Posts
Likes Given: 16

Default

yeah I have three manual valves
kickflip_mj is offline

Reply With Quote
Old 02-06-2013, 08:59 PM   #5
tv187u
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2010
Location: SLC, UT
Posts: 161
Liked 4 Times on 4 Posts
Likes Given: 5

Default

Are you gravity feeding into the BK? otherwise I don't understand how you are going to get fluid from the MLT to the BK. Whats going to stop the fluid from going to the HLT coil?
tv187u is offline

Reply With Quote
Old 02-06-2013, 09:01 PM   #6
tv187u
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2010
Location: SLC, UT
Posts: 161
Liked 4 Times on 4 Posts
Likes Given: 5

Default

Wait... are the blue boxes supposed to be the 2 and 3 way 12v valves?
tv187u is offline

Reply With Quote
Old 02-06-2013, 09:31 PM   #7
mattd2
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2009
Location: Papamoa, New Zealand
Posts: 3,628
Liked 279 Times on 222 Posts
Likes Given: 56

Default

Reason for manual valve before P2? Without knowing the reason, I would look at removing it and relocating the valve after P1 to the HERMs line to control flow on both the strike/sparge and recirc.
mattd2 is offline

Reply With Quote
Old 02-06-2013, 10:37 PM   #8
kickflip_mj
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Posts: 1,062
Liked 104 Times on 71 Posts
Likes Given: 16

Default

Tv, those are 2 and 3 way 12v Valves. And no I am not gravity feeding the system, the valve under the MLT opens hits the pump and runs right. unless I am missunderstanding that the 3way valves are not in L config.
kickflip_mj is offline

Reply With Quote
Old 02-07-2013, 02:54 AM   #9
Peter_h
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2011
Location: Honolulu, HI
Posts: 167
Liked 7 Times on 7 Posts
Likes Given: 8

Default

Here are some comments/questions.

- The diagram has both pumps labeled as P1.
- Same Question as mattd2, what is the purpuse of the manual valve before P2 Inlet.
- Are you planning on recirculating the HLT water?
- Is the CW - cold water? as in your water supply? If so, why is there an additional one on the BK?
- Are you using a cooler?
__________________
My Keezer Build Thread
Peter_h is offline

Reply With Quote
Old 02-08-2013, 05:19 PM   #10
marcb
Feedback Score: 4 reviews
Recipes

Join Date: Apr 2012
Location: Santa Clara, CA
Posts: 1,108
Liked 187 Times on 130 Posts
Likes Given: 10

Default

where are you sourcing the automatic sanitary valves (and for 25 gallon I'm assuming 3/4" or 1") from and how much are they each? I looked around but couldn't find reasonable price ones for my psycho keg washer and want to automate the hell out of it too.


marcb is offline

Reply With Quote
