I finally have some time to post some pictures of my recent projects. For me, these little projects are what I love about home brewing the most (ok, well that and good beer ).

I'll start with the mash paddle since I just finished it yesterday. I am a Design Engineer for a company that manufactures custom s/s restaurant & hospital equipment. A big perk is getting to design equipment for my brewery in my free time. I used ProE for the design. The paddle section was cut on our laser using 14/3 s/s. The handle section is 1" diameter s/s tubing with the end capped and welded closed. I can't take credit for the fabrication of this because I had our best welder in the shop do it for me. He really did a great job.

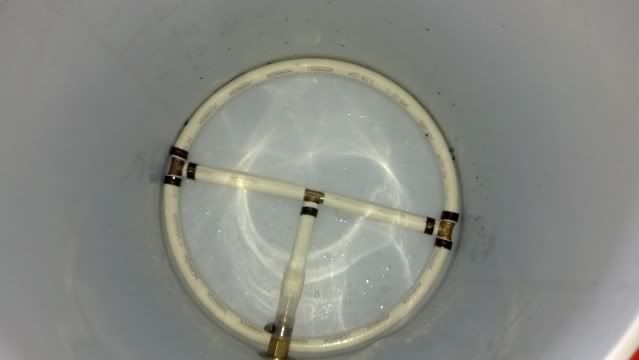

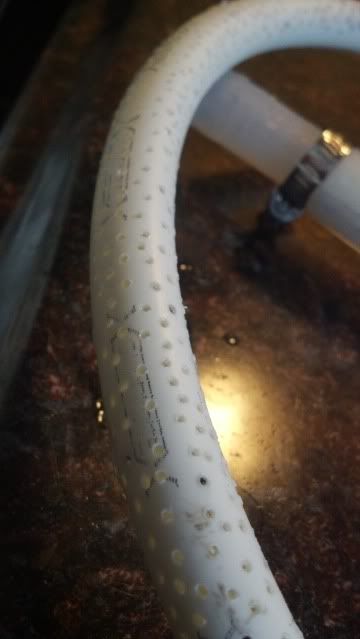

I decided to try the PEX manifold because I had some in my garage already, and I had read some good reviews from other brewers using it. It was very simple to make. I drilled 1/16" holes on the bottom. I wanted to brew a batch with it before making a post about it just to make sure it worked well. It does! I was previously using a s/s braid and it was getting really beat up. This thing is rock solid.

__________________
DIY stuff...
- Bar
- S/S mash paddle, PEX manifold


Reply With Quote
Old 01-26-2013, 07:13 PM   #2
Carlscan26

Carlscan26's Avatar
Recipes

Jun 2012
San Diego, CA
Posts: 782
Liked 58 Times on 53 Posts


Wow that's a lot of holes! Looks great!


Reply With Quote
Old 01-27-2013, 12:16 AM   #3
brew2enjoy
Recipes

Oct 2010
Delaware
Posts: 945
Liked 42 Times on 35 Posts


Yes lol, took me about 2 hours to drill all those holes. It was tedious but I tried it with the slots first and didn't like how it turned out so I re-did it with the holes.
__________________
DIY stuff...
- Bar
- S/S mash paddle, PEX manifold

Carlscan26 Likes This
Reply With Quote
Old 01-27-2013, 10:34 PM   #4
brew2enjoy
Recipes

Oct 2010
Delaware
Posts: 945
Liked 42 Times on 35 Posts


Forgot to mention that I did use the crimp rings but they weren't really necessary. It seemed to stay pretty snug without them but I added the rings just to be safe. The crimping tool is pretty expensive.
__________________
DIY stuff...
- Bar
- S/S mash paddle, PEX manifold


Reply With Quote
Old 02-08-2013, 12:41 PM   #5
jflongo
Recipes

Jan 2013
Posts: 1,229
Liked 64 Times on 57 Posts


Do you have dimensions for the manifold. Also, was the pvc bent already, or did you have to warm it up and bend it?


Reply With Quote
Old 02-08-2013, 12:52 PM   #6
Oldskooler
Forum Supporter

Oldskooler's Avatar
Recipes

Nov 2012
Leesburg, FL
Posts: 283
Liked 38 Times on 32 Posts


Man you have the patience of a saint to drill all those holes, but it looks great
__________________
Enjoy Life..it has an expiration date


Reply With Quote
Old 02-08-2013, 02:50 PM   #7
trent_77590
Recipes

Aug 2011
Fate (Rockwall), TX
Posts: 136
Liked 5 Times on 5 Posts


How do you plan on cleaning that manifold? I left mine so I could easily pull it apart and rinse the individual pieces


Reply With Quote
Old 02-08-2013, 02:54 PM   #8
NivekD
Recipes

Dec 2012
West Jordan, Utah
Posts: 664
Liked 101 Times on 83 Posts


Quote:
Originally Posted by jflongo View Post
Do you have dimensions for the manifold. Also, was the pvc bent already, or did you have to warm it up and bend it?
It's PEX and it's flexible unlike PVC.
__________________
Bottled: Mexican Cerveza, Irish Stout, some Blue Moon clone, Pepper Ale, Full Hard Lemonade, Russian Imperial Stout, My first attempt at Mead (JAOM), Black Pearl Porter
Kegged: Blue Moon clone, Irish Red Ale
On Deck: Citra Hop Bomb (small batch) and Cream of Three Crops

_______________________________________________

Never underestimate the power of stupid people in large groups.


Reply With Quote
Old 02-08-2013, 02:56 PM   #9
LoneTreeFarms
Recipes

Mar 2010
Fort Dodge, Iowa
Posts: 425
Liked 42 Times on 37 Posts


Quote:
Originally Posted by jflongo View Post
Do you have dimensions for the manifold. Also, was the pvc bent already, or did you have to warm it up and bend it?
I think he used pex tubing which is flexible. but like he said the disadvantage to this is the tool to crimp the rings is expensive.
__________________
Hangovers are the wrath of Grapes!


Reply With Quote
Old 02-08-2013, 03:17 PM   #10
wyowolf
Recipes

Jul 2012
Atlanta, Georgia
Posts: 350
Liked 22 Times on 18 Posts


I built a similar one , only rectangle for my Mash Tun. really easy to work with, but i just used SS hose clamps on it, pretty cheap. and It seems to work great and easy to take apart and clean, but so far i just back flush it and it seems to be fine. I cut slots in each section... very flexable stuff and so far 3 mashes and zero probs... running about 70% ave eff.


Reply With Quote
