Would that controller work for controlling a boil?


Reply With Quote
Old 04-14-2013, 03:16 PM   #23
sbrbrad
Recipes

Jun 2012
Dallas, TX
Posts: 21
Liked 1 Times on 1 Posts


Quote:
Originally Posted by Britinusa View Post
Would that controller work for controlling a boil?
I only use it to control the mash. To boil, I unplug the PID, plug both elements directly into the wall and let them go at it full blast. Gives me a rolling boil with 8 gallons.


Reply With Quote
Old 05-08-2013, 04:38 PM   #24
lstrowge

lstrowge's Avatar
Recipes

Apr 2011
Bremerton, Wa
Posts: 144
Liked 14 Times on 12 Posts


Subbed
__________________
Keg 1 - Sehr Gut Helles!
Keg 2 - Lou's Haus Pale Ale (Mosaic DH)
Keg 3 - Lou's Haus Pale Ale (Cascade DH)
Keg 4 - Mischief Belgian Blonde
Keg 5 - Fest Bier
Keg 6 - Mosaic ,Citra, Amarillo IPA


Reply With Quote
Old 06-14-2013, 07:56 PM   #25
CCrisfield
Recipes

Jun 2013
Posts: 12

Quote:
Originally Posted by sbrbrad View Post
I only use it to control the mash. To boil, I unplug the PID, plug both elements directly into the wall and let them go at it full blast. Gives me a rolling boil with 8 gallons.
Thanks for posting, this helps me out a lot. It is nice to find a simple, easy to follow PID setup as I am not very good with electrical stuff.

I am thinking of doing a similar setup, but plan on boiling ~13 gallons with 1500watt 120v elements. Do you think it would be a good idea to add a third element? How long does it take you to boil 8 gallons?


Reply With Quote
Old 06-15-2013, 07:29 AM   #26
CCrisfield
Recipes

Jun 2013
Posts: 12

Quote:
Originally Posted by Disintegr8or View Post

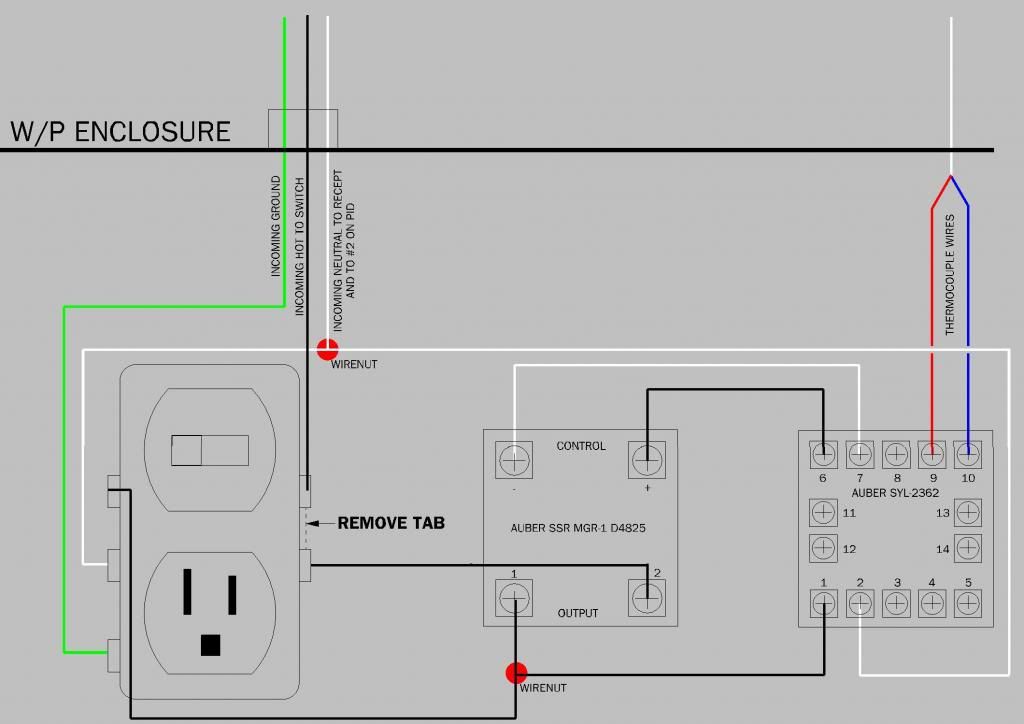

Wiring Diagram:
I am looking to build this same setup but with two (or three) elements hooked up to the same PID. I would like to do this so that I can leave all three elements plugged in and walk away without having to worry about overshooting my mash temp or boilovers (I plan on setting the target temp on the PID to just under boiling and then turning it on to manual mode once I am ready to watch it closely for the final few degrees.

Is this possible to do? I don't have any electrical experience so any input would be appreciated. I drew up a diagram of what I thought might work using an extra switch and SSR but this could be completely incorrect.

If anyone could let me know if I can change anything to make this work (short of buying another PID and thermocouple) it would be greatly appreciated!

Thanks!
Click image for larger version

Name:	120v PID.jpg
Views:	1608
Size:	21.1 KB
ID:	129180


Reply With Quote
Old 06-22-2013, 02:25 PM   #27
sbrbrad
Recipes

Jun 2012
Dallas, TX
Posts: 21
Liked 1 Times on 1 Posts


I would just like to add after a few months: Don't scrimp out and buy the cheaper PID off of Amazon like me. Buy the Auber. The Amazon one is a POS.
__________________
On Deck: Tank 7 Clone or Watermelon Wheat
Primary: EdWort's Apfelwein, Orange American Wheat
Kegged: Bee Cave Haus Pale
On Tap: Centennial Blonde, SNPA

P-J Likes This
Reply With Quote
Old 06-25-2013, 09:10 PM   #28
Abhitchc
Recipes

Jan 2013
Jackson, MS
Posts: 43
Liked 3 Times on 2 Posts


Great Job!


Reply With Quote
Old 06-26-2013, 02:10 PM   #29
lunchbox
Recipes

Oct 2009
North Carolina
Posts: 426
Liked 10 Times on 9 Posts


Quote:
Originally Posted by Disintegr8or View Post

Forgive my ignorance, but what is the plug on the left side of the kettle?
__________________
Resident Minarchist


Reply With Quote
Old 06-26-2013, 03:45 PM   #30
alien
Recipes

Apr 2012
Philadelphia, PA
Posts: 1,235
Liked 68 Times on 59 Posts


Looks like a second element not under PID control.

@sbrbrad which PID controller did you buy and what problems did you have?
