Default Step by Step build a 110v portable PID controller

After many requests, I finally have enough time to do a write-up on this.

It is my single element, 110v PID controller that I use on my eBIAB setup.



Credit goes to jkarp because I made mine from his original Countertop Brutus 20 Thread.


Parts needed:

Enclosure:
(1) 6x6x4 WP Box. (I am linking to Amazon for reference, I think they are cheaper at HD, Lowes, etc)

http://www.amazon.com/Carlon-E989N-C...atherproof+box

Combo Switch/Receptacle and Cover:

http://www.amazon.com/Leviton-109-05...tch+receptacle

2 to 3 feet bulk 12awg wire (hot, neutral, and ground)

http://www.amazon.com/Coleman-Cable-...bulk+extension

Replacement extension cord end

http://www.amazon.com/Coleman-Cable-...nsion+cord+end

Note. You can also simply buy a 12awg cord, and cut it to length. I was able to buy an end and 3' or wire cheaper than a complete cord, that is why I told you of either option.

1/2" Romex connector

http://www.amazon.com/Romex%C2%AE-Co...omex+connector

And you will need 2 wire nuts.

From www.auberins.com:

PID Controller SYL-2362

http://www.auberins.com/index.php?ma...roducts_id=106

Solid State Relay MGR-1 D4825

http://www.auberins.com/index.php?ma...&products_id=9

Heat Sink HS25

http://www.auberins.com/index.php?ma...products_id=45

K Type Thermocouple

http://www.auberins.com/index.php?ma...&products_id=2

That's it. Build pictures continued in next post.


Disintegr8or is offline
5
People Like This
Reply With Quote
Old 01-09-2013, 02:24 PM   #2
Disintegr8or
Feedback Score: 0 reviews

Disintegr8or's Avatar
Recipes

Join Date: Dec 2011
Location: , FL
Posts: 277
Liked 30 Times on 17 Posts
Likes Given: 3

Default

Wiring Diagram:


Enclosure parts:


PID Components:


You'll need to cut out for the receptacle on one side of the box.


You'll drill a hole for the Romex connector and slot the box for both the heatsink and thermocouple wire on the OPPOSITE SIDE of the box from the receptacle.

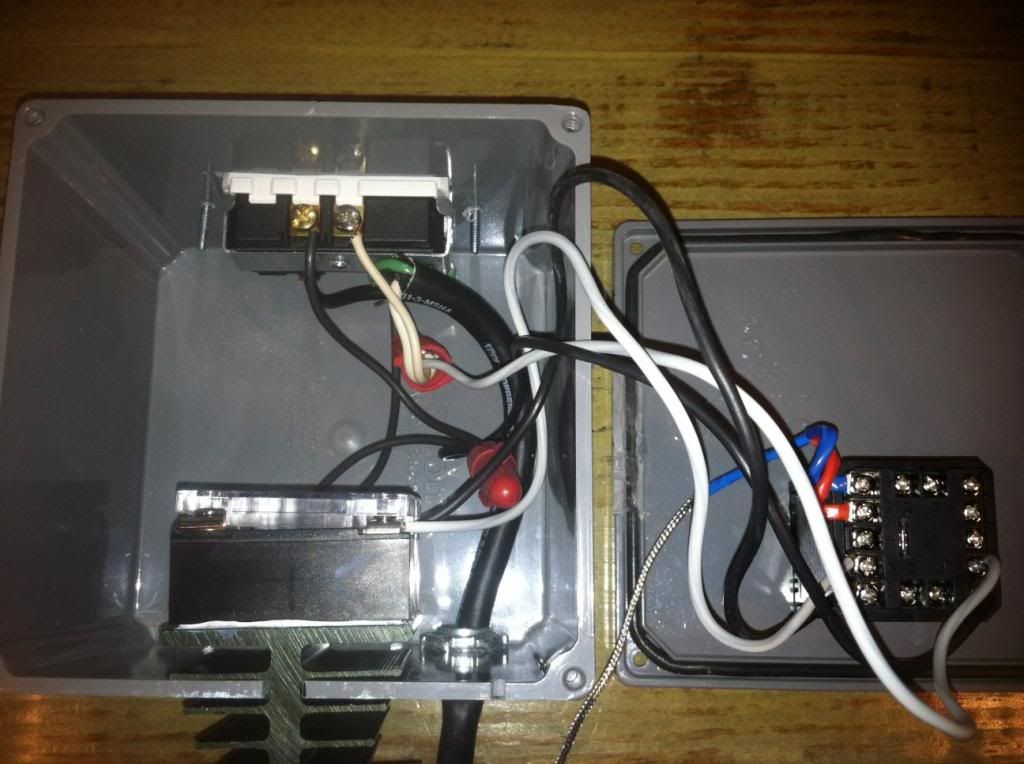

Everything installed and wired inside


Disintegr8or is offline
2
People Like This
Reply With Quote
Old 01-09-2013, 02:28 PM   #3
Disintegr8or
Feedback Score: 0 reviews

Disintegr8or's Avatar
Recipes

Join Date: Dec 2011
Location: , FL
Posts: 277
Liked 30 Times on 17 Posts
Likes Given: 3

Default

Assembled





In use



Disintegr8or is offline
3
People Like This
Reply With Quote
Old 01-09-2013, 02:29 PM   #4
milesvdustin
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Pensacola, Florida
Posts: 631
Liked 12 Times on 12 Posts
Likes Given: 23

Default

Looks good. I like your heat sink mounting idea, pretty clever.
__________________
Quote:
Originally Posted by djsethall View Post
It's like a big hot douche for my brewery.
milesvdustin is offline

Reply With Quote
Old 01-09-2013, 05:26 PM   #5
goybar
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2010
Location: Southern Maine
Posts: 253
Liked 6 Times on 6 Posts
Likes Given: 2

Default

Looks great.

I like the simplicity of it. Too me it keeps in the spirit of BIAB.

Chris
goybar is offline

Reply With Quote
Old 01-09-2013, 05:55 PM   #6
inhousebrew
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2012
Location: minneapolis, minnesota
Posts: 1,454
Liked 126 Times on 113 Posts
Likes Given: 36

Default

heat sink idea is great. I struggled with that when putting together my setup.
__________________
I hate Walder Frey...
inhousebrew is offline

Reply With Quote
Old 01-09-2013, 06:18 PM   #7
jhall4
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2012
Location: Pleasanton, California
Posts: 151
Liked 13 Times on 12 Posts
Likes Given: 5

Default

This is the perfect post for me. Exactly what I needed to build exactly what I want exactly when I was putting project together!

I'm not very familiar with this sort of electronics, so this is a really big help!

Thank you very, very much for putting this together!!
jhall4 is offline

Reply With Quote
Old 01-10-2013, 05:06 PM   #8
alien
Feedback Score: 1 reviews
Recipes

Join Date: Apr 2012
Location: Philadelphia, PA
Posts: 1,235
Liked 65 Times on 58 Posts
Likes Given: 61

Default

I made some pretty similar design choices for my 110v PID, including the exact same box! I wanted an E-stop on mine but it was probably overkill.
alien is offline

Reply With Quote
Old 01-10-2013, 08:05 PM   #9
Disintegr8or
Feedback Score: 0 reviews

Disintegr8or's Avatar
Recipes

Join Date: Dec 2011
Location: , FL
Posts: 277
Liked 30 Times on 17 Posts
Likes Given: 3

Default

Quote:
Originally Posted by alien View Post
I made some pretty similar design choices for my 110v PID, including the exact same box! I wanted an E-stop on mine but it was probably overkill.
You just blew my mind. That is pretty damn cool.
Disintegr8or is offline
2
People Like This
Reply With Quote
Old 01-11-2013, 01:00 AM   #10
alien
Feedback Score: 1 reviews
Recipes

Join Date: Apr 2012
Location: Philadelphia, PA
Posts: 1,235
Liked 65 Times on 58 Posts
Likes Given: 61

Default

Thanks. If only I had done a really nice photo series and great tutorial.
