Old 07-26-2012, 06:27 AM   #1
rick689
Recipes

Oct 2009
Brighton, MI
Posts: 34
Liked 1 Times on 1 Posts



To convert from a 16 gram CO2 cartridge to a paint ball tank.
you need a few simple parts and tools
Get a 3/4 MIP reducer with the thread size you plan to use for your hose fittings. Tractor Supply is a great place to find all the parts you need
get a standard red hose washer and some poly hose or gas line which ever you would like to use.
you will need a CO2 tank and a regulator
get a fitting to connect to the reducer it can be a barb fitting or a quick release.
Metal works but it's heavy and tips the bottle. Plastic is better because its lighter but you can have burrs.
Put teflon tape on the reducer about 3 wraps remove the cartridge holder and insert the rubber hose washer so it's flat then
thread in the reducer and check for leaks.
If you have a miller draft or coors tap then use a 5/16 washer. Remove the rubber seal inside the tap and push the long side through the washer then with the short side down put it back in the tap. Once that is done then follow the instructions above.
I know the threads are different but the reducer will thread into both taps.

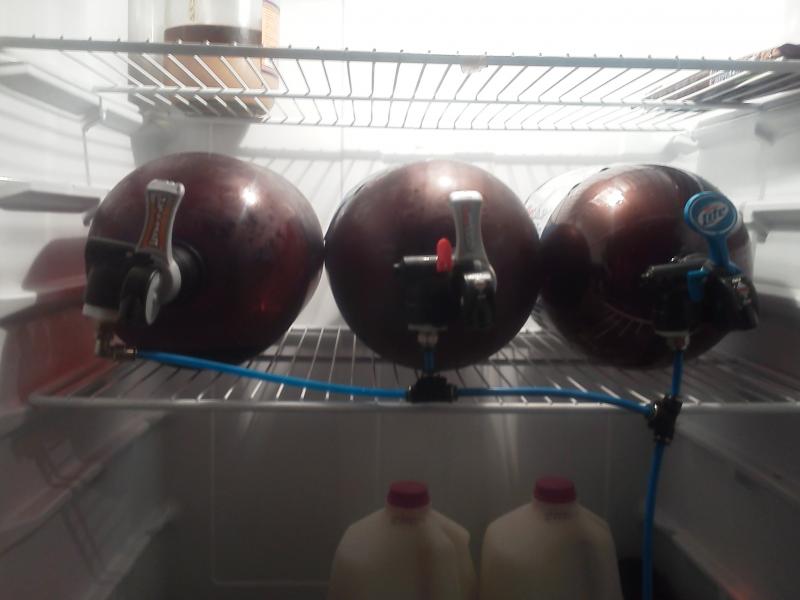

if you want more then one tap then repeat and and a tee fitting. I have three taps going at a time.
I have been using this set up for over a year and filled my last 20oz tank in May since then i have pushed out 15 gallons of beer and 3 gallons of root beer carbonited all of it and I still have over half a tank CO2.
If you have any questions just ask
Click image for larger version

Name:	Tad adapter.jpg
Views:	1773
Size:	31.7 KB
ID:	69715   Click image for larger version

Name:	IMG_20120612_201320.jpg
Views:	1797
Size:	39.5 KB
ID:	69915

jrodskreet Likes This
Reply With Quote
Old 09-15-2012, 02:18 AM   #2
rick689
Recipes

Oct 2009
Brighton, MI
Posts: 34
Liked 1 Times on 1 Posts


Here is a link to the adapter I use this fitting threads into both the Miller/Coors taps and the Tap-a-draft even though the threads are different. the Tap-a-draft uses the standard 14 pitch thread and the Miller/Coors uses a 7 pitch thread
http://www.tractorsupply.com/green-l...in-fpt-2114570
let me know how your projects turn out or if you'd like a video on how to make it.


Reply With Quote
Old 09-15-2012, 02:59 AM   #3
FuzzeWuzze
I Love DIY

FuzzeWuzze's Avatar
Recipes

Jun 2012
Newberg, Oregon
Posts: 3,083
Liked 416 Times on 306 Posts


You should move this post to the DIY section, just FYI a mod probably will.


Reply With Quote
Old 09-16-2012, 01:22 PM   #4
jrodskreet
Recipes

Jan 2012
lake, ms
Posts: 161
Liked 3 Times on 3 Posts


This is awesome! Never thought to reuse them. My friend keeps one in his fridge (with Miller of course)


Reply With Quote
Old 10-17-2012, 10:45 AM   #5
rick689
Recipes

Oct 2009
Brighton, MI
Posts: 34
Liked 1 Times on 1 Posts


here is a link on how to assemble the parts if you are using the original tap-a-draft you do not need to remove the rubber piece from the tap nor do you use the metal 5/16 washer


Reply With Quote
Old 11-19-2012, 02:37 AM   #6
rick689
Recipes

Oct 2009
Brighton, MI
Posts: 34
Liked 1 Times on 1 Posts


If you have a small leak from the small hole on the back of the tap use a bit of silicone to plug it.


Reply With Quote
Old 12-24-2012, 03:20 PM   #7
Ms2004hs
Recipes

Dec 2012
Posts: 2

i got the reducer and washers but still to short do you have to trim some ot the psarts that fit in to it?


Reply With Quote
Old 12-26-2012, 09:56 AM   #8
rick689
Recipes

Oct 2009
Brighton, MI
Posts: 34
Liked 1 Times on 1 Posts


There are 3 basic parts the 3/4 reducer the 5/16 metal washer and the flat style hose washers. I prefer the red or black ones. you should not have to cut the thin plastic on the miller/coors bottle the plastic will stretch and deform a little. you can try doubling the hose wshers to see if that helps. let me know how it goes


Reply With Quote
Old 03-19-2013, 07:44 PM   #9
Ms2004hs
Recipes

Dec 2012
Posts: 2

I try this but it leaks very bad what i am doing wrong?


Reply With Quote
Old 03-20-2013, 10:59 AM   #10
rick689
Recipes

Oct 2009
Brighton, MI
Posts: 34
Liked 1 Times on 1 Posts


If you are still getting leaks after applying 3 to 4 wraps of Teflon tape. you may also be over tightening it I like to tighten it by hand then put it under water and tighten till the bubbles stop. last fix is to put a dap of silicone around the thread tighten and let it sit for a day to dry after that you should have no leaks and great beer


Reply With Quote
