Old 07-21-2012, 05:08 PM   #11
mikescooling

mikescooling's Avatar
Recipes

Jan 2012
Chicago, IL
Posts: 2,007
Liked 270 Times on 204 Posts


I'm not 100% clear on this, but it seems like the more plates will allow for less tap water pressure drop = cold water filling most plates at a higher pressure. Read the intro to the plate chiller page and tell me what you think about pressure and temp and amount of plates vs longer plates with the same cooling times. I don't mean to hijack this thread.
http://www.dudadiesel.com/files/beerwortchart.pdf

voodooray Likes This
Reply With Quote
Old 07-21-2012, 05:18 PM   #12
makomachine

makomachine's Avatar
Recipes

Jun 2011
Tuttle, OK
Posts: 970
Liked 18 Times on 16 Posts


How do you keep the break material out of the fermentor when you use a plate chiller?
__________________
Kegged: Waldo Lake Amber, Notty as Helles, Vanilla Porter, Sweet Stout (nitro), NB Surly Furious Clone, Petite Saison D'ete, Le Seigle Belge Saison, BM Cream of 3 Crops, Edworts Apfelwein
Bottled: Nada!
In Process: Braggot
Upcoming Brews: Surley Furious Clone, Uintah Wyld


Reply With Quote
Old 07-21-2012, 05:35 PM   #13
mikescooling

mikescooling's Avatar
Recipes

Jan 2012
Chicago, IL
Posts: 2,007
Liked 270 Times on 204 Posts


I don't, the break and some bits of hops all get sent through the plate chiller. When I'n cleaning up hot PBW gets pumped around the system, then I back flush, then flush every possible way. Before each brew day, I pressure cook it at 15psi for 15min.


Reply With Quote
Old 07-22-2012, 12:50 PM   #14
clblittle
Recipes

Oct 2011
Asheville, NC
Posts: 14
Liked 4 Times on 3 Posts


Quote:
Originally Posted by Basevol View Post
Just about to order from him,I've been looking at them all week. I'm just not sure which fittings I want to get, any suggestions
I got mine with garden hose fittings for the water side, 1/2 male NPT for the wort side. Then went ahead and put some quick connectors from bargain fittings on it. Couldnt be happier with it.

Like I said earlier I returned one, it was garden hose on the water side and hose barbs on the wort side. I decided that I didnt want to mess with removing from the hose barbs and sent it back. It too, is an option that may work for some.

By the way, with garden hose outlets on the water out side I hook it up to a sprinkler in my garden. ZERO waste IMO.


Basevol Likes This
Reply With Quote
Old 07-22-2012, 03:46 PM   #15
makomachine

makomachine's Avatar
Recipes

Jun 2011
Tuttle, OK
Posts: 970
Liked 18 Times on 16 Posts


Quote:
Originally Posted by mikescooling
I don't, the break and some bits of hops all get sent through the plate chiller. When I'n cleaning up hot PBW gets pumped around the system, then I back flush, then flush every possible way. Before each brew day, I pressure cook it at 15psi for 15min.
Pressure cooking is a great idea and obviously gets rid of any "bugs" that might be lurking. I try to keep as much break material out of my fermentor as possible. I always get some in there, which doesn't hurt the beer, but I don't like losing volume to it when I'm done in primary. I'm also starting to harvest yeast and want to avoid break material for that as well given I'm in carboys and not a conical. What loss do you usually have when all is said and done?
__________________
Kegged: Waldo Lake Amber, Notty as Helles, Vanilla Porter, Sweet Stout (nitro), NB Surly Furious Clone, Petite Saison D'ete, Le Seigle Belge Saison, BM Cream of 3 Crops, Edworts Apfelwein
Bottled: Nada!
In Process: Braggot
Upcoming Brews: Surley Furious Clone, Uintah Wyld


Reply With Quote
Old 07-22-2012, 05:51 PM   #16
fpweeks

fpweeks's Avatar
Recipes

Oct 2011
shohola, pa
Posts: 741
Liked 37 Times on 30 Posts

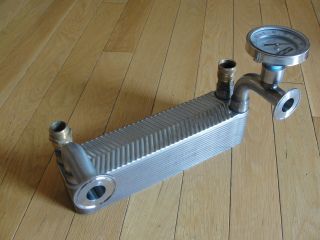

Picked one up last month and love it. Now I'm done with cleanup where I used to be pulling my immersion chiller out of the brew pot!
Click image for larger version

Name:	image-3965321042.jpg
Views:	1351
Size:	44.8 KB
ID:	69280
__________________
One way or another, this week will end with a homebrew.......

https://www.facebook.com/pourhousebrews


Reply With Quote
Old 07-22-2012, 06:39 PM   #17
mikescooling

mikescooling's Avatar
Recipes

Jan 2012
Chicago, IL
Posts: 2,007
Liked 270 Times on 204 Posts


Funny you should ask that Makomachine, my only brew day this summer, because the weather turned hot, was today. I'm feeling lazy and didn't want to hook up the pumps. I did gravity feed to the plate chiller then into the carboy; so I only used short runs of hose 12"-18" (no pump) it worked great!!! I even used my kitchen sink as a cold water supply, still worked great, Plate chiller cooled the boiling wart down to 80F as fast as it could go in the carboy! My losses were small, what was in the lines and plate chiller was about a 1L max. Keep in mind at the end of each brew I save some wart for the next starter. So the last 32oz in the keggel was put in mason jars and canned for the next APA starter. So I lost one 32oz and saved 32oz.


Reply With Quote
Old 07-22-2012, 10:11 PM   #18
gunmetal
Recipes

Apr 2010
Ohio
Posts: 196
Liked 15 Times on 13 Posts


I also use the big 30 plate like yours. Mine has 1" socket weld fittings on it, so that I could weld in some tri clover fitings. I also had to weld in some 3/4" pipe fittings for the garden hose fittings. He has new models like yours that are more "beer friendly". I don't believe that was available back when I got mine. I was able to cool down to just above 70 degrees because my ground water was only that temp. I used a small ice bath to get below 68 degrees, which is usually my target before pitching yeast. I love my chiller. In the spring and fall, my ground water is cool enough on its own. This summer has been especially warm, so the ground water is warmer than normal.


Reply With Quote
Old 07-22-2012, 11:51 PM   #19
Schumed

Schumed's Avatar
Recipes

Feb 2011
Kansas City, Mo
Posts: 1,117
Liked 83 Times on 69 Posts


I was just about to post a thread about the Duda Diesel Platte chiller just used the 40 Platte chiller for the first time...wow! It was instant...great product...can't believe I've been brewing for two years like an animal using an immersion chiller
__________________
"To alcohol! The cause of... and solution to... all of life's problems,"

jclucca Likes This
Reply With Quote
Old 07-25-2012, 04:17 PM   #20
Landshark67
Recipes

Apr 2008
Posts: 121
Liked 3 Times on 3 Posts


Quote:
Originally Posted by makomachine View Post
How do you keep the break material out of the fermentor when you use a plate chiller?
Lots of options but here's what I do to avoid clogging:

1) Whirlpool for 5min and then let wort settle for another 10 (adjust IBU calc)
2) Use side kettle pickup tube to limit hops, etc
3) Hot wort flows to a hopback that really catches break material
4) Lastly, if I'm in the mood...I use the BH hop blocker - gravity feed

...then the plate chiller.

One other trick I've learned is to let gravity do the work as long as possible..before turning on the pump. Unless you get the pump flow just right, it's easy to force too much wort (and some inevitable break/hop material) into the chiller.

I just received the B3-23A 60 Plate chiller and am completely satisfied. With 58F ground water I can get the wort cooled and transfered fast. Ususally 16-18 gallon batches so the B3-60 cooling capacity is nice.


Reply With Quote
