Default question on propane hose to burner on brewstand

I'm looking for some suggestions to hook up my propane manifold to my burners on my brew rig. How have people gone from the flex line to the orfice at the burner - use a reducer? ??? What size valves and flex line s are common. I've found some good "needle" valves that could control gas flow nicely but they are only 1/4". Most flex lines i've seen are 1/2".


kegtoe is offline

Reply With Quote
Old 06-08-2012, 12:20 PM   #2
carlisle_bob
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2012
Location: Carlisle, PA
Posts: 1,204
Liked 29 Times on 28 Posts

Default

Hi

There are needle valves designed for the specific purpose. They are a little pricey and you don't find them at the local big box store. The other alternative is to use the big box valves and a reducer.

Are you running high pressure or low? If it's high pressure, the diameters really don't matter. You will get plenty of gas. If you have a low pressure system (like for running furnace valves with) you may want to watch the diameters.

Bob


carlisle_bob is offline

Reply With Quote
Old 06-09-2012, 03:57 AM   #3
kegtoe
Feedback Score: 1 reviews

kegtoe's Avatar
Recipes

Join Date: Sep 2009
Location: Stevens Point, Wisconsin
Posts: 1,180
Liked 17 Times on 16 Posts
Likes Given: 25

Default

high pressure , 20-30 PSI. have you seen the needle valves in any other size than 1/4" i'd love some flexible propane line in 1/4" if i could find it.
kegtoe is offline

Reply With Quote
Old 06-09-2012, 05:51 AM   #4
Ortega917
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2012
Location: Inland Empire, ca
Posts: 22
Likes Given: 2

Default

I used soft copper with compression fittings from my burner to my black iron pipe. It works great for me
Ortega917 is offline

Reply With Quote
Old 06-09-2012, 05:56 AM   #5
OneHoppyGuy
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,648
Liked 44 Times on 36 Posts
Likes Given: 52

Default

This is how it's done





OneHoppyGuy is offline

Reply With Quote
Old 06-09-2012, 06:45 AM   #6
Rivenin
Feedback Score: 1 reviews
Recipes

Join Date: Dec 2010
Location: Sherwood, Oregon
Posts: 3,103
Liked 292 Times on 231 Posts
Likes Given: 334

Default

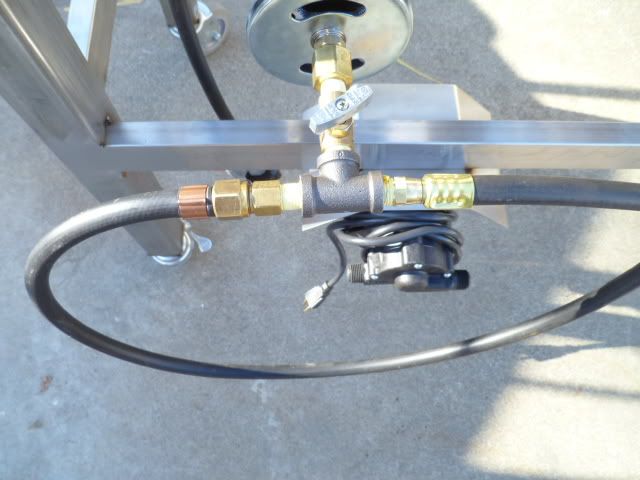

i'm sure it's not recomended, but this is how i did mine.



zip ties are there just to get me an idea on how i want to mount it, so ignore those the ball valves are touchy as hell. but i'm gonna redo those.. one day... lol
__________________
RAINYDAY BREWING AND WINERY Sherwood, OR - EST 2010
Coming up Whiskey Oak Aged Imperial Rye Stout
Primary Sour saison - Lambic inspired coolshipped + dreg beer - Nut Brown
Kegged Nelson, Kohatu, Citra IPA
240v - 4500w electric two tier
Rivenin is offline

Reply With Quote
Old 06-09-2012, 12:37 PM   #7
dbrewski
Feedback Score: 0 reviews

dbrewski's Avatar
Recipes

Join Date: Oct 2011
Location: Indeterminate
Posts: 1,013
Liked 52 Times on 46 Posts
Likes Given: 39

Default

Yes a reducer. Go to tejassmokers.com and look at the parts page. They have anything you need including the needle valves, reducers, and orifices, straight and 90 degree. I used 1/2 pipe to a reducer to a 1/4 needle valve which had a 3/8 male flare on it. I then used soft copper line to go to the burner. Since the orifice also ended on a 3/8 male flare the copper just had a female flare on both ends. I had not done any flare work before but it was easy and the kit to do it was cheap from HD.
dbrewski is offline
junkyard brewer Likes This
Reply With Quote
Old 06-09-2012, 01:14 PM   #8
kegtoe
Feedback Score: 1 reviews

kegtoe's Avatar
Recipes

Join Date: Sep 2009
Location: Stevens Point, Wisconsin
Posts: 1,180
Liked 17 Times on 16 Posts
Likes Given: 25

Default

OneHoppyGuy, that is a great set up. Is your black pipe 1/2"? Reduced down to 1/4 needle?

I would love to hardpipe mine like that and that was my plan but my stand was not built to the specifications that i asked. My burners do not line up with my manifold. Wish i wouldn't have bought my stand from who i did - now i found out several other people have had issues with this same person.

Wish i would have waited and bought from you. Looks like you do good work. You are always on this forum helping people and providing advice. I was on your site yesterday, i like the new format/layout. If you have a trade in program let me know
kegtoe is offline

Reply With Quote
Old 06-09-2012, 02:48 PM   #9
OneHoppyGuy
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,648
Liked 44 Times on 36 Posts
Likes Given: 52

Default

Trade-ins LOL I like that!
The manifold in the photo is all 1/4"
We only use 1/2" where needed now, like on gas valves and jet burners. Using flexible line is much easier due to the simplicity of hose and because most of our stands are custom sizes. Our manifolds are expensive to build due to all the brass fittings, but the end result is very nice. We aren't stuck on one design, so it will evolve into who knows what...

Thank you for the kind words.
OneHoppyGuy is offline

Reply With Quote
Old 06-10-2012, 12:01 PM   #10
carlisle_bob
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2012
Location: Carlisle, PA
Posts: 1,204
Liked 29 Times on 28 Posts

Default

Quote:
Originally Posted by OneHoppyGuy View Post
This is how it's done


Hi

Why loop around to the left with the hose? Wouldn't a 90 degree elbow be a bit less hassle (nicer looking and less likely to get run into)?

Of course that may be the supply hose in which case - never mind.

Bob
