Default Coffin Keezer w/ Linear Actuator

I would like to thank everyone for all the quality threads and posts on Coffin Keezer’s. I have read a ton of them to make sure that I had a decent idea what I was doing! Hopefully this is one more thread that inspires someone.

This project took me 4 weeks start to finish once I started buying “stuff”. That does not include any time I’ve spent reading other threads / learning. I would have had it done quicker except some personal issues came up that didn’t allow me to work on it much for a week or so.

Budget:
My initial budget was 1,500. This was a project to replace a Perlick kegorator from the 70’s that my wife’s grandpa passed down to me. As far as budget goes… I went over on some categories but didn’t do too bad. I would estimate I have about 1750 in it including all parts and misc. purchases (some which I didn’t really need of course!)

Tools:
I used a chop saw, circular saw, drill, tile saw, and nail gun as primary tools. Had to buy a 4” hole saw (4.5” was 20 dollars more!).

Details:
24” Linear Actuator from Firgelliauto, 10A power supply
Solid Oak trim
¼” oak panels on base
4” x ¼” trim around base (casing)
6” x ½” trim around bottom base
Top trim is 4” x 1”
5/8 Plywood
5/16” cement backing board
3/8” T-nuts to attach top
12” SS drain
Perlick taps w/ all SS shanks / tailpieces
10.2 cf professional series freezer (I think) from Menards
24” RGB LED strip light w/ remote
6 x 3” wheels w/ 110 lb load rating each


Will post the pictures with brief explanations.

If you have any questions, I’ll do my best to answer them.

Thanks!
Zach


zlwags85 is offline

Reply With Quote
Old 05-12-2012, 09:44 PM   #2
zlwags85
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Peoria, Illinois
Posts: 14
Default

Designed in Google Sketchup to visualize and use for measurments

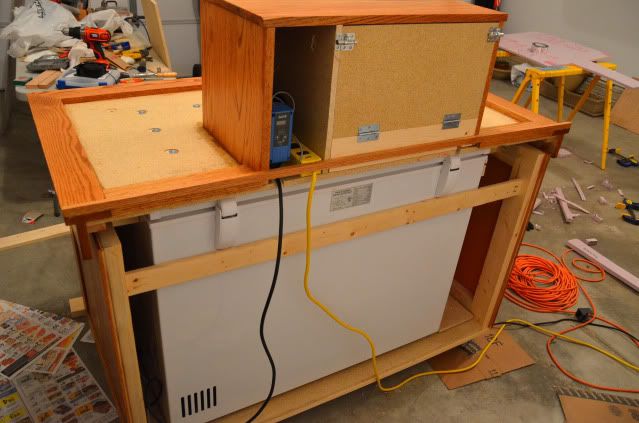

After a week or so of hard work had it pretty well assembled for a start



Recessed area for the light strip. about 1/2" added to back with cement backing board and tile



Picture of the back... extra room on right is for the CO2 tank which is on drawyer slides



zlwags85 is offline

Reply With Quote
Old 05-12-2012, 09:46 PM   #3
zlwags85
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Peoria, Illinois
Posts: 14
Default

Back of coffin with all insulation in



I layered the insulation so i could have cut out for the fan and then the gas lines seperately insulated.



Next layer on



The final layer was just a square and then a vertical pice that went over shanks with .5" clearance so air could flow in and out around shanks.
zlwags85 is offline

Reply With Quote
Old 05-12-2012, 09:48 PM   #4
zlwags85
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Peoria, Illinois
Posts: 14
Default

Picture without the freezer one. Can see the piece of wood on the slides for the tank to slide in and out.



Actuator installed and a bit of the gas lines / etc



All of the line now done and cleaned up a bit



Picture of it closed

zlwags85 is offline

Reply With Quote
Old 05-12-2012, 09:49 PM   #5
zlwags85
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Peoria, Illinois
Posts: 14
Default

I used an actuator on my SW fishtank years ago and planned on using an extra one I bought. I think I would have added a bit more support if I thought it would be as heavy as it was using steel bar. Here is a pic of the fish tank when I put it in 2008

zlwags85 is offline

Reply With Quote
Old 05-12-2012, 09:51 PM   #6
zlwags85
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Peoria, Illinois
Posts: 14
Default

Bunch of pictures playing with the lights / etc:

















All I need now is tap handles. Haven't decided what I want to do on that yet....
zlwags85 is offline

Reply With Quote
Old 05-12-2012, 09:51 PM   #7
TacoBrew
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Nashville, TN
Posts: 248
Liked 10 Times on 8 Posts
Likes Given: 4

Default

Very well done!
TacoBrew is offline

Reply With Quote
Old 05-12-2012, 10:02 PM   #8
oakbarn
Feedback Score: 0 reviews

oakbarn's Avatar
Recipes

Join Date: Jun 2011
Location: Argyle, Texas
Posts: 761
Liked 51 Times on 40 Posts
Likes Given: 26

Default

What time is the party?
oakbarn is offline

Reply With Quote
Old 05-12-2012, 10:22 PM   #9
JuanMoore
Feedback Score: 0 reviews

JuanMoore's Avatar
Recipes

Join Date: Oct 2009
Location: The Old Pueblo
Posts: 18,664
Liked 3389 Times on 3269 Posts
Likes Given: 20

Default

Looks great! Is it hard to get kegs in and out with the lid only opening part way like that?
__________________
Keezer Soze

Yuri rubs it out with 60 grit... wouldn't even feel a tenga egg. -Randar

, place entry ox dixla to suck. Fcxk fwnpoo and passed. Hel an my spupid ass. OK. - TXCrash
JuanMoore is offline

Reply With Quote
Old 05-14-2012, 12:25 AM   #10
zlwags85
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Peoria, Illinois
Posts: 14
Default

Thanks. Getting 1/6 barrels isn't bad at all. The full keg goes in fairly easy empty... but would be a pita full and heavy. Should take a picture from the side. It's open quite a bit... that might not have been fully open with the actuator. It's wired to a rocker switch so I can just open it as much as needed for whatever I'm doing.


zlwags85 is offline
