Old 04-02-2012, 05:57 PM   #1
LiquidFlame
Feedback Score: 8 reviews

LiquidFlame's Avatar
Recipes

Join Date: Apr 2011
Location: Normal, IL
Posts: 554
Liked 32 Times on 24 Posts
Likes Given: 6

Default Dual Fermentation Chamber Build

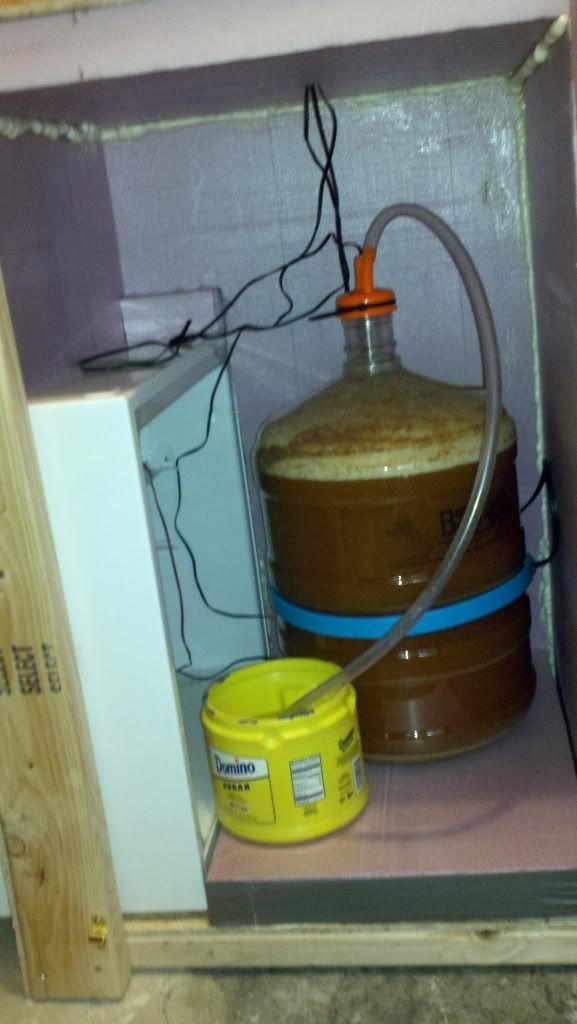

I made this fermentation chamber with a wall in the middle so I can ferment two different beers at two different temperatures at the same time. I made two temperature controllers one for each side using the STC-1000 temperature controller that's been so popular around this forum.






















LiquidFlame is offline

Reply With Quote
Old 04-02-2012, 07:34 PM   #2
lonepalm
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 211
Liked 3 Times on 3 Posts
Likes Given: 10

Default

This is exactly what i am going to do. What is your capacity of kegs & buckets? What size of footprint with everything does it take up?

Thanks
john


lonepalm is offline

Reply With Quote
Old 04-02-2012, 08:03 PM   #3
h22lude
Feedback Score: 0 reviews

h22lude's Avatar
Recipes

Join Date: Dec 2010
Location: lincoln, ri
Posts: 1,983
Liked 75 Times on 65 Posts
Likes Given: 24

Default

Pretty good idea.
__________________
Primary: Nothing

Kegged: Dunkelweizen, Fizzy yellow beer and Pumpkin Ale

Bottled: Nothing

On my list to brew: Stone IPA and some kind of wit
h22lude is offline

Reply With Quote
Old 04-02-2012, 08:06 PM   #4
509inc
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2010
Location: OKC
Posts: 1,248
Liked 55 Times on 49 Posts
Likes Given: 224

Default

I dig it. Does it only hold 2 carboys?
__________________
My HomeBrew and Craft Beer Blog:
http://the509inc.blogspot.com/
509inc is offline

Reply With Quote
Old 04-03-2012, 12:46 AM   #5
LiquidFlame
Feedback Score: 8 reviews

LiquidFlame's Avatar
Recipes

Join Date: Apr 2011
Location: Normal, IL
Posts: 554
Liked 32 Times on 24 Posts
Likes Given: 6

Default

Quote:
Originally Posted by lonepalm View Post
This is exactly what i am going to do. What is your capacity of kegs & buckets? What size of footprint with everything does it take up?

Thanks
john
Length: 6' 3", that's from wall to wall with the fridges and a small gap between the wall and fridges for room for heat displacement.

Depth: 2' 1"
Height: 2' 11.5"

Each side can hold 1 6.5 Better Bottle carboy with room for a blow off tube.

LiquidFlame is offline

Reply With Quote
Old 04-05-2012, 02:39 PM   #6
BrewerDon
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Dallas, Texas
Posts: 90
Liked 8 Times on 6 Posts
Likes Given: 5

Default

I like it! That's what I call thinking outside the ice box.

Have you done any testing to see if there is any issue with the smaller frig cooling the larger space down to lagering temps? I'd like to make something like this but it would have to be able to work in a detached shed in the Texas summer heat. Do you think these small refrigerators could do that?
BrewerDon is offline

Reply With Quote
Old 04-05-2012, 05:34 PM   #7
h22lude
Feedback Score: 0 reviews

h22lude's Avatar
Recipes

Join Date: Dec 2010
Location: lincoln, ri
Posts: 1,983
Liked 75 Times on 65 Posts
Likes Given: 24

Default

Do you like the heat belt? It seems like it would make the middle warmer than that top and bottom
__________________
Primary: Nothing

Kegged: Dunkelweizen, Fizzy yellow beer and Pumpkin Ale

Bottled: Nothing

On my list to brew: Stone IPA and some kind of wit
h22lude is offline

Reply With Quote
Old 04-05-2012, 07:27 PM   #8
FirstStateBrewer
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Middletown, DE
Posts: 328
Liked 17 Times on 16 Posts
Likes Given: 3

Default

I like this Fermentation Chamber. I have been thinking of doing something similar!
FirstStateBrewer is offline

Reply With Quote
Old 04-10-2012, 12:41 PM   #9
LiquidFlame
Feedback Score: 8 reviews

LiquidFlame's Avatar
Recipes

Join Date: Apr 2011
Location: Normal, IL
Posts: 554
Liked 32 Times on 24 Posts
Likes Given: 6

Default

Sorry for taking awhile to reply back.

Quote:
Originally Posted by BrewerDon View Post
I like it! That's what I call thinking outside the ice box.

Have you done any testing to see if there is any issue with the smaller frig cooling the larger space down to lagering temps? I'd like to make something like this but it would have to be able to work in a detached shed in the Texas summer heat. Do you think these small refrigerators could do that?
This is my first time using the fermentation chamber, so I don't have any experenice with lagering temps right now. I do have a Lemon Coriander Weiss on one side holding nicely at 70F and a Cream Ale on the other side holding at 62F. I might cold crash the Cream Ale when the fermentation is done, so I'll let you know about the tempatures when that happens.

Quote:
Do you like the heat belt? It seems like it would make the middle warmer than that top and bottom
I so far have not had any problems with the brew belt and I like it a lot. Here's something else you could also do if you don't like the brew belt idea. http://www.wortomatic.com/articles/F...ion-Can-Heater
LiquidFlame is offline
509inc Likes This
Reply With Quote
Old 04-12-2012, 06:16 PM   #10
lonepalm
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 211
Liked 3 Times on 3 Posts
Likes Given: 10

Default

Quote:
Originally Posted by LiquidFlame View Post
Length: 6' 3", that's from wall to wall with the fridges and a small gap between the wall and fridges for room for heat displacement.

Depth: 2' 1"
Height: 2' 11.5"

Each side can hold 1 6.5 Better Bottle carboy with room for a blow off tube.

Thanks!



Reason: found answer
lonepalm is offline

Reply With Quote
