Default CO2 Regulator Question

Hi I currently have my 5# tank hooked up to a dual gauge regulator that feeds into a 4 gauge regulator that feed my kegs. My question is would it be OK to skip the first regulator and go directly to the 4 gauge? The gauge that measures the tank capacity appears to be broken so I would get a new one of those and throw it on the end of the 4 gauge regulator.

This is my current setup
--->
---> --->


__________________
Kegged:
OatStraw Dog Tooth Stout; OatStraw Belgian Snow; OatStraw Kitchen Sink; OatStraw Spice Noel; OatStraw Ye Olde Cider
OatStraw is offline

Reply With Quote
Old 03-21-2012, 07:09 PM   #2
david_42
Feedback Score: 0 reviews

david_42's Avatar
Recipes

Join Date: Oct 2005
Location: Willamina & Oak Grove, Oregon, USA
Posts: 25,674
Liked 141 Times on 134 Posts

Default

Probably wouldn't work. I think you have a primary/secondary setup Look at the backs of the 4-regulator cluster, they will probably say something like "Inlet pressure 0-160 psi". Your tank runs around 500-1000 psi and the first regulator has to be able to handle it.

Replace the tank pressure gauge on the first regulator. Be aware that they almost always have left-handed threads.


__________________
Remember one unassailable statistic, as explained by the late, great George Carlin: "Just think of how stupid the average person is, and then realize half of them are even stupider!"

"I would like to die on Mars, just not on impact." Elon Musk
david_42 is offline

Reply With Quote
Old 03-21-2012, 07:15 PM   #3
OatStraw
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2011
Location: Bartlesville, OK
Posts: 334
Liked 17 Times on 5 Posts
Likes Given: 8

Default

OK. I'll take a look at that tonight. So If I replace the first gauge with a 500-1,000 psi gauge on the 4 regulator it will work? I would think the regulator it self would still have an issue if that is the case.
__________________
Kegged:
OatStraw Dog Tooth Stout; OatStraw Belgian Snow; OatStraw Kitchen Sink; OatStraw Spice Noel; OatStraw Ye Olde Cider
OatStraw is offline

Reply With Quote
Old 03-21-2012, 07:40 PM   #4
paparker21
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Nasvhille, TN
Posts: 196
Liked 3 Times on 3 Posts
Likes Given: 5

Default

You are correct- if the four regulators are secondaries, they will not be rated for the Inlet pressure from the co2 tank. You will need your dual gadgets primary. Even if the hp gauge is broken it shouldn't cause any issues. You just won't know when your co2 is running low
paparker21 is offline

Reply With Quote
Old 03-21-2012, 07:46 PM   #5
OatStraw
Feedback Score: 0 reviews
Recipes

Join Date: Aug 2011
Location: Bartlesville, OK
Posts: 334
Liked 17 Times on 5 Posts
Likes Given: 8

Default

OK thanks. I don't know how the HP gauge was broken, but the plastic/paper background is bent and the needle is held up on it.
__________________
Kegged:
OatStraw Dog Tooth Stout; OatStraw Belgian Snow; OatStraw Kitchen Sink; OatStraw Spice Noel; OatStraw Ye Olde Cider
OatStraw is offline

Reply With Quote
Old 03-22-2012, 12:39 AM   #6
david_42
Feedback Score: 0 reviews

david_42's Avatar
Recipes

Join Date: Oct 2005
Location: Willamina & Oak Grove, Oregon, USA
Posts: 25,674
Liked 141 Times on 134 Posts

Default

Happens all the time. Both of my high pressure gauges are busted. On one the backing is bent, inside the housing, and the other the needle fell off. I'm just living with it.
__________________
Remember one unassailable statistic, as explained by the late, great George Carlin: "Just think of how stupid the average person is, and then realize half of them are even stupider!"

"I would like to die on Mars, just not on impact." Elon Musk
david_42 is offline

Reply With Quote
Old 03-31-2012, 12:59 PM   #7
BreezyBrew
Gravity is just a number
Feedback Score: 0 reviews

BreezyBrew's Avatar
Recipes

Join Date: Feb 2012
Location: New Tampa, FL
Posts: 2,848
Liked 402 Times on 308 Posts
Likes Given: 146

Default

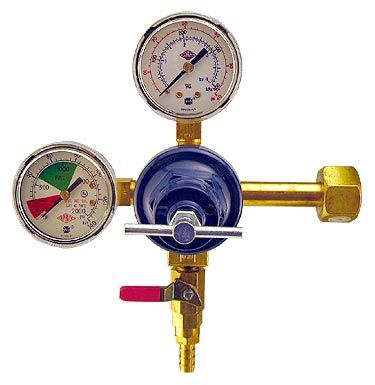

Would be nice if they made these things work properly. I am new to kegging and inherited a regulator and tank. I was doing a test run, and realized that my needle is on the opposite side of the bar. Is there any cure for this? turning the whole thing upside when it was off did not work...
Click image for larger version

Name:	IMAG0277.jpg
Views:	217
Size:	23.5 KB
ID:	54952
BreezyBrew is offline

Reply With Quote
Old 03-31-2012, 03:59 PM   #8
JRems
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2010
Location: Mahopac, NY
Posts: 2,230
Liked 60 Times on 52 Posts
Likes Given: 9

Default

Take the plastic cover off the gauge and gently lift the needle back over the needle stop.
JRems is offline

Reply With Quote
Old 03-31-2012, 04:03 PM   #9
Psych
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: Kelowna, BC
Posts: 785
Liked 37 Times on 34 Posts
Likes Given: 35

Default

Quote:
Originally Posted by BreezyBrew View Post
Would be nice if they made these things work properly. I am new to kegging and inherited a regulator and tank. I was doing a test run, and realized that my needle is on the opposite side of the bar. Is there any cure for this? turning the whole thing upside when it was off did not work...
LOL epic regulator fail! Some good QA work at that factory!

At least it's not your secondary gauge...
