Old 05-08-2012, 03:34 PM   #41
cscade

cscade's Avatar
Recipes

Feb 2009
Wooster, Ohio
Posts: 450
Liked 18 Times on 14 Posts


Thanks for the comments guys!

I'm back from traveling, and back to work on the brewery! Last night I completed the panel, and mounted it in the brewery. Everything is tested and working properly, PIDs and Timer are programmed, and it's time to start working on the kettles!

Completed interior wiring, both SSDs firing.





__________________

Seeker Brewing Co.
est. 2008
Build Thread - Blog


Reply With Quote
Old 05-08-2012, 03:55 PM   #42
MR2Aaron
Recipes

Aug 2009
Austin
Posts: 70

Man, that is wicked cool.

I wish we could have basements here in Texas, so I wouldn't have to sacrifice my garage for a workspace like this.


Reply With Quote
Old 05-08-2012, 04:28 PM   #43
Xtant

Xtant's Avatar
Recipes

Nov 2008
Lexington, KY
Posts: 360
Liked 30 Times on 22 Posts


Quote:
Originally Posted by MR2Aaron
Man, that is wicked cool.

I wish we could have basements here in Texas, so I wouldn't have to sacrifice my garage for a workspace like this.
What's the deal? Dig 12' down and you hit oil?
__________________
"Make sure that the beer - four pints a week - goes to the troops under fire before any of the parties in the rear get a drop." -Winston Churchill to his Secretary of War, 1944


Reply With Quote
Old 05-08-2012, 04:32 PM   #44
Yankeehillbrewer
Recipes

Dec 2008
Yankee Hill, CA
Posts: 1,541
Liked 28 Times on 28 Posts


Awesome build Cscade! Very professional looking
__________________
Kegged: NADA
Bottled: Blackberry Mead
Primary #1:IPA
Primary #2:
Secondary:
On Deck: Pilsener, Brown, Barleywine, Coffee Porter


Reply With Quote
Old 05-09-2012, 01:31 PM   #45
MR2Aaron
Recipes

Aug 2009
Austin
Posts: 70

Quote:
Originally Posted by Xtant View Post
What's the deal? Dig 12' down and you hit oil?
Yeah, but then the oil leaks into your basement.

Seriously, though, you hit the bedrock in my back yard if you dig more than about 3 feet.


Reply With Quote
Old 05-09-2012, 06:14 PM   #46
rekoob

rekoob's Avatar
Recipes

Feb 2011
Norfolk, VA
Posts: 1,426
Liked 107 Times on 82 Posts


You Sir, are doing a great build! awesome job!


Reply With Quote
Old 05-25-2012, 01:51 PM   #47
cscade

cscade's Avatar
Recipes

Feb 2009
Wooster, Ohio
Posts: 450
Liked 18 Times on 14 Posts


Today I completed the part of the build I have be dreading most; the 6" hole in the block wall. All things considered, it wasn't horrible, but I'm certainly glad to be done! 3.5 hours, start to finish. Came out great!

My hood design is a little different than most. In my layout, the fan will mount directly to the hood, and exhaust directly through the wall. No turns, and a total length of 8" of 6" duct. Should be pretty effective. I'm building a prototype hood out of 2" foam board next week, and will post photos when I get it installed.

The tools required for making the hole in the block - not shown is the hammer drill the bit goes in.


Unfortunately, my block is textured on the outside, so step 1 was creating a flat area with my brick hammer.


As far as I went from the outside.


Pilot holes on the inside.


Daylight!


Installed view - outside.

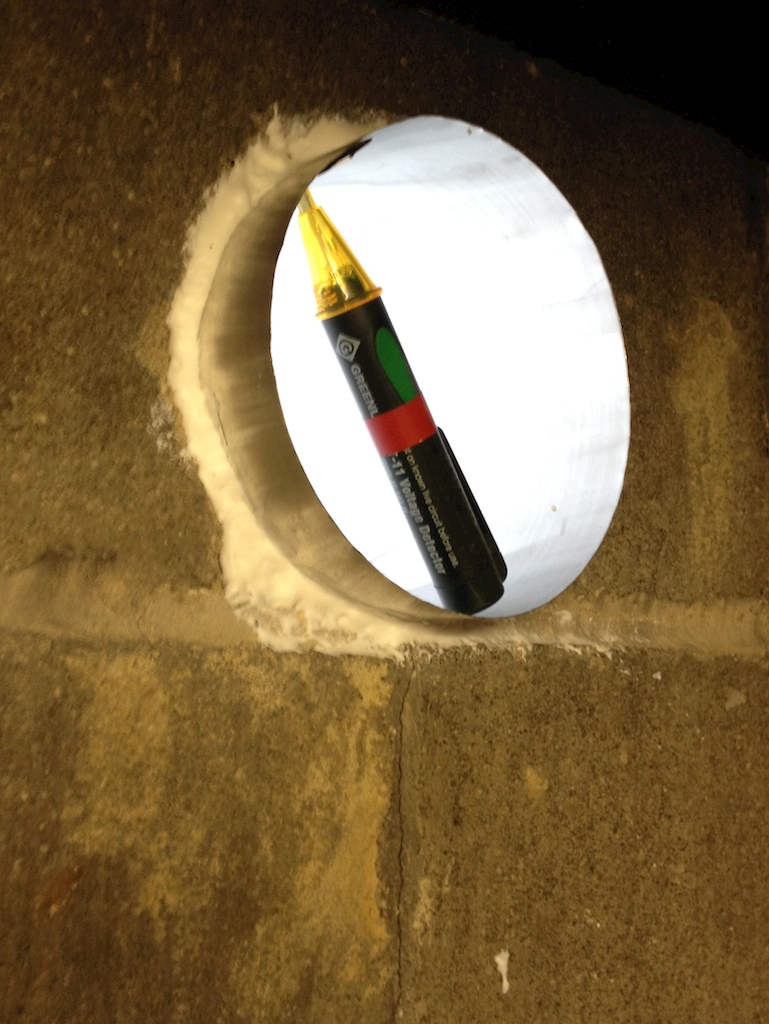

Installed view - inside. (the electrical probe is just propped in there to keep the duct round as the foam cures)
__________________

Seeker Brewing Co.
est. 2008
Build Thread - Blog


Reply With Quote
Old 05-25-2012, 04:10 PM   #48
phoenixs4r
Recipes

Jun 2011
Hayward, California
Posts: 1,515
Liked 56 Times on 51 Posts


That last picture is really trippy for some reason.


Reply With Quote
Old 05-25-2012, 04:27 PM   #49
jtkratzer
Senior Member

jtkratzer's Avatar
Recipes

Oct 2010
Lititz, Pennsylvania
Posts: 2,811
Liked 39 Times on 39 Posts


Quote:
Originally Posted by phoenixs4r View Post
That last picture is really trippy for some reason.
Took my eyes/brain a sec to get it right as well.


Reply With Quote
Old 05-25-2012, 05:43 PM   #50
Espi
Recipes

Dec 2009
Tempe, AZ
Posts: 166
Liked 1 Times on 1 Posts


Great build, and digging the San Tan glass. Keep the pics flowing.
__________________
When in darkness... when in doubt... run in circles... scream and shout!


Reply With Quote
