Old 02-29-2012, 10:47 PM   #1
TravisT
Recipes

Apr 2011
denver, CO
Posts: 195
Liked 18 Times on 17 Posts



I really like the idea of all gravity systems, but i dont like how tall they are. I also dont want to use a pump. I found my inspiration from Bernie Brewer rig
http://www.homebrewtalk.com/f51/show...8/index10.html
also got some ideas from http://www.homebrewtalk.com/f51/brew...e-equip-62617/
I'm going to use a winch to lift my BK high enough to gravity drain the wort into a car boy.

I'm getting closer to being done. Its been a 3 week project.


the BK will sit on this.


I tried the get the BK as low to the ground as possible. It held 15gl of water weight with no issues.


my hobart 140 mig welder is a little beast


This is the stand that the HLT is going to sit on. I'm going to attach a pully under it and it is going to pull up my BK.

I should be finished with it by the end of the week. I'm going to hard plum Gas lines the the burners. Will give updates as i make progress.


Reply With Quote
Old 02-29-2012, 11:26 PM   #2
Bobby_M
Vendor and Brewer

Bobby_M's Avatar
Recipes

Aug 2006
Whitehouse Station, NJ
Posts: 23,333
Liked 1765 Times on 1122 Posts


Super silly question. How will you winch the BK station up if you hard plumb the burners. Perhaps the burner doesn't move with it?
__________________
Welcome to BrewHardware.com. I love you.
New Stirplates are IN!
Chugger Pumps, Pump Kits, Camlocks, Sightglasses, Clear USA made Silicone Tubing, RIMS, Electric Install Parts, etc.


Reply With Quote
Old 02-29-2012, 11:36 PM   #3
TravisT
Recipes

Apr 2011
denver, CO
Posts: 195
Liked 18 Times on 17 Posts


Quote:
Originally Posted by Bobby_M View Post
Super silly question. How will you winch the BK station up if you hard plumb the burners. Perhaps the burner doesn't move with it?
the hard pluming will run vertical from the bk to the HLT. Coming off of the hard pluming is a 2ft rubber propane line that attaches to the burner that will move with it.

Edit: after thinking about your question a bit more..... I think I misused the word "hard pluming". i was Talking about propane lines, not liquid lines....


Reply With Quote
Old 03-02-2012, 10:12 PM   #4
TravisT
Recipes

Apr 2011
denver, CO
Posts: 195
Liked 18 Times on 17 Posts


So just a update. I have welded my HLT stand. The problem that I am running into is There is no real good place to mount my winch without the cable getting in the way of the BK...I think that i am going to half to mount it on my HLT and add additional support. Another problem that is being made clear to me is that i only really save about 12in of height going with this design. I am going to add caster(3inches)... with the casters that will put the bottom of my BK at about 10inches off the ground.
I did design it that if i wanted to make my Mashtun as a keggle there is room to do it. I'll post picks when i get the winch mounted and the propane lines in order.



Reply With Quote
Old 03-03-2012, 02:47 AM   #5
pinback
Recipes

Oct 2011
Greeneville, TN
Posts: 243
Liked 2 Times on 2 Posts


I really think you could raise your BK up about 6-8 inches maybe. Will you ever full the BK completely from you cooler? For that fact, you could raise the cooler too and prolly gain enough height to feed from your BK to your Ferm. Just a thought...
__________________
newby


Reply With Quote
Old 03-03-2012, 03:05 AM   #6
Naptown
Recipes

Jan 2012
Posts: 152
Liked 1 Times on 1 Posts


I wish I had even this much room in my garage for a setup like this. Looks good!


Reply With Quote
Old 03-03-2012, 04:27 AM   #7
TravisT
Recipes

Apr 2011
denver, CO
Posts: 195
Liked 18 Times on 17 Posts


Quote:
Originally Posted by pinback View Post
I really think you could raise your BK up about 6-8 inches maybe. Will you ever full the BK completely from you cooler? For that fact, you could raise the cooler too and prolly gain enough height to feed from your BK to your Ferm. Just a thought...
there is a ton of room to make improvement to the design/setup...yes i would probably not max out the hight of my HLT into mt MT....
Quote:
Originally Posted by Naptown View Post
I wish I had even this much room in my garage for a setup like this. Looks good!
I wished the same thing.... i was renting a 2 bdr apartment and went into this mess!! i have never parked my truck in this garage!!!


Reply With Quote
Old 03-03-2012, 04:44 AM   #8
pinback
Recipes

Oct 2011
Greeneville, TN
Posts: 243
Liked 2 Times on 2 Posts


Well at least you'll get a fast siphon! It looks great bro.
__________________
newby


Reply With Quote
Old 03-03-2012, 04:49 AM   #9
yjfun
Recipes

Jun 2010
Arlington, Washington
Posts: 225
Liked 2 Times on 2 Posts


If you build Z brackets on the ends of your support legs for your casters.

Then you can adjust the height increase to be whatever you want. It would allow you to use as big a caster wheel as you want and only increase the overall height of your brewstand by 1/4 to 1/2 inch or whatever you felt you needed for ground clearance.

On another note a friend of mine has an adjustable height system where the HLT and BK are tied together and both slide up and down to allow for easier water additions to the HLT and to get the winch cable above the entire assembly instead of in the way of the BK.


Reply With Quote
Old 03-07-2012, 08:33 PM   #10
TravisT
Recipes

Apr 2011
denver, CO
Posts: 195
Liked 18 Times on 17 Posts


Well I am Like 95% done with the structural building. I just a few thinks left to test (gas leaks, add hooks, ext.) . I think its over engineered for what it does. There is just over 22inch of "lift" so i will have no problem with filling 6.5 gallon carboys. I think the HLT is just low enough i can reach up and dump water into it with out the use of a stool. I'm going to do a few brews with it, then give it a paint this summer. I'm holding off on the paint for right now because i might do some more welding/modifying, its also still kinda cold here.

Quote:
Originally Posted by yjfun View Post
If you build Z brackets on the ends of your support legs for your casters.
I am going to mod up some Z brackets for the casters, that was a really good idea.






This is at its full lifting height. 22inch from ground!


This is with the lifting bar pulled back. This is what i will do when i'm boiling so the bar is not in the way. I car move it forward after the wort is cool and its time to fill up the fermenters.

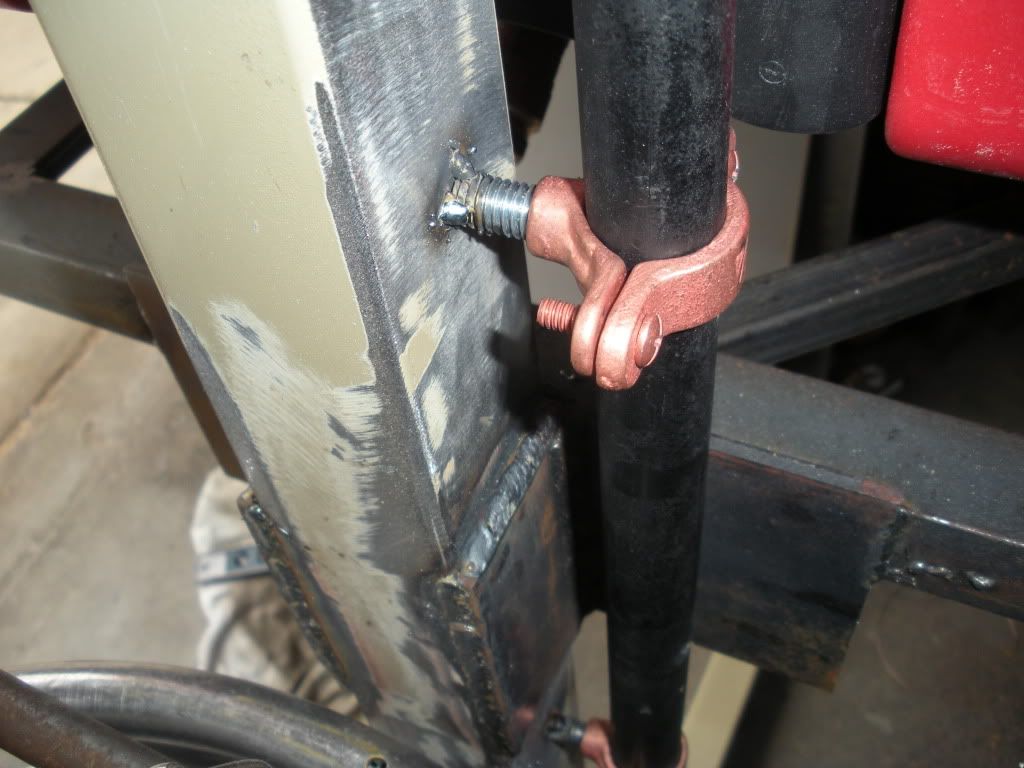

how i mounted the gas lines.


Reply With Quote
