Home Brew Forums > Home Brewing Beer > DIY Projects > Brew Stands > My DIY keggle setup. pics!
Reply

Thread Tools
Old 02-24-2012, 10:28 PM   #1
ThwWorm
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Long Beach, California
Posts: 53
Liked 1 Times on 1 Posts

Default My DIY keggle setup. pics!

So i've been absorbing advice from this forum over the last several months and i am almost done with my setup. I have a few final tweaks and then i'll start my first all grain batch. Any advice anyone can offer me at this stage is welcome. Also, hopefully someone else can use this thread to help get their all grain set up going!!

Got the kegs from a buddy who runs a small bar.



Got the idea for the cutting jig from the forum. Thanks passedpawn! http://www.homebrewtalk.com/f51/simp...ng-jig-143048/

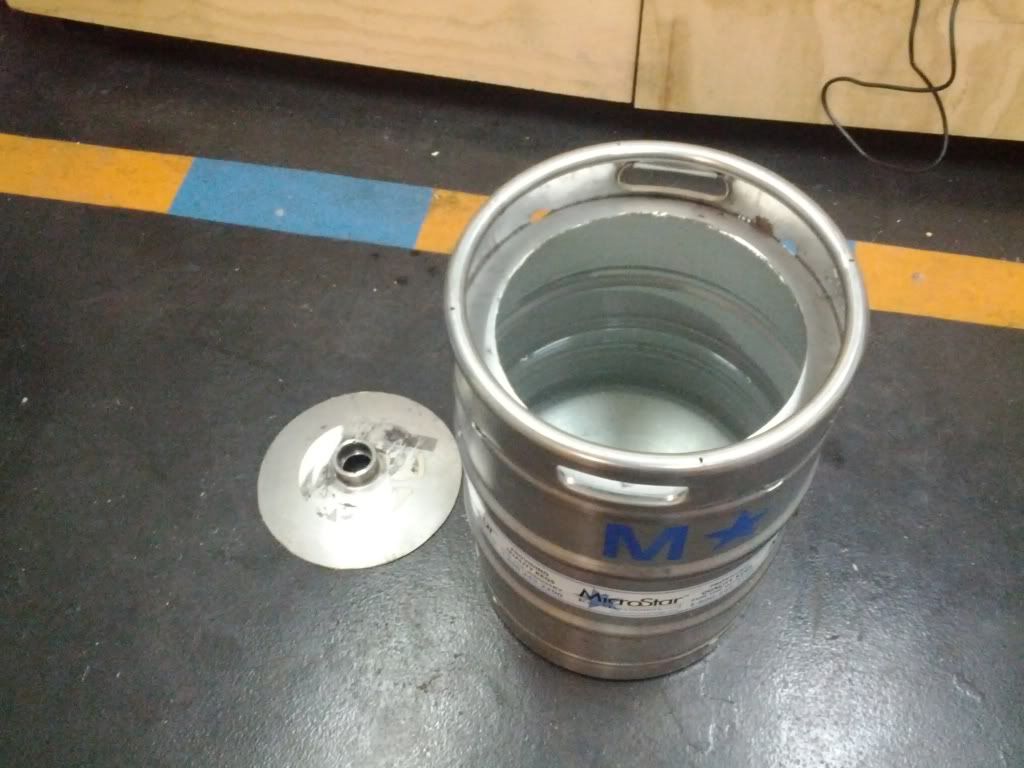

Here is the result of the cutting jig. A perfect 12" circle. Just need to sand off the burrs.



ThwWorm is offline

Reply With Quote
Old 02-24-2012, 10:40 PM   #2
humann_brewing
More Humann than human
Feedback Score: 0 reviews

humann_brewing's Avatar
Recipes

Join Date: Oct 2008
Location: the sun
Posts: 15,733
Liked 321 Times on 317 Posts
Likes Given: 22

Default

Nice work so far, what kind of setup are you going to build, single tier etc...


humann_brewing is offline

Reply With Quote
Old 02-24-2012, 11:02 PM   #3
ThwWorm
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Long Beach, California
Posts: 53
Liked 1 Times on 1 Posts

Default

With the tops cut and cleaned up, i drilled tje holes for my shiny new fittings from bargainfittings.com. 13/16 step drill does the trick.



Cleaned up the holes and installed the fittings!

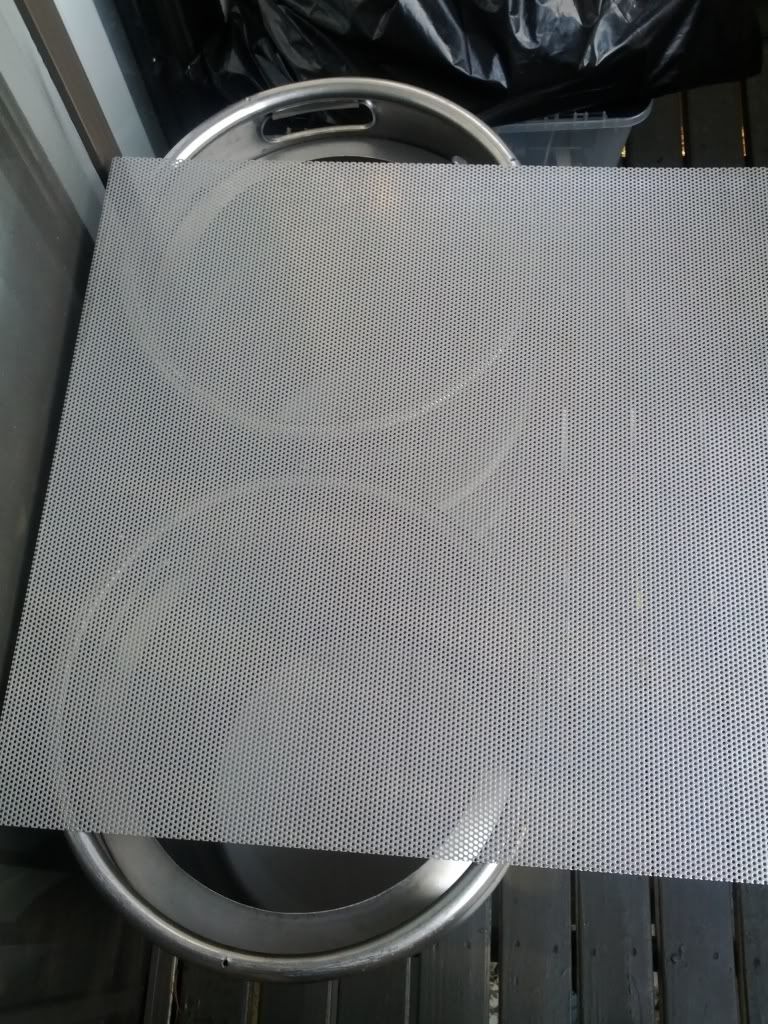

Next project was the false bottom for my mash tun. Managed so snag a piece of perforated stainless from one of our awesome members!!!

ThwWorm is offline

Reply With Quote
Old 02-24-2012, 11:10 PM   #4
ThwWorm
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Long Beach, California
Posts: 53
Liked 1 Times on 1 Posts

Default

I fashioned a cutting jig for the false bottom using a punch (purchased from Harbor Freight) hammered into a piece of wood under the stainless steel. I then drilled a hole into the handle of the grinder so that it sat at exactly 7 1/8" inches from the center. This way i was able to cut a perfect 15.25 inch circle for my false bottom!



The cut. I was actually able to cut 2 more half circles from this sheet using the same technique. I ended up using the 2 halves to make a hinged bottom.



ThwWorm is offline

Reply With Quote
Old 02-24-2012, 11:17 PM   #5
Magnanamous
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2011
Location: Pittsburgh, PA
Posts: 81
Liked 4 Times on 4 Posts
Likes Given: 3

Default

You're using Russian River Brewing kegs just too mess with us aren't you......Salt to the wound..
__________________
"An alcoholic is someone you don't like who drinks as much as you do."

-Dylan Thomas
Magnanamous is offline

Reply With Quote
Old 02-24-2012, 11:20 PM   #6
bad67z
Feedback Score: 0 reviews

bad67z's Avatar
Recipes

Join Date: Feb 2009
Location: Columbus, Ohio
Posts: 1,888
Liked 110 Times on 77 Posts
Likes Given: 26

Default

Quote:
Originally Posted by Magnanamous View Post
You're using Russian River Brewing kegs just too mess with us aren't you......Salt to the wound..
I started to type something about using a potential Pliny keg, but then I deleted it.
bad67z is offline

Reply With Quote
Old 02-24-2012, 11:26 PM   #7
ThwWorm
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Long Beach, California
Posts: 53
Liked 1 Times on 1 Posts

Default

The finished product. Stainless steel hinges and bolts all purchased from Westmarine.
Noticed just recently that the dip tube does not reach the center of the keg. In order for the tube to go down through the hole on the false bottom, it has to be just barely resting on the compression fitting. Maybe I ordered the wrong tube or maybe I set it up wrong. Any advice?



I decided to use a wort chiller for this setup. Decided to make my own.

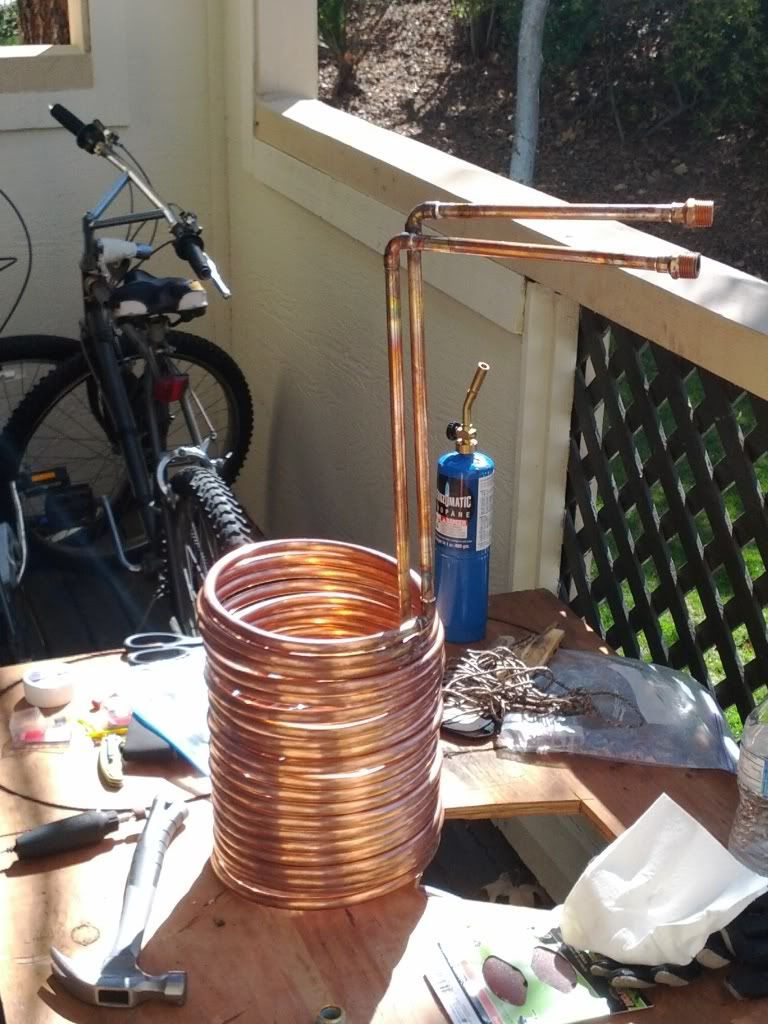

Wrapped 50 ft of copper tubbing around an old trash can.





The finished product after soldering everything together.


ThwWorm is offline

Reply With Quote
Old 02-24-2012, 11:31 PM   #8
ThwWorm
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Long Beach, California
Posts: 53
Liked 1 Times on 1 Posts

Default

And this is what i got so far! I also customized an old turkey fryer burner to accommodate the size of the keg. Ill throw pics of that up later.

ThwWorm is offline

Reply With Quote
Old 02-24-2012, 11:34 PM   #9
Monster Mash
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2006
Location: Castaic, CA
Posts: 1,323
Liked 88 Times on 69 Posts
Likes Given: 12

Default

Being a brewery owner this thread makes me sad.....
__________________
My 1BBL Brewery Pics
Monster Mash is offline

Reply With Quote
Old 02-24-2012, 11:34 PM   #10
ThwWorm
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2012
Location: Long Beach, California
Posts: 53
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by humann_brewing View Post
Nice work so far, what kind of setup are you going to build, single tier etc...
Thank you!! I would love to do a single tier setup! As of now i do not have a pump so i will probably just do a few batches using gravity. Upgrade later. I did also just snag a third keg. Any suggestions??


ThwWorm is offline

Reply With Quote
Reply


Thread Tools


Similar Threads
Thread Thread Starter Forum Replies Last Post
Three Keggle Brewery Build! PICS!!! GoCardinals09 Brew Stands 44 05-10-2012 09:26 PM
eBIAB Keggle conversion setup: some help please govain Kettles, Mash Tuns, & Hot Liquor Tanks 0 09-20-2011 06:38 AM
stirplate pics Gumbys_Brew Chillers and Stir Plates 43 11-22-2009 08:21 AM
Another Electric HLT (with pics) gregdech Kettles, Mash Tuns, & Hot Liquor Tanks 4 11-15-2009 01:50 PM
New Keezer Pics!! wedge421 Kegerators and Keezers 4 03-09-2009 11:50 AM


Forum Jump

Newest Threads

LATEST SPONSOR DEALS
