Default Braid filtered pick-up tube for sanke tun..

I had an idea for a pick-up tube for my sanke mash tun. I didn't want to use the typical set-up which uses a stainless braid with hose clamps. I wanted to make someting that used the braid as an interior type filter instead. Here are my photos;

Here are the pieces before soldering..
[IMG][/IMG]

This is after soldering..
[IMG][/IMG]

Inserting the braid-filter..
[IMG][/IMG]

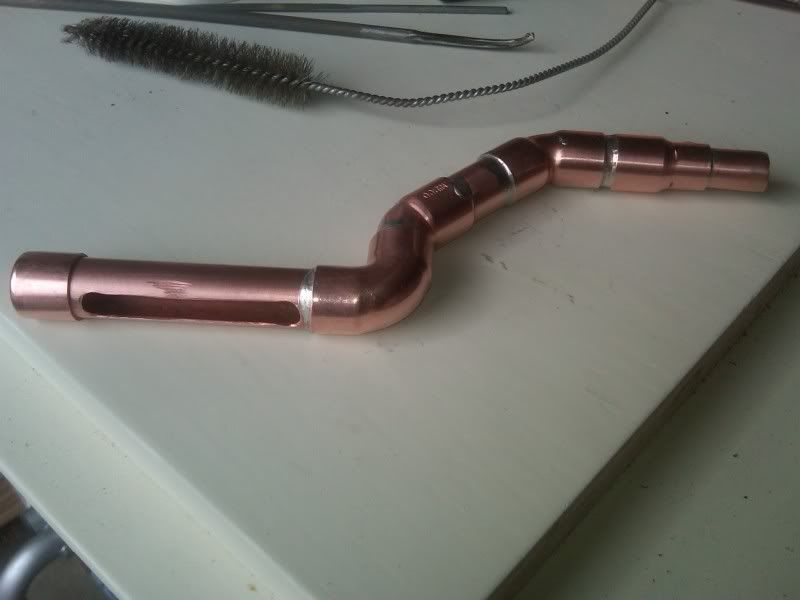

This is the finished product..
[IMG][/IMG]

Doing a test run with water, and it works great! I'm going to brew an amber next weekend with this set-up to see if it works as well with grain in the tun..
