Default Main Gas Pipe to gas valve fitting?

I have three Gas valves with Propane conversion kits on them. I also have the 1/2" hard gas pipe I will be running with my Brutus build. My question is, the Propane burners that I have all have 1/4" male threads on them that are of a FINE threading. The outlet of the propane gas valve is a 1/2" female. Where do I find what I am looking for? LOL, what am I looking for? Thanks ahead of time, if you need a picture of what I'm talking about let me know. its a burner off of a bayou classic not a banjo.


petrostar is offline

Reply With Quote
Old 01-23-2012, 02:43 AM   #2
de3isit
Feedback Score: 0 reviews
Recipes

Join Date: Sep 2011
Location: Murrieta, CA
Posts: 261
Liked 17 Times on 16 Posts
Likes Given: 3

Default

I just did the same thing. I used 3/8" copper tubing with a 1/4" flare fitting on both ends. On the gas valve side I used a 1/4" flare x 1/2" male pipe adapter.

Hope this helps.


de3isit is offline

Reply With Quote
Old 01-23-2012, 04:33 PM   #3
OneHoppyGuy
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 43 Times on 35 Posts
Likes Given: 52

Default

Fine thread brass fittings doesn't sound right.
Here are photos of the different components:





Which burners are you using? Which valves?
OneHoppyGuy is offline

Reply With Quote
Old 01-23-2012, 05:51 PM   #4
petrostar
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: Tacoma, Wa
Posts: 459
Liked 5 Times on 5 Posts

Default

The valves are brand new with 1/2" female ins/outs. The hose going into the burner looks just like the one to the right with the threaded brass nipple. I actually have two regulator hoses. Each of the hoses has the propane burner orifice on it that screws into the burner. The opposite end of that hose, I want to have go into the OUT gas valves. I took the regulator off of that end and am left with a Brass Male Thread, not female. Basically this is what I want my setup to do...

Propane tank - On/Off gas petcock - Propane Regulator - 1/2" gas main line - 2 Taps off main hardpiped into Gas valves IN - 1/2" Male Nipple OUT to Burners IN orifice.

The Nipple out to burners in is the connection I'm talking about, I see you have a 1/2" brass valve with a reducer on it. Where did you get the 2-female ended propane line and where did you get valve. I'll just have to return one of these burner regulators. I will adjust my burner pressures via the primary regulator and at the gas valves with a manometer.
petrostar is offline

Reply With Quote
Old 01-23-2012, 09:39 PM   #5
petrostar
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: Tacoma, Wa
Posts: 459
Liked 5 Times on 5 Posts

Default

I see I only needed to look for the hoses on your online store but what about those valves?
petrostar is offline

Reply With Quote
Old 01-23-2012, 09:47 PM   #6
OneHoppyGuy
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 43 Times on 35 Posts
Likes Given: 52

Default

The valves are standard gas supply valves
OneHoppyGuy is offline

Reply With Quote
Old 01-23-2012, 10:06 PM   #7
CollinsBrew
Feedback Score: 0 reviews

CollinsBrew's Avatar
Recipes

Join Date: Mar 2007
Location: Jacksonville, FL, Florida
Posts: 436
Liked 3 Times on 3 Posts

Default

The yellow flex hose that you can get for appliances at Lowe's or Home Depot comes with 3/8" Flare to 1/2"MIP fittings on each end. It's also rated for less than 2psi. I used the one with the built in safety valve coming out of the Honeywell valves and used a 3/8" Flare to 1/4 FIP to connect to the burner.

Here's the valve connection:

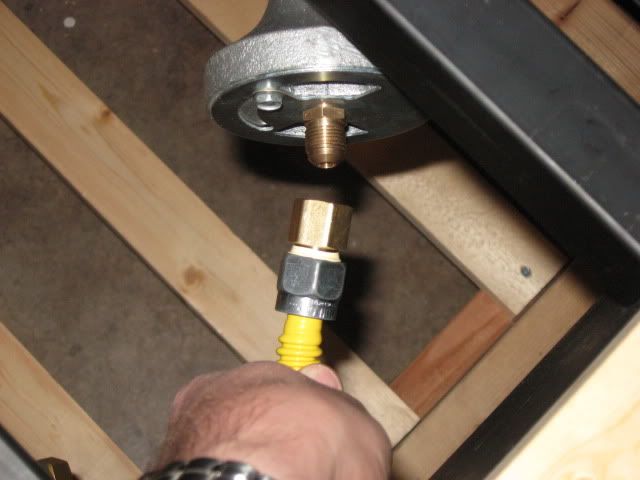

and this is the connection going to the burner:

__________________
Flying, golfing, boating and brewing. The first is my job. The other three I wish were my job.

I like beer. On occasion, I will even drink beer to celebrate a major event such as the fall of Communism or the fact that the refrigerator is still working.

Single Tier Wooden Brutus build
CollinsBrew is offline

Reply With Quote
Old 01-26-2012, 10:25 PM   #8
petrostar
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: Tacoma, Wa
Posts: 459
Liked 5 Times on 5 Posts

Default

Ok, I am still confused. Here is the connection that I have to go into my BG12 burners. The regulator hoses come with this burner orifice on them. I will be regulating the pressure twice, once at the propane tank via a regulator and the second time at the gas valve. I just want one fitting coming from my gas valve into the burner but cant figure out how to do that because of that tip on my hose. Do I have to use that tip or can I just go get one of the ones like you have shown screwed into your burner.
petrostar is offline

Reply With Quote
Old 01-26-2012, 10:28 PM   #9
petrostar
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2008
Location: Tacoma, Wa
Posts: 459
Liked 5 Times on 5 Posts

Default

Here it is
Click image for larger version

Name:	2012-01-26_14-20-58_478.jpg
Views:	608
Size:	44.3 KB
ID:	45096
petrostar is offline

Reply With Quote
Old 01-27-2012, 12:16 AM   #10
CollinsBrew
Feedback Score: 0 reviews

CollinsBrew's Avatar
Recipes

Join Date: Mar 2007
Location: Jacksonville, FL, Florida
Posts: 436
Liked 3 Times on 3 Posts

Default

Is the piece you took out of the regulator a flare fitting or standard pipe thread? Either way, you'd need a 1/2" MIP reduced to whatever size your fitting is coming out of your gas valve. I think that's what you're asking??

As far as your other* fitting goes, if you're going to use that hose, then it looks like you're stuck with that fitting as it's crimped onto your hose.
