Old 05-08-2007, 02:41 AM   #1
Ninkasi
Recipes

Jun 2006
Posts: 59
Liked 1 Times on 1 Posts



I'm going out to look at a few mini refrigerators in town that are for sale. I plan on building a kegerator myself. What should I be looking for/be cautious of when I'm looking at mini refrigerators?

For example: how big must it be to fit 1 cornelius-style keg and a CO2 tank inside? Where are the coolant lines located on mini refrigerators (i.e. are there some that simply can not be drilled into to make a keg tower tap?)? Small freezer inside: good, bad, or doesn't matter? I've seen that Sanyo makes usable models. Any other manufacturer or are they all good if they are the right size?

...or any other things that you think should be included in a "Users Guide to Making a Kegerator." Maybe something you need to consider before you purchased. Any help here would be great. Thanks.
__________________
Primary: (Golden) Grain Belt Clone

Secondary: PM Oatmeal Stout

Bottled: 1st Partial-Mash (IPA), Cletus' Slackjawed Yokel "Eye Pee Eh", Smarmy Marmot Kolsh, Bunson and Beaker Bock

Up next: World Domination


Reply With Quote
Old 05-08-2007, 03:05 AM   #2
Bsquared

Bsquared's Avatar
Recipes

Oct 2006
San Diego
Posts: 1,850
Liked 67 Times on 59 Posts


I converted a sanyo mini that is 28"tall by 15" deep. it can fit one corny and the 5lb CO2 tank.
Click image for larger version

Name:	Post2.jpg
Views:	612
Size:	13.9 KB
ID:	1646
First thing if you can get one that dose not have the compressor in the back bottom that would be best but I don't know if there are any like that. if you can only find ones with the compressor on the back bottom, you will have to remove the door shelves.I also put on a latch on the door so I could keep it closed.

Most Mini fridges use the top Ice box for cooling the whole thing. and this is the part were you can get in to trouble. the corny might not fit with the ice box in its current location. what I did was to GENTLY bend the coolant line so the ice box could be screwed to the back of the fridge.
Click image for larger version

Name:	Post4.jpg
Views:	607
Size:	4.1 KB
ID:	1647

Good luck!


Reply With Quote
Old 05-08-2007, 01:46 PM   #3
waskelton4

waskelton4's Avatar
Recipes

Mar 2006
Jackson, MS
Posts: 232
Liked 1 Times on 1 Posts


Hey Ninkasi,

If you decide to go the mini-fridge route and try and modify it (i.e. move any of the cooling parts at all) be VERY careful.

I bought one, got it home and was too excited to make my new purchase work so in the end i actually broke it trying to get it to do what i wanted.


My next plan of attack is to go the chest freezer route and if you haven't thought about that i would check it out

The only down side is that the footprint is larger so if space is a big issue then it might not be your answer.
the pros are..
more efficient, LOTS of room for more beers, you could lager in it.

here are some links to others projects.
http://brewing.bump.us/kegerator
http://www.msu.edu/~larson25/tutorials/kegerator.htm
http://www.oregonbrewcrew.com/freezer/freezer.html
http://www.west-point.org/users/usma.../kegerator.htm

i'm sold that this will be the best route for me.. I also plan on using an idea similar to this one to add fermentation temps to the rig.
http://homebrewtalk.com/showthread.php?t=29071



good luck!

Will
__________________
BAD SPELLERS OF THE WORLD UNTIE!!

Primary - AHS Mild Ale


Reply With Quote
Old 05-12-2007, 07:09 PM   #4
Ninkasi
Recipes

Jun 2006
Posts: 59
Liked 1 Times on 1 Posts


How do you go about "bending" the coolant line in a mini refrigerator?
__________________
Primary: (Golden) Grain Belt Clone

Secondary: PM Oatmeal Stout

Bottled: 1st Partial-Mash (IPA), Cletus' Slackjawed Yokel "Eye Pee Eh", Smarmy Marmot Kolsh, Bunson and Beaker Bock

Up next: World Domination


Reply With Quote
Old 05-12-2007, 09:25 PM   #5
mward
Recipes

May 2007
Posts: 204

Just bend it down, that's what I did with mine. If you hear a hiss, start over with a new fridge. I was very careful to make a very shallow bend, you don't want a kink which can lead to a leak.


Reply With Quote
Old 05-12-2007, 09:45 PM   #6

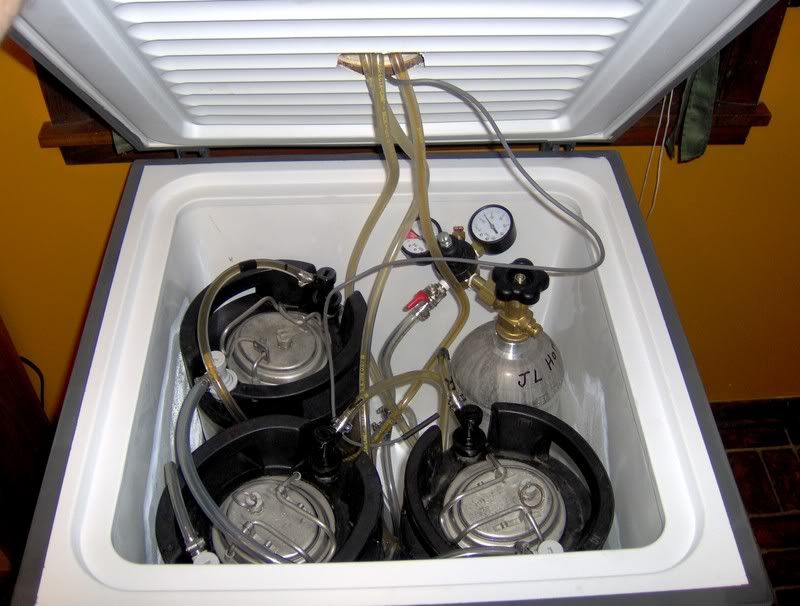

5 cu ft freezer!



__________________
Windy Ridge Brewing

Support your fire department!

On Tap: American Firefighter Ale
All Grain Porter
Two Rail Pale Ale

Kegged & ready: Fat Tire Amber Ale , Newcastle Brown Ale

Secondary: Red Ale "Raspberry"?
Primary: Primary: empty
Next up: Shiner Bock clone
My Brewery: http://s80.photobucket.com/albums/j1...1179680606.pbw


Reply With Quote
Old 05-13-2007, 12:27 AM   #7
waskelton4

waskelton4's Avatar
Recipes

Mar 2006
Jackson, MS
Posts: 232
Liked 1 Times on 1 Posts


Quote:
Originally Posted by Ninkasi
How do you go about "bending" the coolant line in a mini refrigerator?
Be careful.. I broke one of mine trying to bend it...

it cracked...

ws
__________________
BAD SPELLERS OF THE WORLD UNTIE!!

Primary - AHS Mild Ale


Reply With Quote
Old 05-13-2007, 02:51 AM   #8
davidr2340

davidr2340's Avatar
Recipes

Jan 2007
Mill Creek, WA
Posts: 428
Liked 17 Times on 17 Posts


IMO, you can't go wrong with the Sanyo 4912!!! It took about 1 1/2hrs to convert mine!!!


__________________
David - Mill Creek Brewing Co.

Primary: Empty
Kegged: Hazelnut Brown Ale / Tipple Twister Barleywine


Reply With Quote
Old 05-13-2007, 06:06 AM   #9
Bernie Brewer
Grouchy Old Fart

Bernie Brewer's Avatar
Recipes

Feb 2006
Eldorado, WI
Posts: 7,507
Liked 148 Times on 59 Posts


Quote:
Originally Posted by Ninkasi

For example: how big must it be to fit 1 cornelius-style keg and a CO2 tank inside? Where are the coolant lines located on mini refrigerators (i.e. are there some that simply can not be drilled into to make a keg tower tap?)? Small freezer inside: good, bad, or doesn't matter? I've seen that Sanyo makes usable models. Any other manufacturer or are they all good if they are the right size?


Jeezus, man, take a tape measure along and measure your cornies(you do have cornies already, right?) and do the math yourself. Then search the forum archives for one of the zillion threads already posted on this subject.

Sorry for the rude reply, but I been drinkin and that's when the EAC in me comes out.
__________________
I like to squeeze the nickle until the buffalo craps-mt rob

"Why don't we get drunk and screw?" Jimmy Buffett


Reply With Quote
Old 05-13-2007, 03:10 PM   #10
Catfish
Art by David Shrigley

Catfish's Avatar
Recipes

Jul 2005
Nishinomiya, Japan
Posts: 840
Liked 15 Times on 3 Posts


Quote:
Originally Posted by [email protected]
5 cu ft freezer!
Hey Ontap what are the internal dimensions of that freezer? Looks like a maximum keg to foot print ratio.
__________________
鯰 a.k.a. なまず a.k.a. Catfish


Reply With Quote
