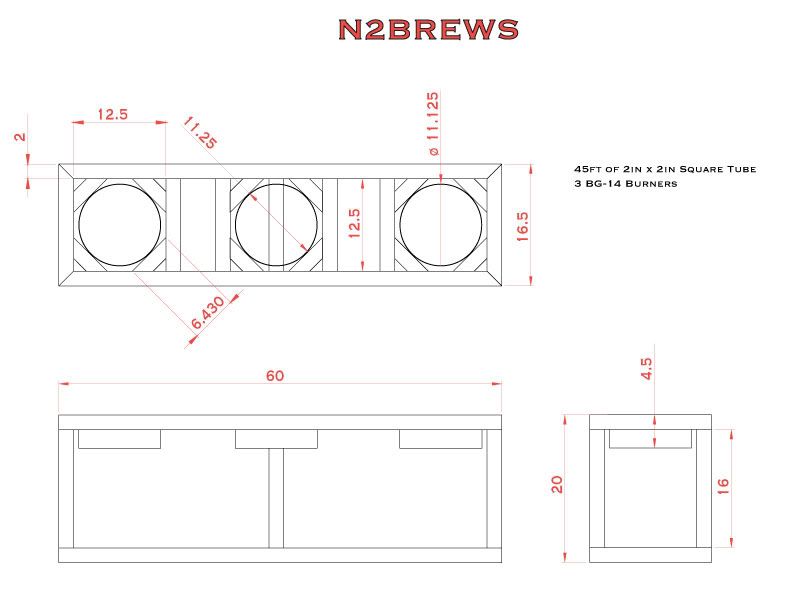

Here is the cut list so far. I'll add to it as I go but this is a good start
I'm putting this out there but please double check and "dry' fit before welding together.
If you find any mistakes please let me know ASAP:



n2fooz is offline

Reply With Quote
Old 01-09-2012, 10:49 PM   #52
Jones
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2010
Location: Garden City, Michigan
Posts: 27
Liked 1 Times on 1 Posts

Default

Thank you!

Looks great!


Jones is offline

Reply With Quote
Old 01-09-2012, 11:44 PM   #53
evandena
Feedback Score: 1 reviews
Recipes

Join Date: Dec 2011
Location: Madison, WI
Posts: 817
Liked 19 Times on 19 Posts
Likes Given: 3

Default

Quote:
Originally Posted by n2fooz View Post
Thanks to Sea1961, I'm going to add Stainless spacers at the top to help exhaust and protect the paint.
Can you show/explain this in more detail?
evandena is offline

Reply With Quote
Old 01-10-2012, 12:10 AM   #54
wncbrewer
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2011
Location: sylva, NC
Posts: 431
Liked 14 Times on 12 Posts
Likes Given: 1

Default

Quote:
Originally Posted by n2fooz

Thanks.
For mounting the burners, I used the heat shields. I drilled holes for the supplied burner screws at the bottom of the shield and mounted the burner to the shield. I then drilled and tapped (4) 10-32 holes on the 45 gussets. The burner/heat shield assembly is then mounted to the stand with (4) 10-32 stainless steel cap screws and washers.

Hope this helped.
Ok, thanks for the pic, your captions made things incredibly easy.

Also, are you using converted kegs or kettles? A couple discreetly drilled holes in the lower keg skirt could give the gas some place to go if you are going the keggle route. Thanks for providing the dimensions and cut sheet also, very helpful to those of us in the planning phase
wncbrewer is offline

Reply With Quote
Old 01-10-2012, 06:02 AM   #55
n2fooz
Feedback Score: 0 reviews

n2fooz's Avatar
Recipes

Join Date: Nov 2010
Location: Oxnard, Ca
Posts: 135
Liked 5 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by evandena View Post
Can you show/explain this in more detail?

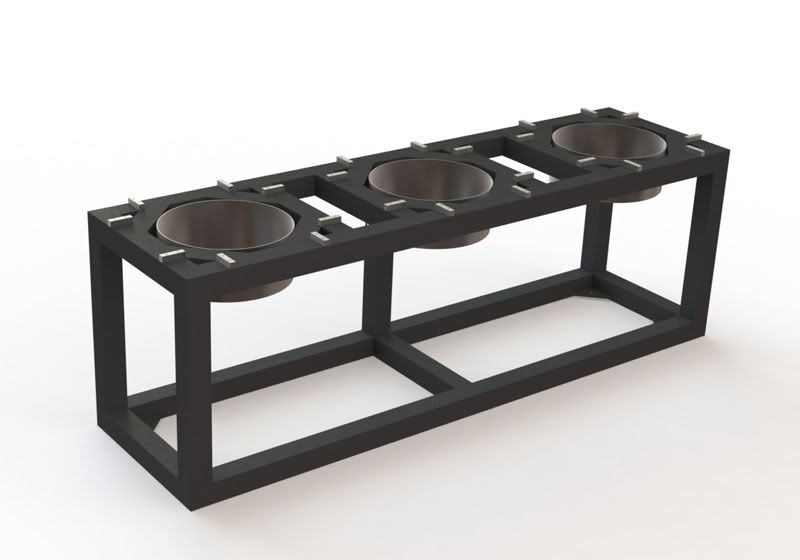

Here is a rendering of what I'm talking about. The standoffs will help protect against scratching the paint when moving the kettles around.

n2fooz is offline

Reply With Quote
Old 01-10-2012, 06:52 AM   #56
OneHoppyGuy
Feedback Score: 0 reviews
Recipes

Join Date: Nov 2009
Location: Concord, CA
Posts: 1,704
Liked 43 Times on 35 Posts
Likes Given: 52

Default

The stand-offs can be cantilevered further in and thus eliminating the large diagonal pieces.
OneHoppyGuy is offline

Reply With Quote
Old 01-10-2012, 03:01 PM   #57
n2fooz
Feedback Score: 0 reviews

n2fooz's Avatar
Recipes

Join Date: Nov 2010
Location: Oxnard, Ca
Posts: 135
Liked 5 Times on 5 Posts
Likes Given: 2

Default

Quote:
Originally Posted by OneHoppyGuy View Post
The stand-offs can be cantilevered further in and thus eliminating the large diagonal pieces.
Yeah, that would work except I already welded the diagonals in.
n2fooz is offline

Reply With Quote
Old 01-10-2012, 03:12 PM   #58
Huaco
Feedback Score: 0 reviews

Huaco's Avatar
Recipes

Join Date: Dec 2011
Location: Just south of Cow Town, Tx
Posts: 1,295
Liked 124 Times on 77 Posts
Likes Given: 38

Default

Quote:
Originally Posted by OneHoppyGuy View Post
The stand-offs can be cantilevered further in and thus eliminating the large diagonal pieces.
But without the diagonals, he could not mount the wind guard and thus, not able to mount the BG14
Huaco is offline

Reply With Quote
Old 01-10-2012, 03:52 PM   #59
evandena
Feedback Score: 1 reviews
Recipes

Join Date: Dec 2011
Location: Madison, WI
Posts: 817
Liked 19 Times on 19 Posts
Likes Given: 3

Default

Do you have a sketch up of the whole thing? That is sexy.
