Old 12-04-2011, 02:40 PM   #41
mikelikesit2000
Recipes

Apr 2010
TEMECULA, CA
Posts: 404
Liked 4 Times on 4 Posts


Quote:
Originally Posted by kladue View Post
Like you have done I used the Solar flux when tig welding parts onto kegs, did you back weld the inside of the couplings and buff it smooth?, or just the outside.
I only welded the outside, just tried to get enough penetration so the inside would be some what smooth. I am too big to be able to reach inside to weld and see what I am doing.
__________________
Brewed this year- "Maiden Voyage" Pale Ale - Peat Smoked Earl Grey Porter - American "Orange Blossom" Wheat - IRA -

My Build My Photo Gallery


Reply With Quote
Old 12-05-2011, 05:08 AM   #42
mikelikesit2000
Recipes

Apr 2010
TEMECULA, CA
Posts: 404
Liked 4 Times on 4 Posts

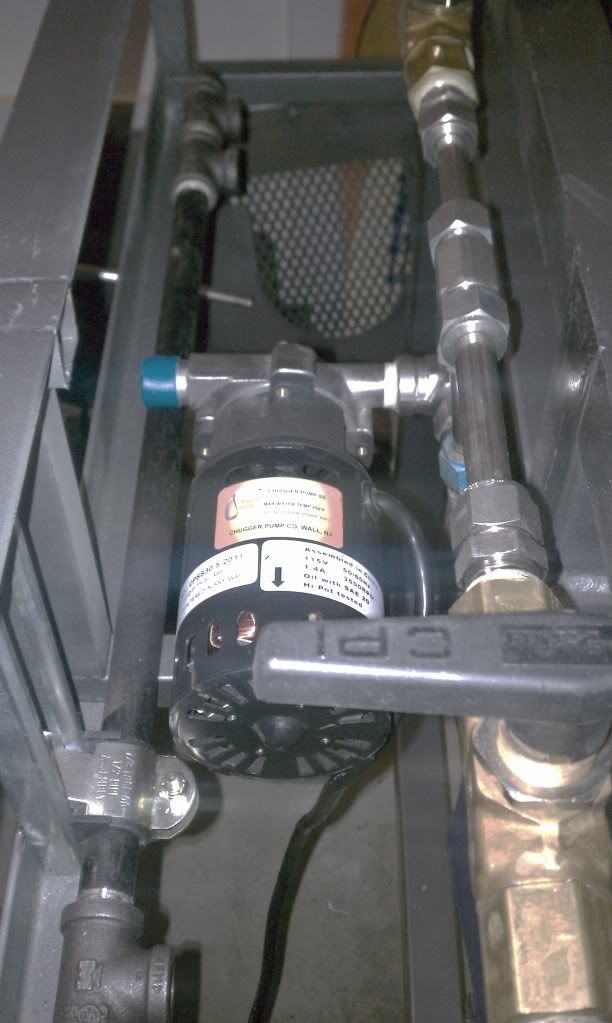

Started plumbing the gas line today. Just a basic manifold. I will run a low pressure regulator for the pilot lights, and a high pressure regulator for the supply to the burners.
[IMG][/IMG]
[IMG][/IMG]
At some point I will go to intermittent pilot controls but for now this will do.

And now....my reward for a day well done...
[IMG][/IMG]
__________________
Brewed this year- "Maiden Voyage" Pale Ale - Peat Smoked Earl Grey Porter - American "Orange Blossom" Wheat - IRA -

My Build My Photo Gallery


Reply With Quote
Old 12-09-2011, 12:42 PM   #43
mikelikesit2000
Recipes

Apr 2010
TEMECULA, CA
Posts: 404
Liked 4 Times on 4 Posts

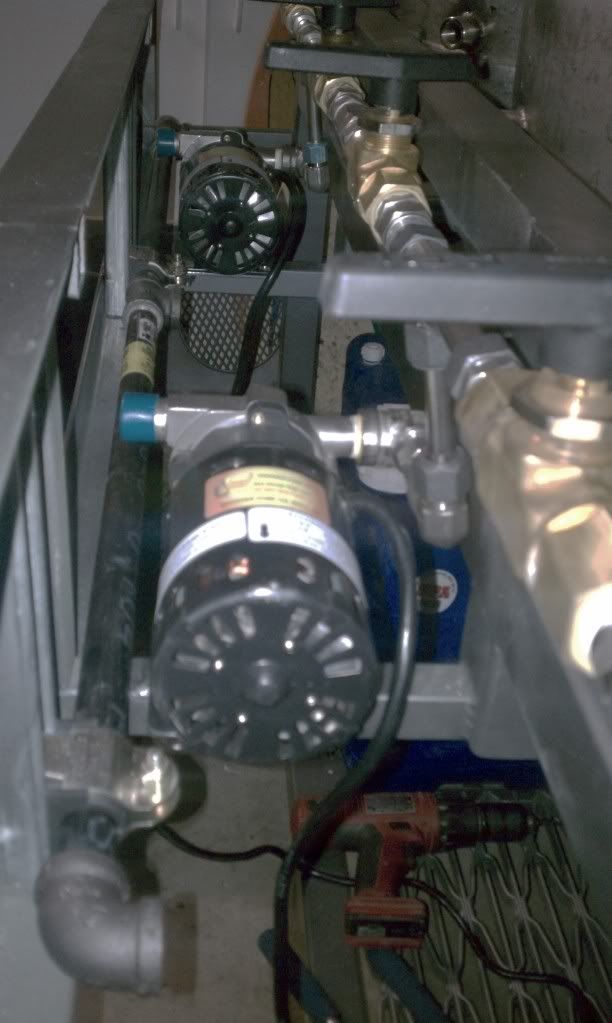

Started running the Gas manifold. The asco valve will control the burners, and the low pressure regulator will feed the pilot lights. Still need some parts but i'm getting close.
[IMG][/IMG]
__________________
Brewed this year- "Maiden Voyage" Pale Ale - Peat Smoked Earl Grey Porter - American "Orange Blossom" Wheat - IRA -

My Build My Photo Gallery


Reply With Quote
Old 12-23-2011, 12:11 PM   #44
mikelikesit2000
Recipes

Apr 2010
TEMECULA, CA
Posts: 404
Liked 4 Times on 4 Posts

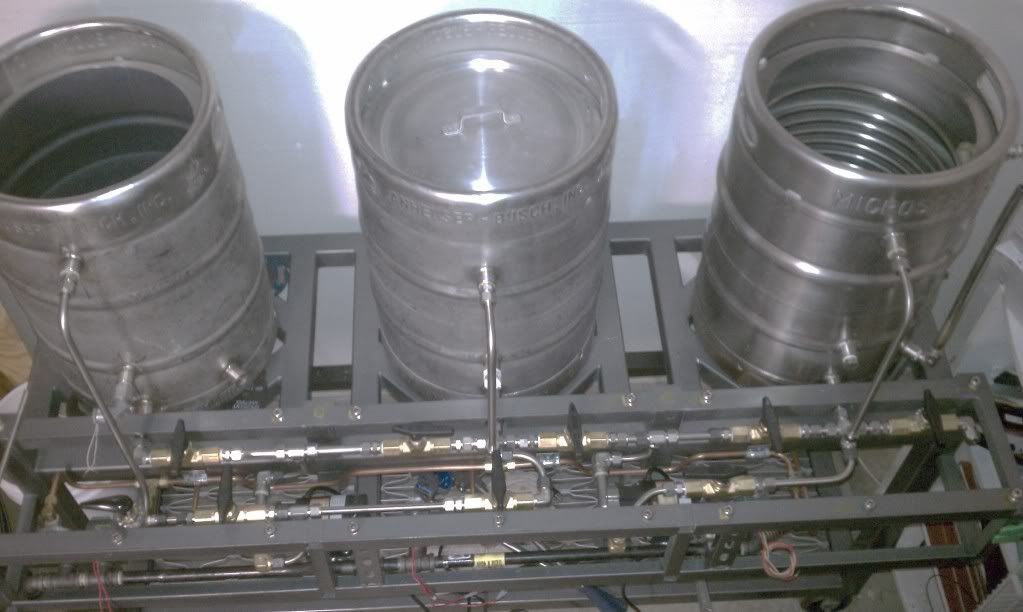

I'm getting close. The plumbing is 95% complete. I just need to buy a filter for the water supply, and run the tubing to connect the chiller in the BK. I ordered all the switches and lights to run the pumps and burners.

Here is a pic of the current state.
[IMG][/IMG]

I need to get the SS sheet to build the covers.
__________________
Brewed this year- "Maiden Voyage" Pale Ale - Peat Smoked Earl Grey Porter - American "Orange Blossom" Wheat - IRA -

My Build My Photo Gallery


Reply With Quote
Old 12-23-2011, 05:10 PM   #45
Coldies
Recipes

Oct 2010
Carlsbad, CA
Posts: 572
Liked 7 Times on 7 Posts


Looks awesome. I have a RIMS 2 Vessel single tier. I just bought my material from Escondido metal supply to build another 2 stands (one for a buddy just getting into AG and 1 for me). I'm moving to a 3 vessel system. Its sort of a hybrid system, electric RIMS tube and gas for the boil. Anyhow, stand looks great and keep up the good work.

Also, any chance you can PM me the Peat smoked Earl Grey Porter recipe? Looks interesting. Plus I'm a huge fan of smoked porters


Reply With Quote
Old 12-24-2011, 05:54 AM   #46
mikelikesit2000
Recipes

Apr 2010
TEMECULA, CA
Posts: 404
Liked 4 Times on 4 Posts


Quote:
Originally Posted by Coldies View Post
Looks awesome. I have a RIMS 2 Vessel single tier. I just bought my material from Escondido metal supply to build another 2 stands (one for a buddy just getting into AG and 1 for me). I'm moving to a 3 vessel system. Its sort of a hybrid system, electric RIMS tube and gas for the boil. Anyhow, stand looks great and keep up the good work.

Also, any chance you can PM me the Peat smoked Earl Grey Porter recipe? Looks interesting. Plus I'm a huge fan of smoked porters
I was just at Escondido Metal today. Picked up a sheet of aluminum for this build.

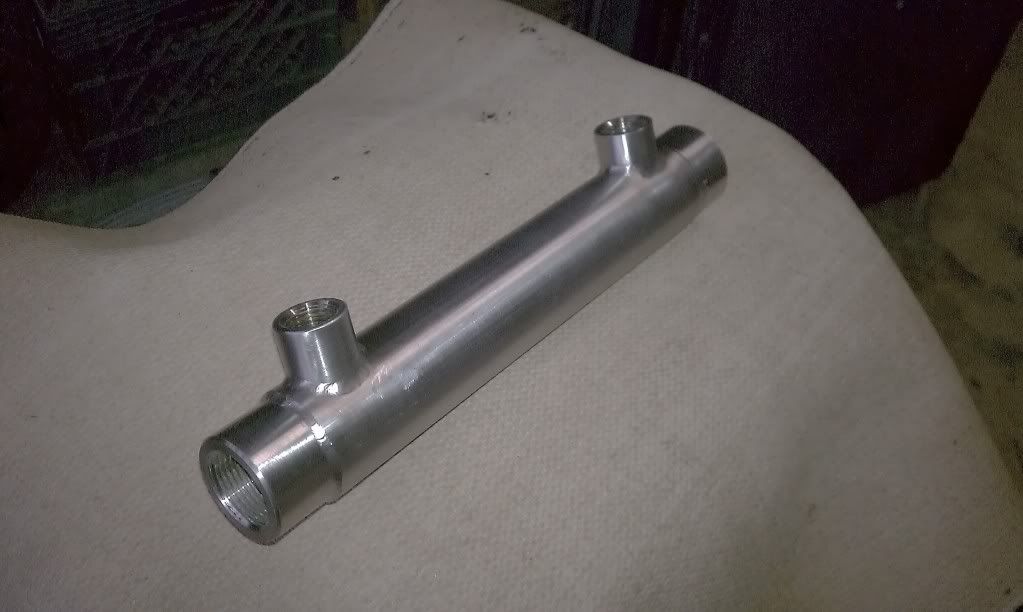

I may also use a rims tube. This is one I made for my build.
[IMG][/IMG]


I will send you the recipe. I need to find it. Give me a day or so.
__________________
Brewed this year- "Maiden Voyage" Pale Ale - Peat Smoked Earl Grey Porter - American "Orange Blossom" Wheat - IRA -

My Build My Photo Gallery


Reply With Quote
Old 12-24-2011, 05:47 PM   #47
Coldies
Recipes

Oct 2010
Carlsbad, CA
Posts: 572
Liked 7 Times on 7 Posts


Very cool. Dig the RIMS tube you made, since I went RIMS the overall quality of my beers really improved, from clarity, effeciency, etc.. . No rush on the recipe.


Reply With Quote
Old 12-26-2011, 05:15 AM   #48
mikelikesit2000
Recipes

Apr 2010
TEMECULA, CA
Posts: 404
Liked 4 Times on 4 Posts

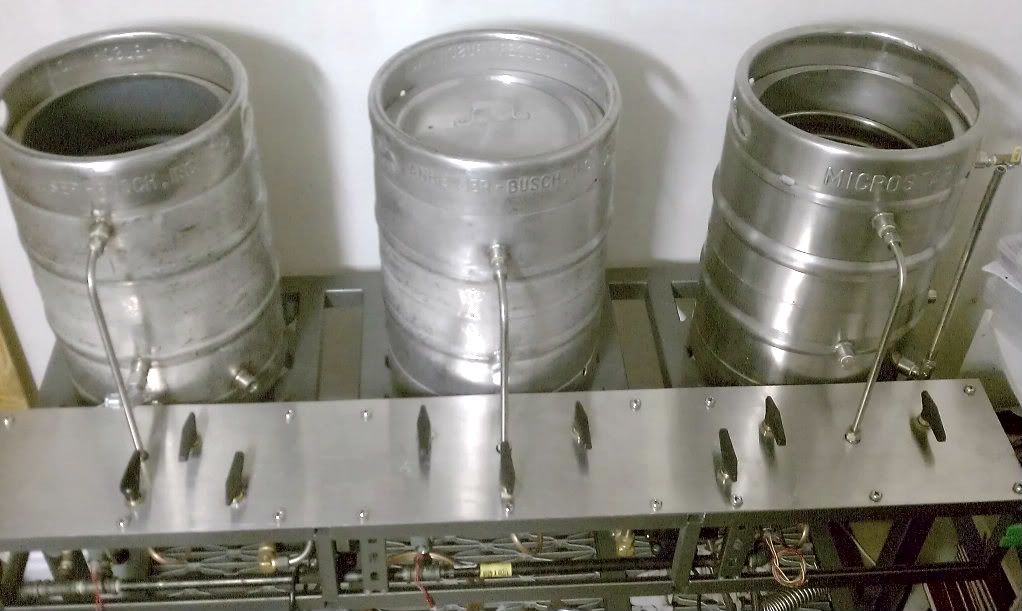

Today I worked on the top cover to my brutus. [IMG][/IMG]
__________________
Brewed this year- "Maiden Voyage" Pale Ale - Peat Smoked Earl Grey Porter - American "Orange Blossom" Wheat - IRA -

My Build My Photo Gallery


Reply With Quote
Old 12-26-2011, 05:57 AM   #49
ISUBrew79

ISUBrew79's Avatar
Recipes

Mar 2008
Iowa
Posts: 214
Liked 6 Times on 6 Posts


Quote:
Originally Posted by mikelikesit2000 View Post
Today I worked on the top cover to my brutus. [IMG][/IMG]
I really like the stainless water/wort plumbing on your stand, and would like to do something similar on my 3-vessel single tier. Would you happen to have a diagram showing all your valve placements and the different liquid paths you would utilize on a typical brew day? How about pics showing more detail of the pumps and plumbing on the front of the stand? I have been trying to figure out how to make a fully functional hard plumbing arrangement without using a ridiculous number of valves, and you seem to have done well in that respect.
__________________
College Creek Brewing Company, est. 2008
Primary: Belma/Cascade Pale Ale, Cranberry Melomel
Secondary: None
Bottled: Imperial Pumpkin Ale, Founder's Breakfast Stout Clone

On Tap:
Keg 1: Belgian Table Beer
Keg 2: Belgian Tripel


Reply With Quote
Old 12-27-2011, 04:06 PM   #50
Coldies
Recipes

Oct 2010
Carlsbad, CA
Posts: 572
Liked 7 Times on 7 Posts


Hey Mikelikesit200, I just saw that someone purchased a RIMS tube from you. I might be looking to upgraded mine, and I also have a friend that will be needing one sometime soon. What are you selling these for?


Reply With Quote
