Old 04-28-2011, 01:28 AM   #1
bellecitybrewer
Recipes

Mar 2011
Franksville, WI
Posts: 59


Im looking at buying three burners for my single tier stand from agri supply. http://www.agrisupply.com/product.as...4494&sid=&eid= The only problem is I am planning on using my natural gas line that runs out to my garage. I was wondering if anyone knows if that burner can run off of natural gas or not. And if you think it can, could you please explain what needs to be done to the burner itself? I'm a bit confused after reading all the threads about this...




Reply With Quote
Old 04-28-2011, 03:07 AM   #2
Dwain
Recipes

Feb 2009
Hill Country, TX
Posts: 1,135
Liked 5 Times on 5 Posts


The inlet of the burner has an orifice in it. It is sized for the burner to be used with high pressure propane. If you are going to use it with Nat. gas, this will need to be changed or drilled out. You can google the formula to figure out the correct size. I would talk with someone that works at a propane supplier to see if they can help you. Luck - Dwain




Reply With Quote
Old 04-28-2011, 03:58 AM   #3
kladue
Senior Member
Recipes

Dec 2006
Turner, Oregon, Oregon most of the time now
Posts: 2,305
Liked 53 Times on 47 Posts


You might want to buy these for a painless conversion to NG http://www.williamsbrewing.com/HURRI...-P2214C87.aspx.


Reply With Quote
Old 04-28-2011, 02:19 PM   #4
Dwain
Recipes

Feb 2009
Hill Country, TX
Posts: 1,135
Liked 5 Times on 5 Posts


I've never seen those. Thanks, Kladue


Reply With Quote
Old 04-28-2011, 10:15 PM   #5
RoadKing
Recipes

Oct 2005
Bayville, N.J.
Posts: 467
Liked 20 Times on 17 Posts


I bought 3 of those from the same place a couple months ago and I use them with Natural gas. They work fine, but I did drill out the orafices to 1/8"
When drilling out an orafice, step up the size in incriments and test to see which size is best. I researched alot before I did it and 1/8" usually seemed th be the correct size.


Reply With Quote
Old 05-05-2011, 04:15 AM   #6
beeboy
Recipes

Sep 2009
Spokane, WA
Posts: 74
Liked 6 Times on 5 Posts

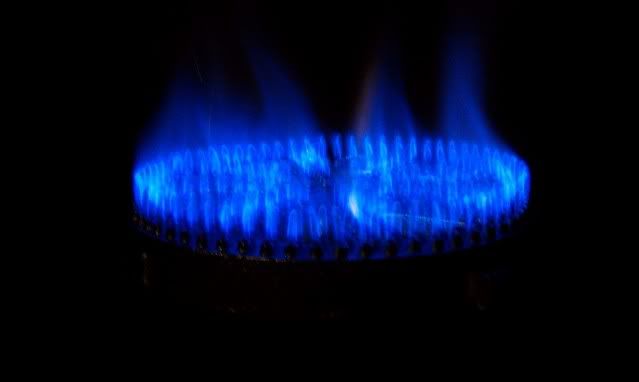

Here is the burner, with the Williams conversion valve, running on NG.




Reply With Quote
Old 05-05-2011, 01:50 PM   #7
badmajon
Recipes

Feb 2010
Lincoln, United Kingdom
Posts: 947
Liked 33 Times on 23 Posts


Hey, make sure that you have enough pressure in your home line to support the system first.
