Default tri clover gasket ?

I have about 40 tri clover conections on my rig, that is not quite complete. It is all hard piped with 316L stainless. I already have about 20 PTFE gaskets that i have been using for mock up, but there are many different types of gaskets available PTFE, BUNA, Platinum Silicone, EPDM, Tuf-steel etc. etc. My question is what is the best material for the application? I am sure some of them are more flexible than others, some are more expencive than others, they are all food safe. and all fit within the temp range we deal with, I just need some opinions before i place an order. Thanks for the help.


__________________
I may be a little scroungy , at least I'm not vain !!
sanch is offline

Reply With Quote
Old 04-21-2011, 12:21 AM   #2
kickflip_mj
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2008
Posts: 1,054
Liked 103 Times on 70 Posts
Likes Given: 12

Default

Please post a pic of your rig.. This is something I have been contimplating recently and this may push me over the edge.


kickflip_mj is online now

Reply With Quote
Old 04-21-2011, 12:23 AM   #3
doctorsbro
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: council bluffs, iowa
Posts: 174
Liked 2 Times on 2 Posts

Default

pics please
doctorsbro is offline

Reply With Quote
Old 04-21-2011, 01:07 AM   #4
jcav
Senior Member
Feedback Score: 0 reviews

jcav's Avatar
Recipes

Join Date: Jul 2010
Location: Central Florida
Posts: 233
Liked 1 Times on 1 Posts
Likes Given: 2

Default

Sanch, I would really like to see a photo of your rig. Derrin who is a vendor on this site (Brewer's Hardware) has some good info on tri clover fittings, connections, sizes, etc. He also touches on the different gaskets that he carries and their uses, scroll down to the bottom of the page on the attached link for gasket info, if you haven't seen it already.

http://www.brewershardware.com/how_t..._fittings.html

Hope this helps with your order decision.

John
__________________
"Talent is hitting a target no one else can hit. Genius is hitting a target no one else can see."

"Just because your paranoid doesn't mean they really aren't after you!"
jcav is offline

Reply With Quote
Old 04-21-2011, 02:10 AM   #5
pickles
Feedback Score: 0 reviews

pickles's Avatar
Recipes

Join Date: Feb 2008
Location: Columbus
Posts: 2,019
Liked 49 Times on 41 Posts
Likes Given: 23

Default

PTFE gaskets are used when you want to turn the fitting, like a racking arm. For simple connection purposes on food grade equipment (breweries) use silicone, it's flavor neutral, very flexible and high temp.
__________________
Gaptooth Brewhouse
pickles is offline

Reply With Quote
Old 04-21-2011, 02:57 AM   #6
WOODIE40
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2011
Location: Mendon, Mo.
Posts: 35
Liked 1 Times on 1 Posts
Likes Given: 1

Default

EPDM good all round gasket good wear and little higher temperature rating


Woodie40
WOODIE40 is offline

Reply With Quote
Old 04-21-2011, 03:02 AM   #7
sanch
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2009
Location: Mesa town, AZ
Posts: 255
Liked 4 Times on 4 Posts

Default

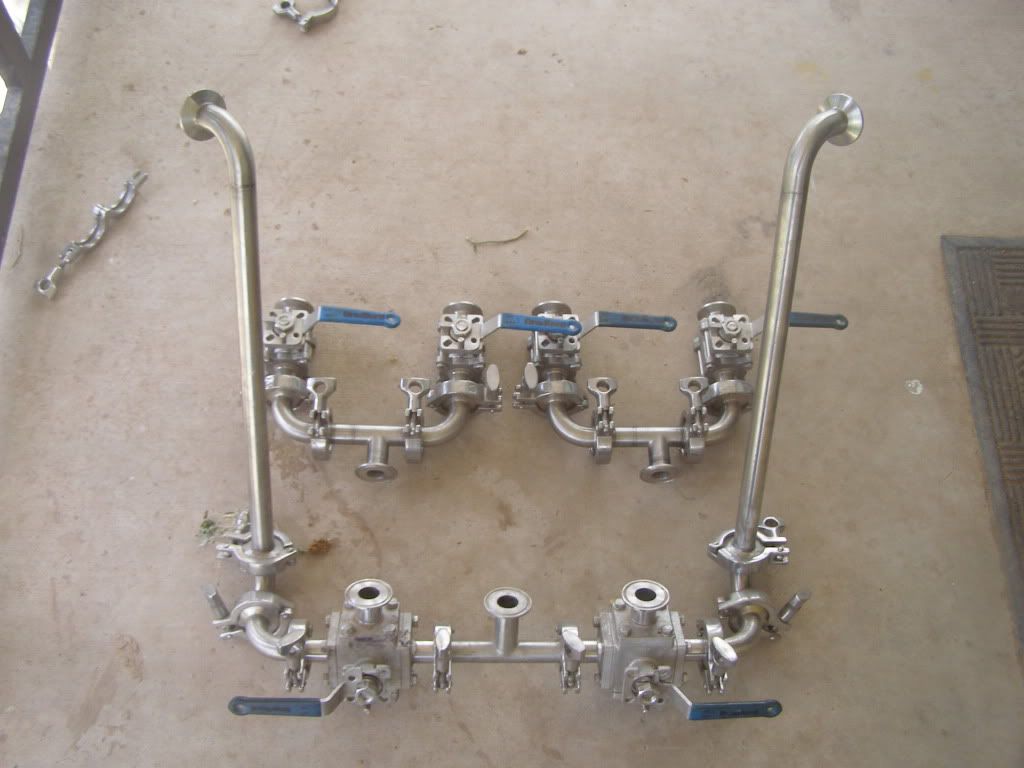

here is a link to my "build" thread i think it doesent get much attention because of the title. I will be posting up more tomorrow i have been slackin. just a word to the wise dont even bother with hard pipe'd tri clover unless you have #1 fab skills #2 ready access to a tig welder and somebody that knows how to use it #3 deep pockets!!! I was fortunate enough to find all of my tri clover stuff at a scrap yard!!! i bought 400 LBS for 88 cents per LB. I made a few hundred bucks selling off the stuff i did'nt need. Fabricating this stuff is very tedious and time consuming. But it is cool as **** and well worth the effort !!! if you are up for it.

http://http://www.homebrewtalk.com/f51/no-experience-ag-10-gal-1-tier-rig-build-help-139950/
