I have been yeast culturing or "ranching" for some time now. I find it brings me that much closer to making the beer completely from scratch. Everything was great at first and ok still. But Ive noticed smaller growths when making a starter compared to when I first started. So after talking to a few microbiologists, doing lots of research on a site called Homebrewtalk.com (the best site ever ), And listening to a few pod casts. I see no other choice but to move my master stocks into the freezer and re-culture from that to a working plate every 4-6 months. For a better vitality of the yeast master stocks I will remove as much water as I possibly can, move to the fridge for 24 hours then to the freezer. In order to do this I feel centrifugation is the only way to go. But not being able to drop a couple hundred on one I had to break out the old D.I.Y. toolbox and here's what I did.

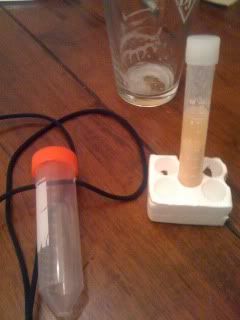

I attached a sting to the red capped tube by drilling two holes near the top. I tried not to get too close because I didn't want to loose to much structural integrity.

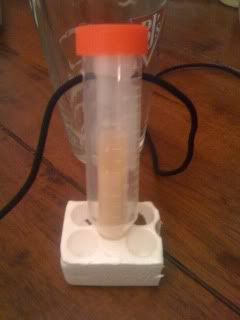

The tube of yeast slurry I got from the bottom of a starter slides right into the red capped tube. Put the cap back on for support and just in case the tube breaks. Grab the end of the string and get to spinin that thing like it was one of those airplanes attached to a string. (Note: Watch out for children, pets, and SOWMBO <----her)

I spin for about 30 seconds to a minute. How long you spin really depends on how many you have to do, and how long you can last with out passing out.

After a quick spin I will pipette off the liquid part top up with more slurry and spin again until I get about 3-4 ml of compacted yeast. Add about the same amount of mineral oil and begin the freezing process.
__________________
Quote:
Originally Posted by passedpawn View Post
Rdwhahb&dbad!
Translation: Relax don't worry have a home brew and don't be a ****!
Quote:
Originally Posted by Jdecarol View Post
Oh the things I would do to that pint.
California Common Pint


Reply With Quote
Old 03-31-2010, 08:21 AM   #2
lackey2000
Recipes

Dec 2008
Denver
Posts: 120
Liked 6 Times on 4 Posts


+1 - Very nice! I like the simple aproach. Now, if I could only do that with my carboy...
__________________
fermenting: Edwort's Apfelwein
kegged: soda h2o, Belgium Pale Ale
, SMaSH IPA, Nora Bear's Brown
killed: IPA 'lite', Kölsh
current setup: under review


Reply With Quote
Old 03-31-2010, 01:27 PM   #3
sjlammer
Recipes

Jul 2007
Albany, NY
Posts: 539
Liked 6 Times on 6 Posts


HuMmmm I have an old router, 20 dollar speed control from hrbor freight....

I need to find a reason to build a centrifuge now
__________________
~"A fine beer may be judged with only one sip, but it's better to be thoroughly sure.”

On Deck: Spruce APA, Chambord Fortified Chocolate Porter, Imperial IPA

Primary:
Primary:
Secondary: Belgian Dark Strong Ale
Conical:
Lagering: None
Kegged/Drinking: Cascade, Cent., Amarillo Pale Ale
Kegged/Drinking: Belgian Pale Ale (HG yeast for yeast cropping see above)
Bottled: ESB


Reply With Quote
Old 03-31-2010, 02:34 PM   #4
pjj2ba
Look under the recliner

pjj2ba's Avatar
Recipes

Jul 2006
State College, Pennsylvania
Posts: 3,379
Liked 206 Times on 167 Posts


Great Idea! One tip, the longer the string, the greater the G-forces generated and the less time you need to spin. Of course this may mean swinging outside, and stopping it smoothly to maintain the pellet will be trickier.
__________________
On Tap: Doppelbock O'fest, Pale Ale, cider
Kegged and Aging/Lagering: CAP, Ger. Pils, OKZ (std Amer. lager), CZ Pils, Amer. Wheat, Rye IPA, Saison
Secondary:
Primary: Ger Pils, CAP
Brewing soon: Pale lager, Amer. wheat
Recently kicked : (
Pilsner Urquell Master Homebrewer
(1st NYC 2011, 2nd NYC 2012)
P U crowns winners in its inaugural master HB competition


Reply With Quote
Old 03-31-2010, 03:36 PM   #5
JayInJersey

JayInJersey's Avatar
Recipes

May 2009
New Jersey
Posts: 595
Liked 1 Times on 1 Posts


So if you strung two of them using one of those collapsible mash stirrers you could do this by drill.

Interesting...


Reply With Quote
Old 03-31-2010, 03:50 PM   #6
passedpawn
Waste Allocation Load Lifter - Earth Class

passedpawn's Avatar
Recipes

Apr 2009
☼ Clearwater, FL ☼
Posts: 26,617
Liked 7036 Times on 4168 Posts


Using a string is something I would have never thought of (because I like to make everything as complicated as possible). Frankly, I'm surprised it worked. That is some great thinking. Good job.

I was thinking about making one of my DIY stirplates into a centrifuge. I just need a round to-it.
__________________
- Andrew


Reply With Quote
Old 03-31-2010, 03:59 PM   #7
ColoradoXJ13
Recipes

Dec 2006
Somerville, MA
Posts: 1,258
Liked 22 Times on 10 Posts


You are going to want to add some glycerol (20% or so final concentration) to the yeast before freezing. If you freeze the slurry alone, you are going to end up with mostly non-viable yeast.


Reply With Quote
Old 03-31-2010, 10:17 PM   #8
krops13
Recipes

Aug 2009
SoCal
Posts: 270
Liked 2 Times on 2 Posts


What does the glycerol do?
__________________
Quote:
Originally Posted by passedpawn View Post
Rdwhahb&dbad!
Translation: Relax don't worry have a home brew and don't be a ****!
Quote:
Originally Posted by Jdecarol View Post
Oh the things I would do to that pint.
California Common Pint


Reply With Quote
Old 03-31-2010, 10:23 PM   #9
leboeuf
Recipes

Feb 2009
Albuquerque, NM
Posts: 320
Liked 2 Times on 2 Posts


Favorite HBT post of the week! Awesome idea.


Reply With Quote
Old 03-31-2010, 11:23 PM   #10
passedpawn
Waste Allocation Load Lifter - Earth Class

passedpawn's Avatar
Recipes

Apr 2009
☼ Clearwater, FL ☼
Posts: 26,617
Liked 7036 Times on 4168 Posts


Glycerol protects the yeast cell walls as the water freezes. Without it, when the water freezes, ice crystals literally stab and destroy some amount of the yeast cells. It is used by biologists who freeze cells in much lower temps than we do.

Glycerol also will lower the freezing temperature of the mix. I believe some have a problem getting the yeast to freeze at all with glycerol. My freezer goes down to about 0F, and I do get frozen tubes. Just barely, though.

I do about 70% yeast slurry, 15% water, 15% glycerol into the tube, shake really good, freeze as fast as possible. FlyGuy on this forum has an excellent write-up.

My local walmart has glycerol in the bandaid / hand sanitizer area. $3-ish.
__________________
- Andrew


Reply With Quote
