Old 01-11-2011, 08:00 PM   #51
GilaMinumBeer

GilaMinumBeer's Avatar
Recipes

Jan 2008
Posts: 58,368
Liked 7413 Times on 6080 Posts


Never had an issue with the silicone tubing and actually prefer it since it hold up better at temp, IMO. Of course, I don't have any lines connected where there would be back pressure.


Reply With Quote
Old 01-11-2011, 11:00 PM   #52
jamcclureuk
Recipes

Jan 2011
St. Louis, MO
Posts: 48
Liked 1 Times on 1 Posts


I just checked and the max output of the March pump is 5.23psi so I don't think that there is really any worries with the silicone tubing exploding. Thanks guys!


Reply With Quote
Old 01-12-2011, 02:20 PM   #53
Desert_Sky

Desert_Sky's Avatar
Recipes

Mar 2006
Sierra Vista, AZ
Posts: 4,077
Liked 53 Times on 41 Posts


Quote:
Originally Posted by jamcclureuk View Post
What are your thoughts on the tubing? I see that you are using silicone tubing. I have read that it doesn't hold more than 10 PSI or else it will burst. It looks like the Sabco Chill Wizard uses the reinforced vinyl tubing.... Where did you get your Silicone tubing?
No issues with swelling at all from the pressure. I picked it up at Morebeer, which is another issue all together. Its rarely in stock and they don't like to tell you it isn't until after you've purchased it
__________________
Desert Sky Brewing Co.
Sierra Vista, AZ


Reply With Quote
Old 01-22-2011, 10:29 PM   #54
jamcclureuk
Recipes

Jan 2011
St. Louis, MO
Posts: 48
Liked 1 Times on 1 Posts

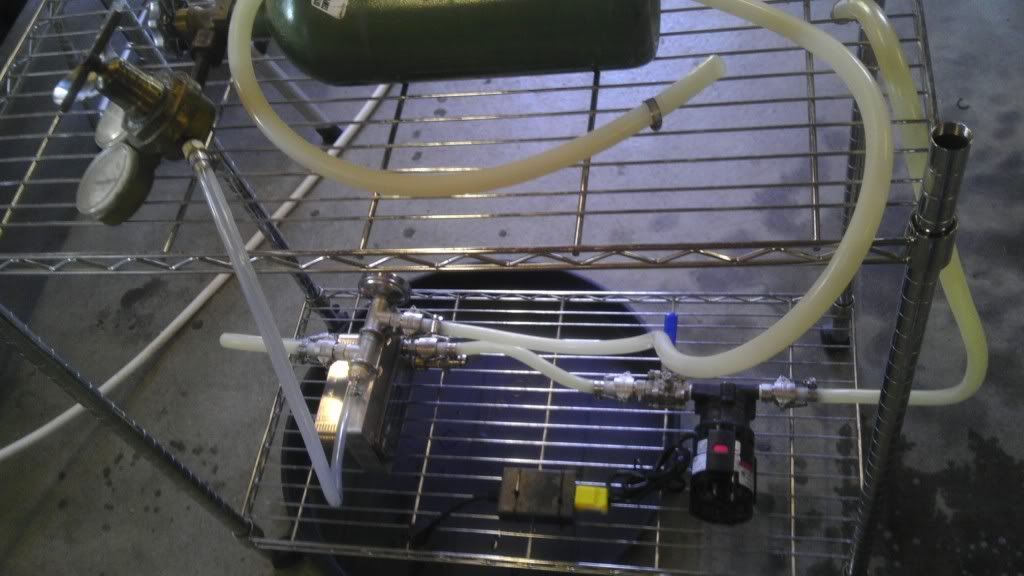

I finally finished my chilling system this afternoon. I can't wait to test it out. It is basically the same components that are in the OP's DIY ChillWizard.



Switch the hoses using the camlock S.S. quick-disconnects and it reverses the flow for cleaning.



Here is the thermometer assembly with the built in oxygenation stone.

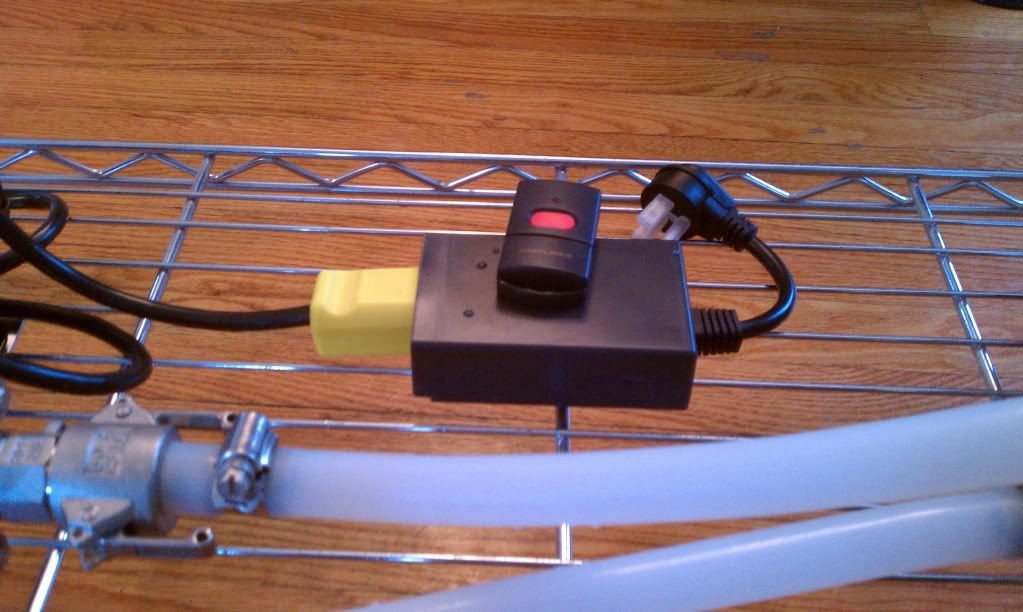

I also found this great remote control that will turn the pump on and off.




Reply With Quote
Old 01-22-2011, 10:44 PM   #55
TonyR
Recipes

Jul 2010
Cleveland, Ohio
Posts: 224
Liked 4 Times on 4 Posts


Nice remote, where did you find it?


Reply With Quote
Old 01-22-2011, 10:50 PM   #56
jamcclureuk
Recipes

Jan 2011
St. Louis, MO
Posts: 48
Liked 1 Times on 1 Posts


Quote:
Originally Posted by TonyR View Post
Nice remote, where did you find it?
Amazon. About $15 plus shipping. It is the Skylink WS-100/WS-100N Wireless Remote Control


Reply With Quote
Old 03-31-2011, 02:22 PM   #57
pola0502ds
Recipes

Jan 2011
Posts: 889
Liked 2 Times on 2 Posts


Any pictures of the diffusion stone assembly? Anyone that has installed this stone, is this the way to go compared to other methods?


Reply With Quote
Old 10-09-2011, 03:12 PM   #58
ultravista
Recipes

Mar 2007
Las Vegas, Nevada
Posts: 2,356
Liked 57 Times on 47 Posts


Desert_Sky - are you still using the scrubbie pad in the kettle pickup tube? Can you post a few photos?

jamcclureuk - I've been thinking about using a wire shelf like that for my own setup. Can you post more photos of the entire rig, top to bottom?


Reply With Quote
Old 10-20-2011, 02:26 PM   #59
jamcclureuk
Recipes

Jan 2011
St. Louis, MO
Posts: 48
Liked 1 Times on 1 Posts


Here you go.



Reply With Quote
Old 12-23-2012, 03:15 AM   #60
mrklueber
Recipes

Oct 2012
Xenia, Ohio
Posts: 129
Liked 5 Times on 5 Posts


I am getting ready to build a similar project, although the plate chiller will be different model from the Therminator due to cost. Thanks so much for all the ideas and pictures. When finished, I will try to post pictures of my project.


Reply With Quote
