Default Element Grounding

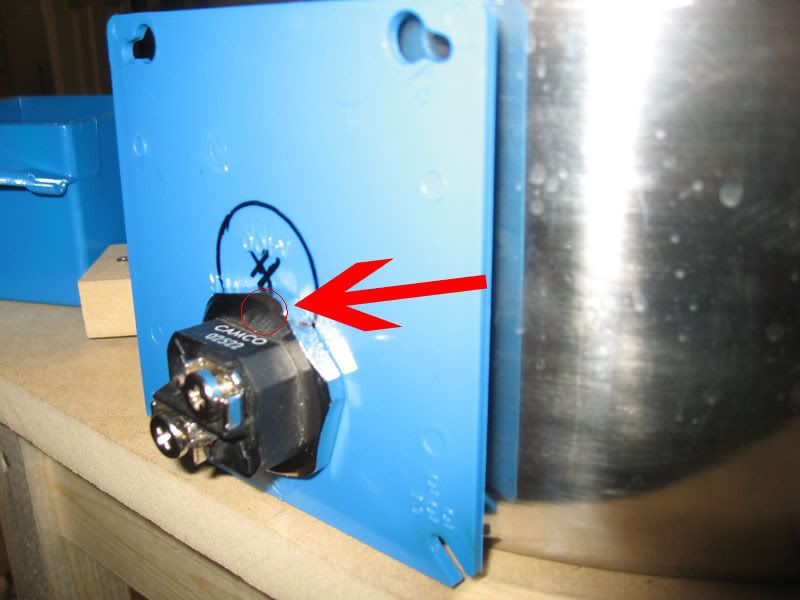

Would the element/brew pot be sufficiently grounded if I epoxied my ground wire to the spot show in the picture below? I think it would be but I'd like additional opinions. Thanks.



zGrubermeister is offline

Reply With Quote
Old 02-21-2010, 05:23 PM   #2
TipsyDragon
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2009
Location: California
Posts: 2,607
Liked 22 Times on 20 Posts

Default

i don't know how conductive your epoxy is. i would recommend soldering or welding it on there.


TipsyDragon is offline

Reply With Quote
Old 02-21-2010, 05:26 PM   #3
hoppymonkey
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: north atlanta
Posts: 1,021
Liked 11 Times on 9 Posts
Likes Given: 1

Default

The wire just has to be in contact with the actual metal. Looks like you to need to grind off some paint first.
hoppymonkey is offline

Reply With Quote
Old 02-21-2010, 05:30 PM   #4
wilserbrewer
BIAB Expert Tailor
Vendor Ads
Feedback Score: 10 reviews

wilserbrewer's Avatar
Recipes

Join Date: May 2007
Location: Jersey Shore, Jersey
Posts: 7,959
Liked 766 Times on 613 Posts
Likes Given: 15

Default

Gluing on a ground does not seem like good practice to me...you really want a mechanical connection. You can drill a hole and put a ground screw at the location shown, or even wrapping the ground wire around the lug prior to installing would be far better than glue.

Rather than a plastic box...you could use a metal one and ground to that, assuming you have ground b/w the box and element.

wilserbrewer is offline

Reply With Quote
Old 02-21-2010, 06:09 PM   #5
The Pol
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2007
Posts: 11,774
Liked 81 Times on 69 Posts
Likes Given: 14

Default

Since your element is connected to your kettle, why not ground the kettle?
The Pol is offline

Reply With Quote
Old 02-21-2010, 06:20 PM   #6
zGrubermeister
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2010
Location: Austin
Posts: 41
Liked 1 Times on 1 Posts

Default

Quote:
Originally Posted by The Pol View Post
Since your element is connected to your kettle, why not ground the kettle?
Well, I was trying to avoid drilling another hole in my kettle but that does seem like the best idea aside from drilling and tapping a hole for a ground screw in my element. Grounding to the kettle would be much cheaper for me.
zGrubermeister is offline

Reply With Quote
Old 02-21-2010, 06:35 PM   #7
samc
Feedback Score: 1 reviews
Recipes

Join Date: Aug 2008
Location: Portland OR
Posts: 5,423
Liked 60 Times on 56 Posts
Likes Given: 29

Default

Good quality SS hose clamp with bolt & nut through the band. Then tighten that around the element hex thingy. Works well on my RIMS element.
samc is offline

Reply With Quote
Old 02-21-2010, 07:57 PM   #8
Huizer
Feedback Score: 0 reviews
Recipes

Join Date: Oct 2009
Location: Hamilton Ontario
Posts: 29
Liked 3 Times on 2 Posts
Likes Given: 3

Default

I drilled and tapped a 4-40 screw into one of faces of the flange bolt right where your arrow points. I took the ground wire and soldered a tab to it that i could screw in.

Easy and looks great.

Dan
Huizer is offline

Reply With Quote
Old 02-21-2010, 09:33 PM   #9
BrewBeemer
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2006
Location: island, in an atoll
Posts: 3,513
Liked 21 Times on 21 Posts
Likes Given: 7

Default

Add a washer flush to the top surface of the nut with a quick Mig weld then thru bolt with a 10-32 or 10-24 screw. Use a crimped lug and ground wire. The elements grounded directly to itself vs relying on the element contact to the kettle plus a hole in the kettle to ground.
__________________
Bier Jagdwaffe... Bier 30 zeit.....~~=o&o>..........

BrewBeemer is offline

Reply With Quote
Old 02-21-2010, 09:37 PM   #10
The Pol
Feedback Score: 0 reviews
Recipes

Join Date: Feb 2007
Posts: 11,774
Liked 81 Times on 69 Posts
Likes Given: 14

Default

I thought the element contacted the kettle via the water if not metal to metal.
