A single receptacle is fine, they exist for this sort of application. A duplex receptacle may be cheaper though since they are more common.


The enclosure should really be something properly rated as an electrical equipment enclosure. No reason you can't cover that with wood for appearance.


Reply With Quote
Old 02-27-2013, 08:56 PM   #3412
Thursday88
Recipes

Feb 2013
Posts: 8


Been reading this thread since yesterday and I'm in the process of gathering everything. I'm wondering if I am on the right track.

Black = hot
Gray = neutral
Green = ground

None of the the only connections are at the terminal block. The intersections are just wires passing each other.



Reply With Quote
Old 02-27-2013, 09:00 PM   #3413
blaster_54738

blaster_54738's Avatar
Recipes

Jan 2012
Eleva, WI
Posts: 481
Liked 50 Times on 44 Posts


Quote:
Originally Posted by Thursday88 View Post
Been reading this thread since yesterday and I'm in the process of gathering everything. I'm wondering if I am on the right track.

Black = hot
Gray = neutral
Green = ground

None of the the only connections are at the terminal block. The intersections are just wires passing each other.

You only need one neutral wire off the receptacle, not 2, there is still the bridge there that you don't need to break on the neutral side...other than that looks good


Reply With Quote
Old 02-27-2013, 09:51 PM   #3414
Thursday88
Recipes

Feb 2013
Posts: 8


Thanks blaster, much appreciated.


Reply With Quote
Old 02-28-2013, 05:25 AM   #3415
Padawan
Recipes

Jan 2013
st. paul, minnesota
Posts: 50


Is this comparable to a Johnson temp controller? does it have a delay function?


Reply With Quote
Old 02-28-2013, 04:16 PM   #3416
Thursday88
Recipes

Feb 2013
Posts: 8

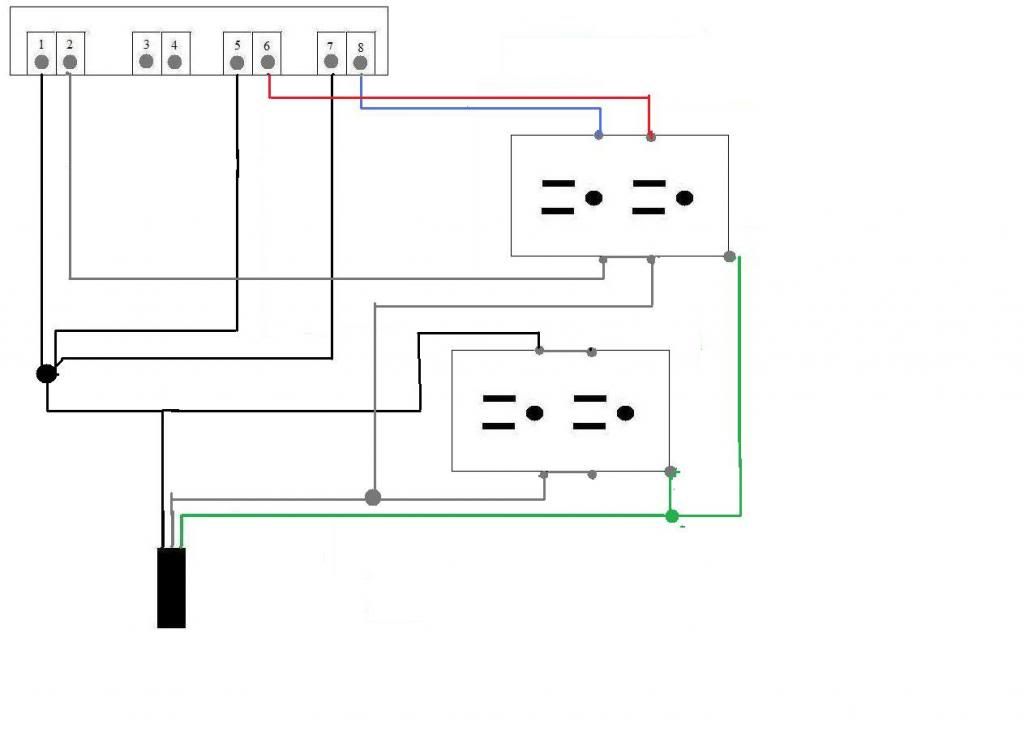

Another question. Would either of these be viable to wire up another receptacle for always hot?

1.


Or add another terminal/block and a jumper to keep it at 2 wires per connection.
2.


I know this is supposed to be a simple circuit and I think I might have it wired correctly but I wanted to make sure before I started.


Reply With Quote
Old 02-28-2013, 04:26 PM   #3417
Huaco

Huaco's Avatar
Recipes

Dec 2011
Just south of Cow Town, Tx
Posts: 1,380
Liked 141 Times on 88 Posts


If you have the two receptacles in a 2-gang box, you can just daisy chain the grounds and neutrals. This will reduce the amount of wires going back to the terminal block.


Reply With Quote
Old 02-28-2013, 05:06 PM   #3418
Thursday88
Recipes

Feb 2013
Posts: 8


Quote:
Originally Posted by Huaco View Post
If you have the two receptacles in a 2-gang box, you can just daisy chain the grounds and neutrals. This will reduce the amount of wires going back to the terminal block.
Well they will be on opposite sides of the box. So would a daisy chain still be a good alternative?


Reply With Quote
Old 02-28-2013, 05:43 PM   #3419
Huaco

Huaco's Avatar
Recipes

Dec 2011
Just south of Cow Town, Tx
Posts: 1,380
Liked 141 Times on 88 Posts


Quote:
Originally Posted by Thursday88 View Post
Well they will be on opposite sides of the box. So would a daisy chain still be a good alternative?
Probably not.
How many posts will your terminal block have? You could just install 2 small terminal blocks... a hot and a neutral block each. You will easily be able to connect both grounds to one post of the terminal block if you make sure to cut your jumper short of that "ground" post on the terminal block.


Reply With Quote
Old 02-28-2013, 05:49 PM   #3420
Thursday88
Recipes

Feb 2013
Posts: 8


Quote:
Originally Posted by Huaco View Post
Probably not.
How many posts will your terminal block have? You could just install 2 small terminal blocks... a hot and a neutral block each. You will easily be able to connect both grounds to one post of the terminal block if you make sure to cut your jumper short of that "ground" post on the terminal block.
I can do whatever. I did another two without the blocks should be a little clearer and easier to fit in a tighter space. This is with twist caps. The only thing is I'm not sure if I've isolated one of the receptacles in the first one. I have a limited knowledge when it comes to electricity and circuits but from what I understand #1 should be fine, not 100% yet.

Thanks for your help.

1. The first receptacle that the incoming wire comes into is my always hot.



2. This is splitting the ground and neutral before the terminal.


Reply With Quote
