Quote:
Originally Posted by ThePig View Post
Don't weld the SS coil to the bulkhead. You'll want to be able to remove the coil for deep cleaning, modification, etc... at a later date. I've taken mine out a few times and modified it to optimize length.

Take it to the welder and have him weld the tube to a matching tri clamp ferrule. Then have him roll that SS as tight as he can and use tri's (even 1/2" sabco tri's) to weld into the bulkhead. You should have enough room to make it fit if the welder can get the coil into a 6-7" roll.
While I think this is a great solution for a 1/2 barrel keg, since the triclamps will be between the coil and the wall, how am I supposed to get even 1 hand in there to open and close it? The diameter of the keg is only 9.25" (think cornie). If I could pull it off with the top one, there's no way to reach the bottom one.

The idea of this chamber was to have as small a volume of water as possible so the temps could be changed quickly. This however creates some challenges however.



Quote:
Originally Posted by diatonic View Post
Yep, that half coupling will work just fine. I bought one last week for my new HLT. I am considering replacing the black rubber seal that came with the element with a high-temp silicone o-ring though.

Thanks! Time for another order of shiny goodness.


Reply With Quote
Old 02-09-2010, 07:37 PM   #12
lustreking

lustreking's Avatar
Recipes

Aug 2006
Bethlehem, PA
Posts: 777
Liked 28 Times on 24 Posts


Why bother going through the sides at all, just run them straight up and out the top?
__________________
My brewing site:
http://brewing.lustreking.com


Reply With Quote
Old 02-09-2010, 08:33 PM   #13
Bigscience

Bigscience's Avatar
Recipes

Sep 2009
Woodinville, WA
Posts: 626
Liked 29 Times on 26 Posts


Quote:
Originally Posted by lustreking View Post
Why bother going through the sides at all, just run them straight up and out the top?
I want the HEX to be mounted to the stand and totally CIP (clean in place). While I could flush a coil that comes in and out the top, there'd be residual fluid left in it. I'd need to remove and invert to drain. Yet another thing to break down.


Reply With Quote
Old 02-09-2010, 08:33 PM   #14
kickflip_mj
Recipes

Jan 2008
Posts: 1,104
Liked 109 Times on 75 Posts


a like this?






Reply With Quote
Old 02-09-2010, 08:40 PM   #15
Bigscience

Bigscience's Avatar
Recipes

Sep 2009
Woodinville, WA
Posts: 626
Liked 29 Times on 26 Posts


Quote:
Originally Posted by kickflip_mj View Post
a like this?

Much like that. What is your volume and length/diameter of the coil and total height? How do you like using it?


Reply With Quote
Old 02-09-2010, 08:47 PM   #16
kickflip_mj
Recipes

Jan 2008
Posts: 1,104
Liked 109 Times on 75 Posts

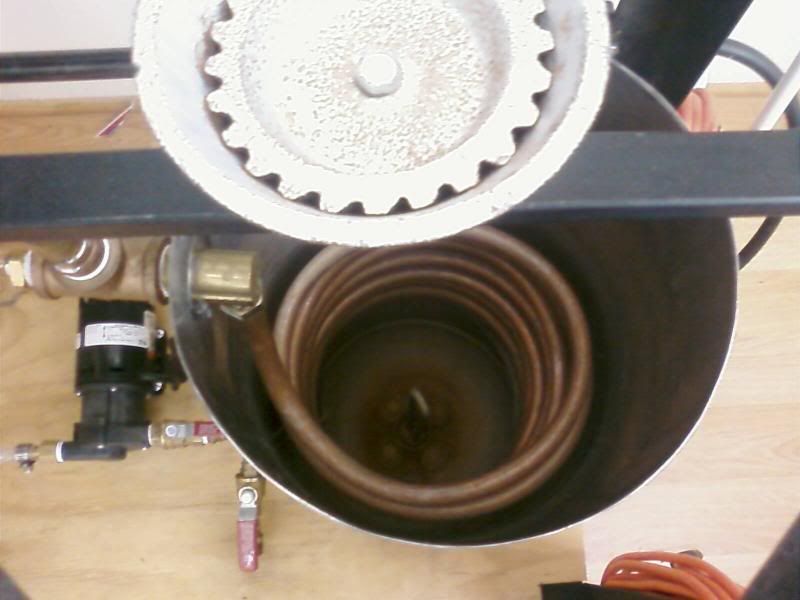

its pretty much a full corny, thats 25' 1/2 copper, 1500 watt element. i really like it and the temp doesnt fluctuate, i can keep a steady 152. i only fill to the top of the coiled part.
i like this design but personally i would rather have a temp controlled lauter tun and just have 3 tanks instead of 4. other than that i love having another fun peice of equipment

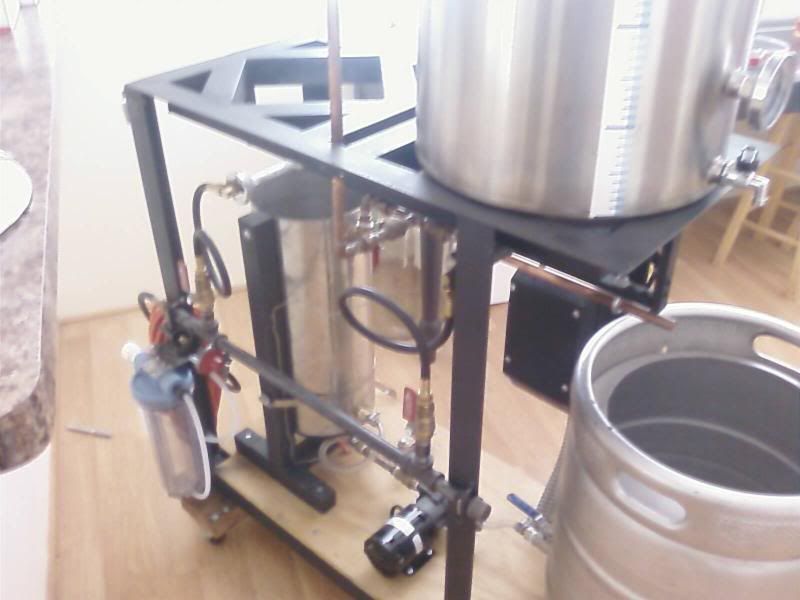

hers an older shot of my stand




Reply With Quote
Old 02-09-2010, 08:50 PM   #17
kickflip_mj
Recipes

Jan 2008
Posts: 1,104
Liked 109 Times on 75 Posts


make note though, to save time i pre heat my water in my boil kettle to 152, also recently i discovered that my efficiency sucks and that is because i did not take in consideration of the temps in my mash tun just the wort coming out of the exchange. i may need to bump the temp up.


Reply With Quote
Old 02-09-2010, 10:43 PM   #18
P-Lay

P-Lay's Avatar
Recipes

Mar 2009
Deltona, FL
Posts: 148

Would two 1/4" coils work? It seems they would be easier to bend to your radius. You could use an adapter to go from (1) 1/2" to (2) 1/4" on both the inlet and outlet. More surface area for better heat exchange too... right?
__________________
Cheers!
P

Quote:
Originally Posted by bad coffee View Post
Why kill when you can OVERKILL!
Quote:
Originally Posted by TheManes View Post
Have you considered drinking more?


Reply With Quote
Old 02-10-2010, 12:33 AM   #19
lustreking

lustreking's Avatar
Recipes

Aug 2006
Bethlehem, PA
Posts: 777
Liked 28 Times on 24 Posts


Quote:
Originally Posted by Bigscience View Post
I want the HEX to be mounted to the stand and totally CIP (clean in place). While I could flush a coil that comes in and out the top, there'd be residual fluid left in it. I'd need to remove and invert to drain. Yet another thing to break down.
Makes perfect sense! Thanks!
__________________
My brewing site:
http://brewing.lustreking.com


Reply With Quote
Old 02-10-2010, 07:00 PM   #20
kickflip_mj
Recipes

Jan 2008
Posts: 1,104
Liked 109 Times on 75 Posts


so i thought i would say on my first design i had the lid still intact and i was able to get the coil in.. but be warned it was hard as hell. i did this so i could close it up and it would not lose alot of heat. i took the top off because i couldn't tighten the compression fitting


Reply With Quote
