Default DIY Spunding Valve

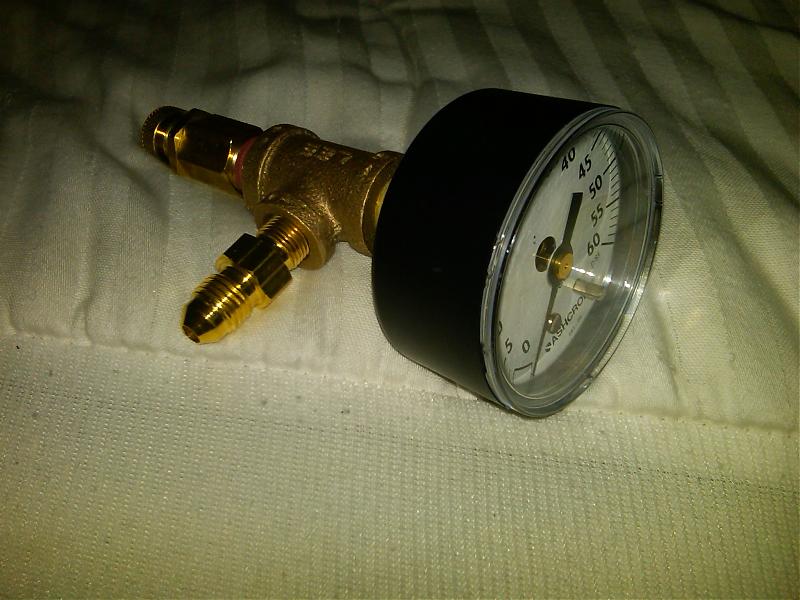

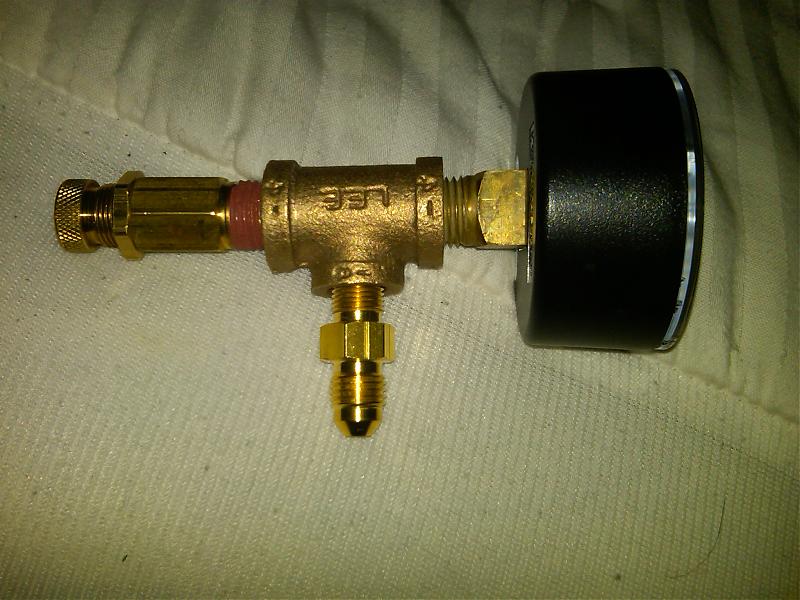

Just got the parts today, it is only rough fit but it looks like its going to work well.

Got all parts from McMaster, including the item numbers here:

48935K25 Pressure Relief Valve 1/4" NPT Male, 0-20 PSI
4089K23 1/4" NPT Male Center Back, 0 - 60 PSI Gauge
4429K223 Low-Pressure Brass Threaded Pipe Fitting 1/4" X 1/8" X 1/4"
50675K161 Brass 37 Degree Flared Tube Fitting Adapter for 1/4" Tube OD X 1/8" NPT Male Pipe

Total cost was about $35, that includes shipping. The relief valve only goes to 20psi, on hindsight I should have gotten something that is capable of up to 40 if I want to carbonate outside of fridge, I can always swap in another valve


Edit:

I found an alternative valve that will allow you to go between 25-200 PSI. This would be great for doing a highly carbonated ale, think Hefeweiss.

http://www.grainger.com/Grainger/items/6D915


Click image for larger version

Name:	IMG00008-20090730-2007.jpg
Views:	3683
Size:	76.8 KB
ID:	12253   Click image for larger version

Name:	IMG00009-20090730-2008.jpg
Views:	3483
Size:	68.8 KB
ID:	12254   Click image for larger version

Name:	IMG00010-20090730-2008.jpg
Views:	3853
Size:	76.0 KB
ID:	12255   Click image for larger version

Name:	IMG00011-20090730-2009.jpg
Views:	3396
Size:	61.6 KB
ID:	12256

Reason: Alternative Valve
dmaraio is offline

Reply With Quote
Old 07-31-2009, 05:42 AM   #2
Scut_Monkey
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Pittsburgh, Pennsylvania
Posts: 2,685
Liked 13 Times on 13 Posts

Default

OK. I had no idea what a spunding valve was until your post. For anyone else who had no idea there is a link below. Seems like a good way to save time allowing carbonation for keggers. Is this what you are using it for (looks like it from the flare fitting)? Didn't know if there was more than one use for it.

P.S. How much did the pressure gauge cost from McMaster? (Ball park figure)

Brew Your Own: The How-To Homebrew Beer Magazine - Projects and Equipment - Build Your Own Spunding Valve to Carbonate in the Keg



Scut_Monkey is offline

Reply With Quote
Old 07-31-2009, 02:11 PM   #3
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 4 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Whitehouse Station, NJ
Posts: 22,827
Liked 1342 Times on 878 Posts
Likes Given: 35

Default

You'd definitely want to grab a pressure gauge off Ebay at a hefty discount.
__________________
Welcome to BrewHardware.com. I love you.
New 100% Stainless Steel Heating Elements are IN! ULWD 5500w Ripple, 2000w, 1500w, etc
Chugger Pumps, Pump Kits, Camlocks, Sightglasses, Clear USA made Silicone Tubing, RIMS, Electric Install Parts, etc.
Bobby_M is offline

Reply With Quote
Old 07-31-2009, 09:12 PM   #4
dmaraio
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Staten Island, NY
Posts: 20
Default

The gauge was $10.28, you could probably do better. It seems like its made well enough. The housing of it is plastic and could break if you stepped on it or dropped it thought.
dmaraio is offline

Reply With Quote
Old 07-31-2009, 09:13 PM   #5
dmaraio
Feedback Score: 0 reviews
Recipes

Join Date: Apr 2009
Location: Staten Island, NY
Posts: 20
Default

And yes, the fitting is 1/4 flare. I will be connecting this to a flare, ball-lock gas disconnect.
dmaraio is offline

Reply With Quote
Old 08-01-2009, 05:50 AM   #6
Scut_Monkey
Feedback Score: 0 reviews
Recipes

Join Date: Jan 2009
Location: Pittsburgh, Pennsylvania
Posts: 2,685
Liked 13 Times on 13 Posts

Default

Thanks for the pricing and info. I was just curious for my kegging needs in the near future.
Scut_Monkey is offline

Reply With Quote
Old 09-25-2010, 11:58 PM   #7
Dgonza9
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Evanston, Illinois
Posts: 1,183
Liked 11 Times on 11 Posts

Default

subscribed.
__________________
On Tap: Belgian Barrel Aged Barleywine, Da Yooper's Oatmeal Stout, Breakfast Stout, Hop Your Face Off IIPA, Catcher in the Rye Saison, "Wino-head" Nelsin Sauvin Gumballhead.

Bourbon Barrel Duchesse De Bourgnone
Kegged:

Fermenting English Mild

on Deck: Lager?
Dgonza9 is offline

Reply With Quote
Old 09-26-2010, 12:25 AM   #8
Germelli1
Feedback Score: 0 reviews
Recipes

Join Date: Jul 2010
Location: Blacksburg/Herndon, VA
Posts: 2,193
Liked 35 Times on 35 Posts
Likes Given: 19

Default

Quote:
Originally Posted by Scut_Monkey View Post
OK. I had no idea what a spunding valve was until your post. For anyone else who had no idea there is a link below. Seems like a good way to save time allowing carbonation for keggers. Is this what you are using it for (looks like it from the flare fitting)? Didn't know if there was more than one use for it.

P.S. How much did the pressure gauge cost from McMaster? (Ball park figure)

Brew Your Own: The How-To Homebrew Beer Magazine - Projects and Equipment - Build Your Own Spunding Valve to Carbonate in the Keg
Thanks! It sounded dirty to me haha
__________________
If I had 8 hours to chop down a tree, I would spend 6 sharpening my axe. ~Abe Lincoln
Germelli1 is offline

Reply With Quote
Old 09-26-2010, 12:37 AM   #9
klyph
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2009
Location: North Pole, Alaska
Posts: 1,809
Liked 39 Times on 35 Posts
Likes Given: 3

Default

I built one for the brewer's hardware sanke fermentor, I need to post some pics.
__________________
10 gallon electric system
Stovetop 110v single vessel 5 gallon system

Primary: saison
Secondary: nada
Conditioning: macaroon stout
Drinking: store bought
klyph is offline

Reply With Quote
Old 09-26-2010, 01:19 AM   #10
Dgonza9
Feedback Score: 0 reviews
Recipes

Join Date: May 2010
Location: Evanston, Illinois
Posts: 1,183
Liked 11 Times on 11 Posts

Default Need help!

Quote:
Originally Posted by klyph View Post
I built one for the brewer's hardware sanke fermentor, I need to post some pics.
I am not sure how I can connect this to my sanke coupler. Does the size flare fitting on the parts list fit the flare nut already on a standard "D" sanke keg coupler?

Thanks.


__________________
On Tap: Belgian Barrel Aged Barleywine, Da Yooper's Oatmeal Stout, Breakfast Stout, Hop Your Face Off IIPA, Catcher in the Rye Saison, "Wino-head" Nelsin Sauvin Gumballhead.

Bourbon Barrel Duchesse De Bourgnone
Kegged:

Fermenting English Mild

on Deck: Lager?
Dgonza9 is offline

Reply With Quote
