Old 02-26-2009, 08:20 PM   #1
TwoHeadsBrewing
Recipes

Feb 2008
Chico, CA
Posts: 3,924
Liked 37 Times on 34 Posts



I've been putting this setup together for a while, and it's just about done. Took some pics during my last brew day (mmmm, Stout!):

15g HLT keggle on the right (all weldless, thermo, sight glass, SS ball valve)
10g cooler in the middle (copper sparge and lautering manifold)
15g Boil keggle on the left (Bazooka t-screen, SS weldless ball valve)


Copper sparge manifold:


Hose clamp on top that I can loosen up to adjust the height of the manifold to the height of my grain bed:

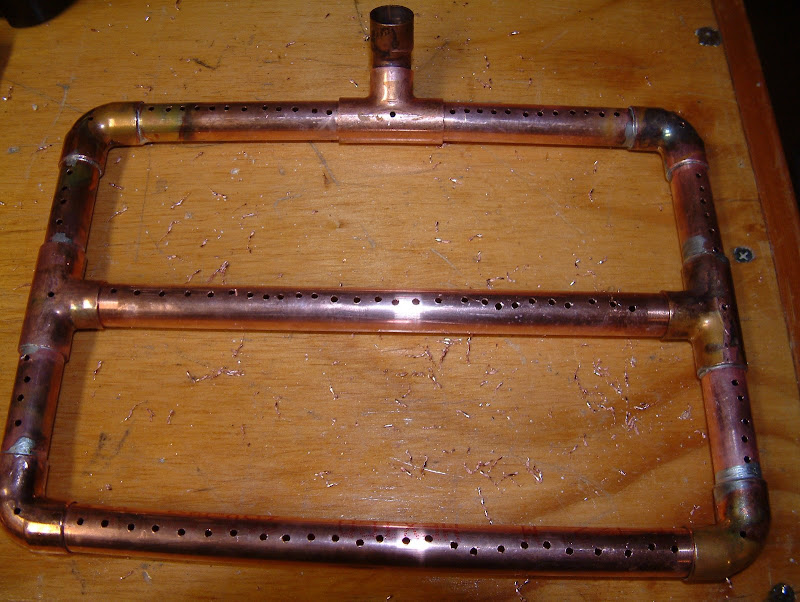

Lautering Manifold:


__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff



Reply With Quote
Old 02-26-2009, 08:22 PM   #2
Coastarine
We get it, you hate BMC.

Coastarine's Avatar
Recipes

Apr 2008
New Bern, NC
Posts: 2,516
Liked 25 Times on 22 Posts


Looks nice! I use a stainless braid for lautering, but have you given any thought to flipping your lauter manifold over so that the holes are on the bottom to reduce the dead space?

edit: sorry, didn't mean to cut you off before you were done posting.


__________________
SEMPER FIDELIS ET SEMPER PARATUS Bringin' the 'pane...the propane.Coming Up:..[Hefewiezen][BCS Robust Porter][EdWort's Haus Pale Ale][Peated Ale]
Fermenting:.
Conditioning:[Oaked Cider][ESB]
On Tap.........[The Munchner][Spiced Cider][English Cider][Simcoe IPA][Triple Hops Grooved][Cider'n 'gnac]



Reply With Quote
Old 02-26-2009, 08:23 PM   #3
TwoHeadsBrewing
Recipes

Feb 2008
Chico, CA
Posts: 3,924
Liked 37 Times on 34 Posts


809HS March pump with quick disconnects and SS Ball Valve:


25' Counter Flow Chiller w/ QD for pump connection:


Fermentation Chamber (holds 3 carboys or 4 buckets):


__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff


Reply With Quote
Old 02-26-2009, 08:24 PM   #4
TwoHeadsBrewing
Recipes

Feb 2008
Chico, CA
Posts: 3,924
Liked 37 Times on 34 Posts


Quote:
Originally Posted by Coastarine View Post
Looks nice! I use a stainless braid for lautering, but have you given any thought to flipping your lauter manifold over so that the holes are on the bottom to reduce the dead space?
Yep, that's how I have it set up. I just took the picture before I put it into my mash tun. Works pretty good with all the holes on the bottom, hardly any deadspace at all.
__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff

JMathie77 Likes This
Reply With Quote
Old 02-26-2009, 08:26 PM   #5
Coastarine
We get it, you hate BMC.

Coastarine's Avatar
Recipes

Apr 2008
New Bern, NC
Posts: 2,516
Liked 25 Times on 22 Posts


Ah ok, I guess I just got the wrong impression from the angle of the output.
__________________
SEMPER FIDELIS ET SEMPER PARATUS Bringin' the 'pane...the propane.Coming Up:..[Hefewiezen][BCS Robust Porter][EdWort's Haus Pale Ale][Peated Ale]
Fermenting:.
Conditioning:[Oaked Cider][ESB]
On Tap.........[The Munchner][Spiced Cider][English Cider][Simcoe IPA][Triple Hops Grooved][Cider'n 'gnac]


Reply With Quote
Old 02-26-2009, 08:31 PM   #6
TwoHeadsBrewing
Recipes

Feb 2008
Chico, CA
Posts: 3,924
Liked 37 Times on 34 Posts


Bazooka t-screen with a DIY copper tube:


HLT outside:

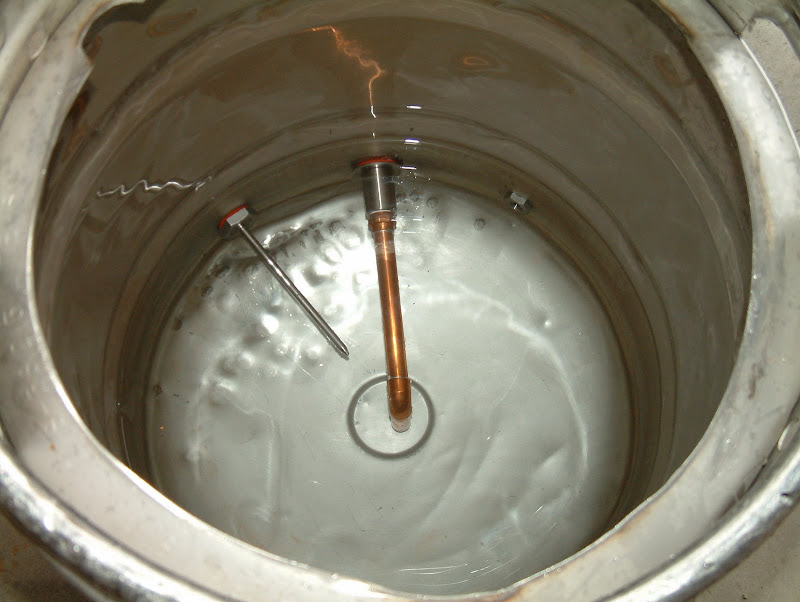

HLT inside:
__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff


Reply With Quote
Old 02-26-2009, 08:33 PM   #7
TwoHeadsBrewing
Recipes

Feb 2008
Chico, CA
Posts: 3,924
Liked 37 Times on 34 Posts


Quote:
Originally Posted by Coastarine View Post
Ah ok, I guess I just got the wrong impression from the angle of the output.
yeah, that joint is not soldered together, so it rotates freely. Makes it really easy to clean out the mash tun, and rinse out the manifold. I soldered a few of them together just for peace of mind.
__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff


Reply With Quote
Old 02-26-2009, 08:47 PM   #8
Mutilated1
Beer Drenched Executioner

Mutilated1's Avatar
Recipes

Jul 2007
Hoover, Alabama USA, Alabama
Posts: 2,150
Liked 39 Times on 27 Posts


Thats a very impressive setup you've got there.

Mind explaining what your fermentation chamber is made of ? Is it just a closet, or do you have some kind of refridgeration built in ?


Reply With Quote
Old 02-26-2009, 08:53 PM   #9
TwoHeadsBrewing
Recipes

Feb 2008
Chico, CA
Posts: 3,924
Liked 37 Times on 34 Posts


Quote:
Originally Posted by Mutilated1 View Post
Thats a very impressive setup you've got there.

Mind explaining what your fermentation chamber is made of ? Is it just a closet, or do you have some kind of refridgeration built in ?

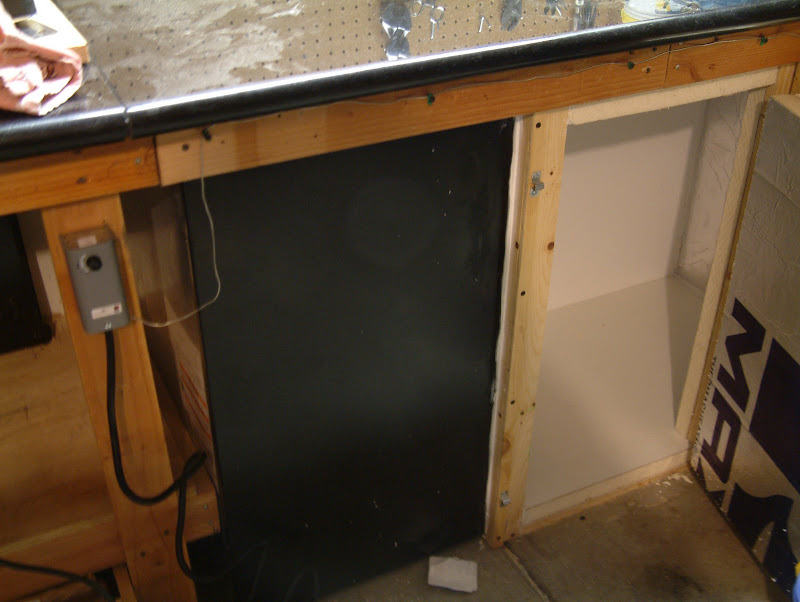

The fermentation chamber is made from an old mini-fridge, with a Johnson controller to maintain temps. Everything went under my workbench in the garage. It's constructed out of pine 1x3's, 1/4" Plywood, 1.5" RMax insulation board, and used some of the existing framing of my workbench. I started a build thread here:

http://www.homebrewtalk.com/f11/new-...-build-102846/

and way more "in progress" pics here:
Picasa Web Albums - Ben - Fermentation ...
__________________

Fermenting: ESB
Kegged: Extra IPA, Brown Ale, American Wheat, Blackheart Stout
Coming Up: Dunkleweizen, 3C Pale Ale


DIY Fermentation Chamber
More Brew Stuff


Reply With Quote
Old 02-26-2009, 10:50 PM   #10
drunkatuw
Recipes

Jul 2007
Rochester, MN
Posts: 624
Liked 7 Times on 5 Posts


Have you noticed consistent fermentation temps in your fermentation chamber? I would be worried that the side with the fridge would be much cooler than the far side?

I have an old dorm fridge sitting in my garage and I'm hoping to convince SWMBO to do something similar to yours.


__________________
On tap: BCB Porter, $12 Cream ale, Amarillo Pale Ale, Simcoe Pale Ale
Kegged: Amarillo Pale Ale, Simcoe Pale Ale, $12 Cream ale
Primary: Calypso Pale Ale (x2)
Secondary:
On Deck: Lake Walk Pale Ale, BCB IPA


Reply With Quote
