Default Inline oxygen system

Testing out the mobile app, but just finished the inline oxygen stone

__________________
mpcluever is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 01:43 AM   #2
mpcluever
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: here
Posts: 606
Liked 36 Times on 31 Posts
Likes Given: 48

Default

Ya that pic didn't come through.

Camlocks from bargainfittings and the stone from Williams Brewing.

__________________
mpcluever is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 01:51 AM   #3
mccumath
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2010
Location: Idaho
Posts: 1,047
Liked 198 Times on 191 Posts
Likes Given: 2

Default

Any other pics? Looks like a great idea! Stone mounted inside the T?

__________________
Put it all in the primary, and let the BeerGods sort it out
mccumath is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 01:55 AM   #4
mpcluever
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: here
Posts: 606
Liked 36 Times on 31 Posts
Likes Given: 48

Default

Kinda hard to see, but without that female end on there, I was able to crank it down just enough that the stone is touching the other side, but screwed in enough that it shouldn't leak.

__________________
mpcluever is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 01:57 AM   #5
mccumath
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2010
Location: Idaho
Posts: 1,047
Liked 198 Times on 191 Posts
Likes Given: 2

Default

Quote:
Originally Posted by mpcluever
Kinda hard to see, but without that female end on there, I was able to crank it down just enough that the stone is touching the other side, but screwed in enough that it shouldn't leak.

http://i83.photobucket.com/albums/j3...-53-33_386.jpg
So the stone fits snugly in the T, and the input O.D. of the stone roughly mates up to the size of the I.D. of the hose barb?
__________________
Put it all in the primary, and let the BeerGods sort it out
mccumath is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 02:05 AM   #6
mpcluever
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: here
Posts: 606
Liked 36 Times on 31 Posts
Likes Given: 48

Default

Sorry, don't quite follow. It's a 1/2" Tee with came locks on both ends so it connects inline with my current system. The stone is kind of wide such that I worry a little bit about flow, but there's enough room going past it that it should be just fine. Looks like a 3/8" barb so I'll use 5/16" bev tubing and put air tool quick connects on such that I can just wrap it up with the Tee on the end and connect it all to the tank as needed.

__________________
mpcluever is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 02:07 AM   #7
mccumath
Feedback Score: 0 reviews
Recipes

Join Date: Dec 2010
Location: Idaho
Posts: 1,047
Liked 198 Times on 191 Posts
Likes Given: 2

Default

Quote:
Originally Posted by mpcluever
Sorry, don't quite follow. It's a 1/2" Tee with came locks on both ends so it connects inline with my current system. The stone is kind of wide such that I worry a little bit about flow, but there's enough room going past it that it should be just fine. Looks like a 3/8" barb so I'll use 5/16" bev tubing and put air tool quick connects on such that I can just wrap it up with the Tee on the end and connect it all to the tank as needed.
How does the stone connect to the barb inside the T? Or does the stone connect directly into the barb on the inside of the fitting?
__________________
Put it all in the primary, and let the BeerGods sort it out
mccumath is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 02:10 AM   #8
mpcluever
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: here
Posts: 606
Liked 36 Times on 31 Posts
Likes Given: 48

Default

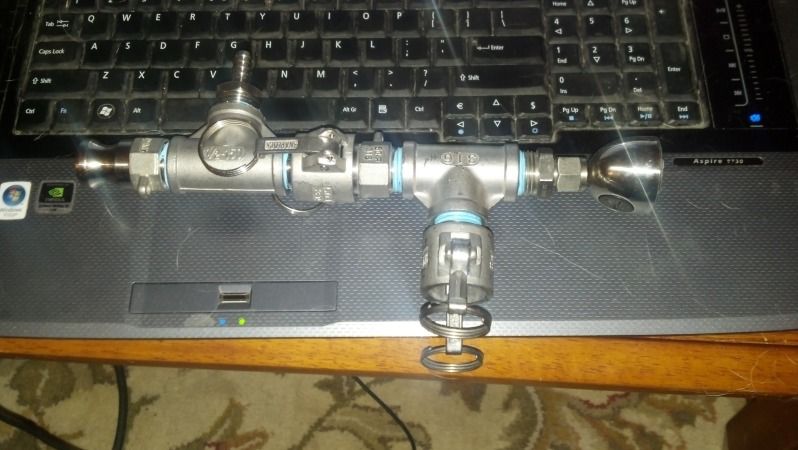

And here's the whole assembly after the chiller.


__________________
mpcluever is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 02:21 AM   #9
mpcluever
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: here
Posts: 606
Liked 36 Times on 31 Posts
Likes Given: 48

Default


__________________
mpcluever is offline

Reply With Quote Quick reply to this message
Old 01-06-2013, 03:30 AM   #10
mpcluever
Feedback Score: 0 reviews
Recipes

Join Date: Jun 2010
Location: here
Posts: 606
Liked 36 Times on 31 Posts
Likes Given: 48

Default

This is the stone

http://www.williamsbrewing.com/12-NP...P3076C106.aspx

__________________
mpcluever is offline
TBaGZ Likes This
Reply With Quote Quick reply to this message
