Default Whats wrong with my flame

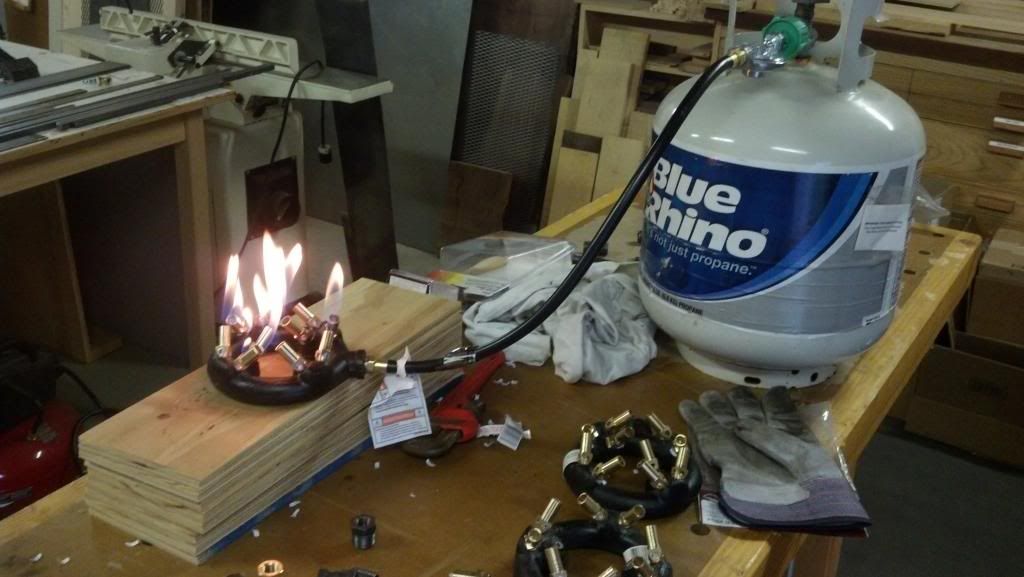

Got my Jet burners in, and wanted to test fire them. I bought these burners, and this regulator. I'm not using any valves at this point. I go straight from the Green Acme connector to the regulator, then a 22" flexible hose right into the burner. I even bought this 2-stage regulator and getting the same results.

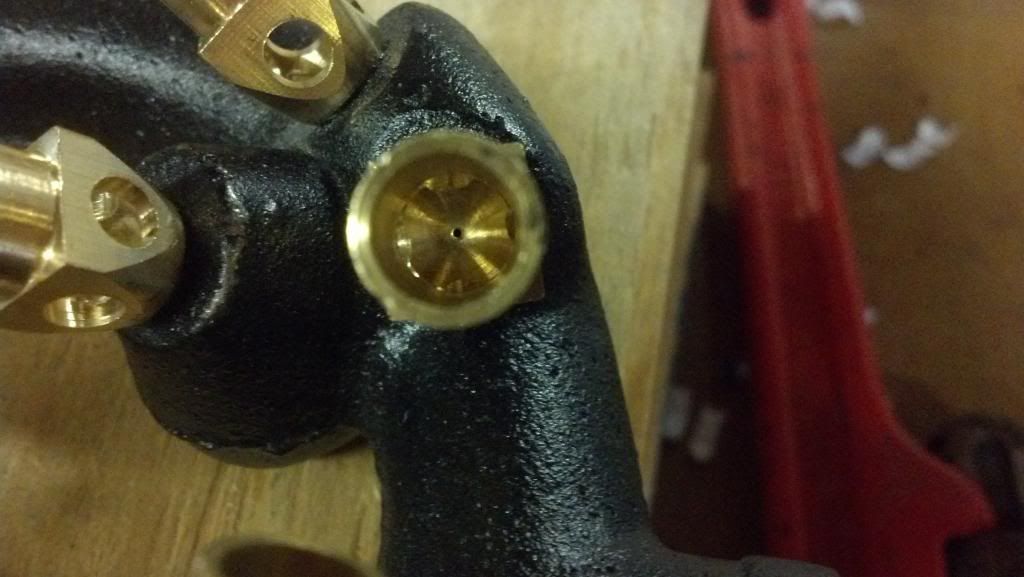

This is a picture looking into a Jet. Can anyone tell me if this is a low pressure jet or a high pressure jet.



Thanks



__________________
khomburg is offline

Reply With Quote Quick reply to this message
Old 05-01-2013, 01:23 AM   #2
Bobby_M
Vendor and Brewer
Vendor Ads
Feedback Score: 1 reviews

Bobby_M's Avatar
Recipes

Join Date: Aug 2006
Location: Piscataway, NJ
Posts: 21,734
Liked 853 Times on 572 Posts
Likes Given: 26

Default

That's a high pressure orifice. Time to get the drill out.



__________________
BrewHardware.com
Sightglass, Refractometer, Ball Valve, Weldless bulkhead, Thermometer, Decals, Stainless Steel Fittings, Compression Fittings, Camlock Quick Disconnects, Scale, RIMS tube, Plate Chiller, Chugger Pump, Super Clear Silicone Tubing, and more!
Bobby_M is offline

Reply With Quote Quick reply to this message
Old 05-01-2013, 01:24 AM   #3
Varmintman
Feedback Score: 0 reviews
Recipes

Join Date: Mar 2012
Location: idaho falls, idaho
Posts: 2,087
Liked 649 Times on 407 Posts
Likes Given: 820

Default

Just a guess but I know the new propane tanks will shut almost off if you use to much fuel to fast. It was either the tanks or the regulators I do not remember now which one governed the flow now.

__________________
Varmintman is offline

Reply With Quote Quick reply to this message
Old 05-01-2013, 01:25 AM   #4
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 8,423
Liked 811 Times on 673 Posts

Default

Simple: you're running a high pressure burner on an 11" WC regulator (which is around .4psi, or the equivalent of household natural gas pressure).

Either all those jets have to be replaced with their low pressure equivalent, or you need to buy a high pressure propane regulator...

Cheers!

__________________
day_trippr is online now

Reply With Quote Quick reply to this message
Old 05-01-2013, 01:54 AM   #5
khomburg
Junior Member
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Richmond, VA
Posts: 16
Liked 1 Times on 1 Posts
Likes Given: 4

Default

Well damn, no matter how much research and due diligence I do, I guess it's inevitable I'd screw something up . I thought I doing so well too . OK so I have to drill them out, or get new burners. If I drill them out myself, what size drill bit would you recommend? Would I drill the to the same size as a BG14 orifice?

__________________
khomburg is offline

Reply With Quote Quick reply to this message
Old 05-01-2013, 02:01 AM   #6
Toymaker
Arrgh!
Feedback Score: 0 reviews

Toymaker's Avatar
Recipes

Join Date: Feb 2012
Location: Livonia, Michigan
Posts: 136
Liked 17 Times on 11 Posts
Likes Given: 5

Default

Here's what you need... http://www.homebrewing.org/10-PSI-Regulator-For-Propane-_p_1725.html

__________________

Cheers,
Gary

Toymaker is offline

Reply With Quote Quick reply to this message
Old 05-01-2013, 02:12 AM   #7
khomburg
Junior Member
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Richmond, VA
Posts: 16
Liked 1 Times on 1 Posts
Likes Given: 4

Default

Quote:
Originally Posted by Toymaker View Post
Thanks Toymaker, I should have mentioned it in my initial post, but I will be using Honeywell gas valves, and already know I need to run and .5 psi or 11" wc. I would prefer not to use an adjustable regulator for this.
__________________
khomburg is offline

Reply With Quote Quick reply to this message
Old 05-01-2013, 02:14 AM   #8
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 8,423
Liked 811 Times on 673 Posts

Default

Quote:
Originally Posted by khomburg View Post
Well damn, no matter how much research and due diligence I do, I guess it's inevitable I'd screw something up . I thought I doing so well too . OK so I have to drill them out, or get new burners. If I drill them out myself, what size drill bit would you recommend? Would I drill the to the same size as a BG14 orifice?
Whoa, Nellie! You definitely do not want to blow a huge hole in ten jets the size of the low pressure orifice on a banjo burner!

Looking around the forums via Google search, I found this thread which suggests using a #75 drill bit on the jets would do the trick.

Cheers!

[edit] If you want to roll your own solution, check out the table on this page, which provides per-element BTUs based on a few low pressure scenarios. Looking at the 11" WC column, you could dial up your desired BTUs for your ten tip burners based on the selected drill size.
__________________
day_trippr is online now

Reply With Quote Quick reply to this message
Old 05-01-2013, 03:11 AM   #9
khomburg
Junior Member
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Richmond, VA
Posts: 16
Liked 1 Times on 1 Posts
Likes Given: 4

Default

Thanks daytrippr, I'll definitely start with the smallest bit sizes

I had found that low pressure chart but also found a high pressure chart at the same site. Both charts use some of the same drill size at the smaller orifice sizes. All this high pressure, low pressure and low pressure that's not really low pressure confuses me

__________________
khomburg is offline

Reply With Quote Quick reply to this message
Old 05-01-2013, 03:19 AM   #10
day_trippr
Feedback Score: 0 reviews
Recipes

Join Date: May 2011
Location: Stow, MA
Posts: 8,423
Liked 811 Times on 673 Posts

Default

fwiw, the tables start with what's likely the smallest practical bit size that will survive the drilling, and from there they just use standard sizes in an incremental fashion on both tables...

Cheers!
